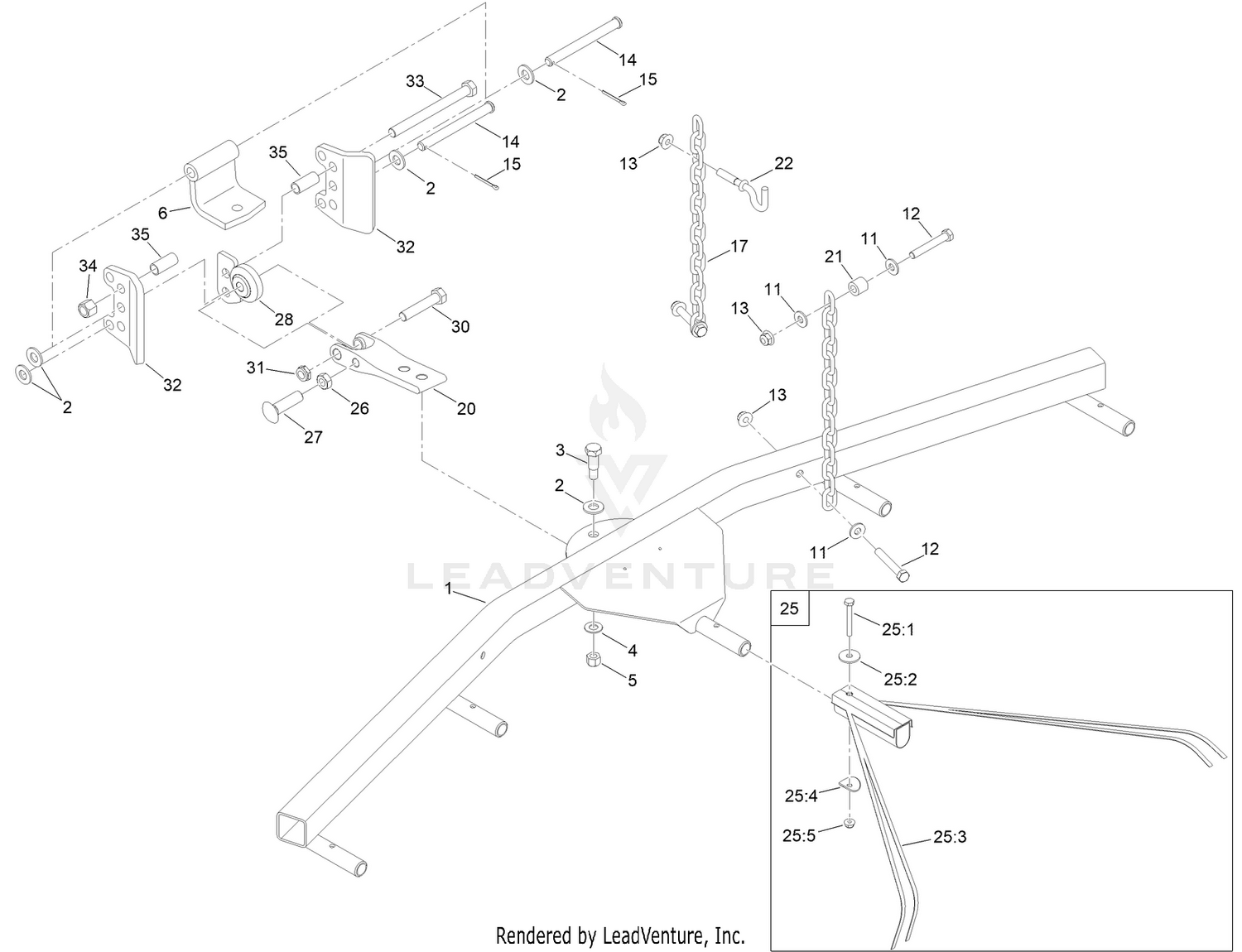

Spring Rake Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-3198-03 | HANGER ASM Price: $536.14 |
| 2 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 3 | 80-2050 | BOLT-SHOULDER Price: $29.15 |
| 4 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 5 | 3296-48 | NUT-LOCK, NI Price: $0.37 |
| 6 | 108-9429-03 | PIVOT ASM Price: $81.48 |
| 11 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 12 | 323-47 | SCREW-HH Price: $1.22 |
| 13 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 14 | 100-5024 | PIN-CLEVIS Price: $7.44 |
| 15 | 3272-12 | PIN-COTTER Price: $0.25 |
| 17 | 84-2452 | CHAIN-14 LINK, STRAIGHT Price: $13.35 |
| 20 | 147-3560 | DRAWBAR-RAKE Price: $24.69 |
| 21 | 121-1760 | SPACER Price: $1.45 |
| 22 | 80-2040 | HOOK Price: $17.21 |
| 25 | 117-4689 | SPRING RAKE KIT Price: $65.49 |
| 26 | 3218-5 | NUT-JAM Price: $0.27 |
| 27 | 3233-14 | SCREW-CARR Price: $1.95 |
| 28 | 138-2228 | HITCH-BALL Price: $56.22 |
| 30 | 325-10 | SCREW-HH Price: $1.82 |
| 31 | 3296-45 | NUT-HEX Price: $3.79 |
| 32 | 120-3499-03 | BRACKET-STOP Price: $23.48 |
| 33 | 325-22 | SCREW-HH Price: $4.26 |
| 34 | 119-8969 | NUT-HEX Price: $1.29 |
