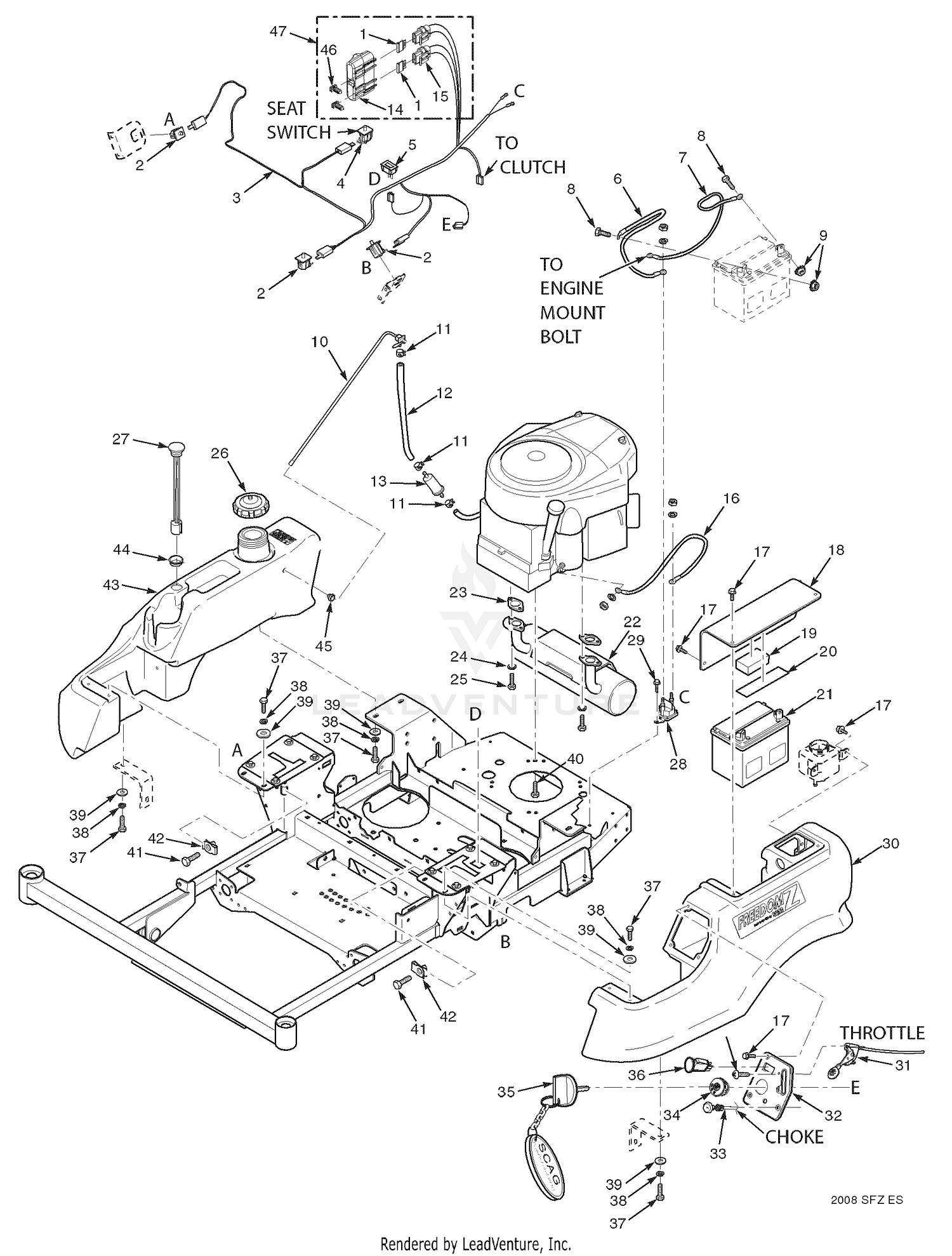

| Ref | Part Number | Description |
|---|
| 1 |
48298 |
Fuse, 20amp Price: Call Us |
| 2 |
483473 |
Switch Price: Call Us |
| 3 |
484433 |
Wire Harness, Main This part replaces 483621. Price: Call Us |
| 4 |
483474 |
Switch, Seat Price: Call Us |
| 5 |
484565 |
Hourmeter, Inductive This part replaces 483537. Price: Call Us |
| 6 |
48029-13 |
Battery Cable, Red 25" Price: Call Us |
| 7 |
48029-11 |
Battery Cable, Black 27" Price: Call Us |
| 8 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 9 |
04020-02 |
Nut, 1/4-20 Price: Call Us |
| 10 |
483555 |
Fuel Tube Assy. Price: Call Us |
| 11 |
48059-01 |
Clamp, Fuel Hose 1/4"ID Price: Call Us |
| 14 |
483571 |
Cover, Sealed Double Price: Call Us |
| 15 |
483629 |
Fuse Holder Price: Call Us |
| 16 |
48029-09 |
Battery Cable, Red 9" Price: Call Us |
| 17 |
04017-04 |
Bolt, Hex Head 1/4-20 x 1/2" Serrated Flange Price: Call Us |
| 19 |
485506 |
Pad, Battery - Rubber This part replaces 483452. Price: Call Us |
| 20 |
483508 |
Rubber Pad Price: Call Us |
| 22 |
483381 |
Muffler, Briggs & Stratton Price: Call Us |
| 26 |
483792 |
Cap, Fuel Tank This part replaces 482547. Price: Call Us |
| 27 |
483523 |
Fuel Gauge Assy. Price: Call Us |
| 28 |
483278 |
Solenoid Price: Call Us |
| 29 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 This part replaces 04011-13. Price: Call Us |
| 30 |
485418 |
TANK, LH SFZ This part replaces 483364. Price: Call Us |
| 32 |
462322 |
INSTR PANEL W/ DECAL, SFZ This part replaces 462036. Price: Call Us |
| 34 |
483472 |
Ignition Switch Price: Call Us |
| 35 |
483366 |
Key, Ignition Price: Call Us |
| 36 |
463034 |
SEALED PTO SWITCH KIT This part replaces 483162. Price: Call Us |
| 37 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 38 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 39 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 40 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" Price: Call Us |
| 41 |
04107-03 |
Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock Price: Call Us |
| 42 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 43 |
462756 |
FUEL TANK ASSY, SFZ This part replaces 462009. Price: Call Us |
| 44 |
483536 |
Grommet Price: Call Us |
| 45 |
482571 |
Bushing, .56" Dia. Viton Price: Call Us |
| 46 |
482588 |
Clip, Wire Price: Call Us |
| 462322 |
INSTR |
PANEL W/ DECAL, SFZ This part replaces 462036. Price: Call Us 462322 |
