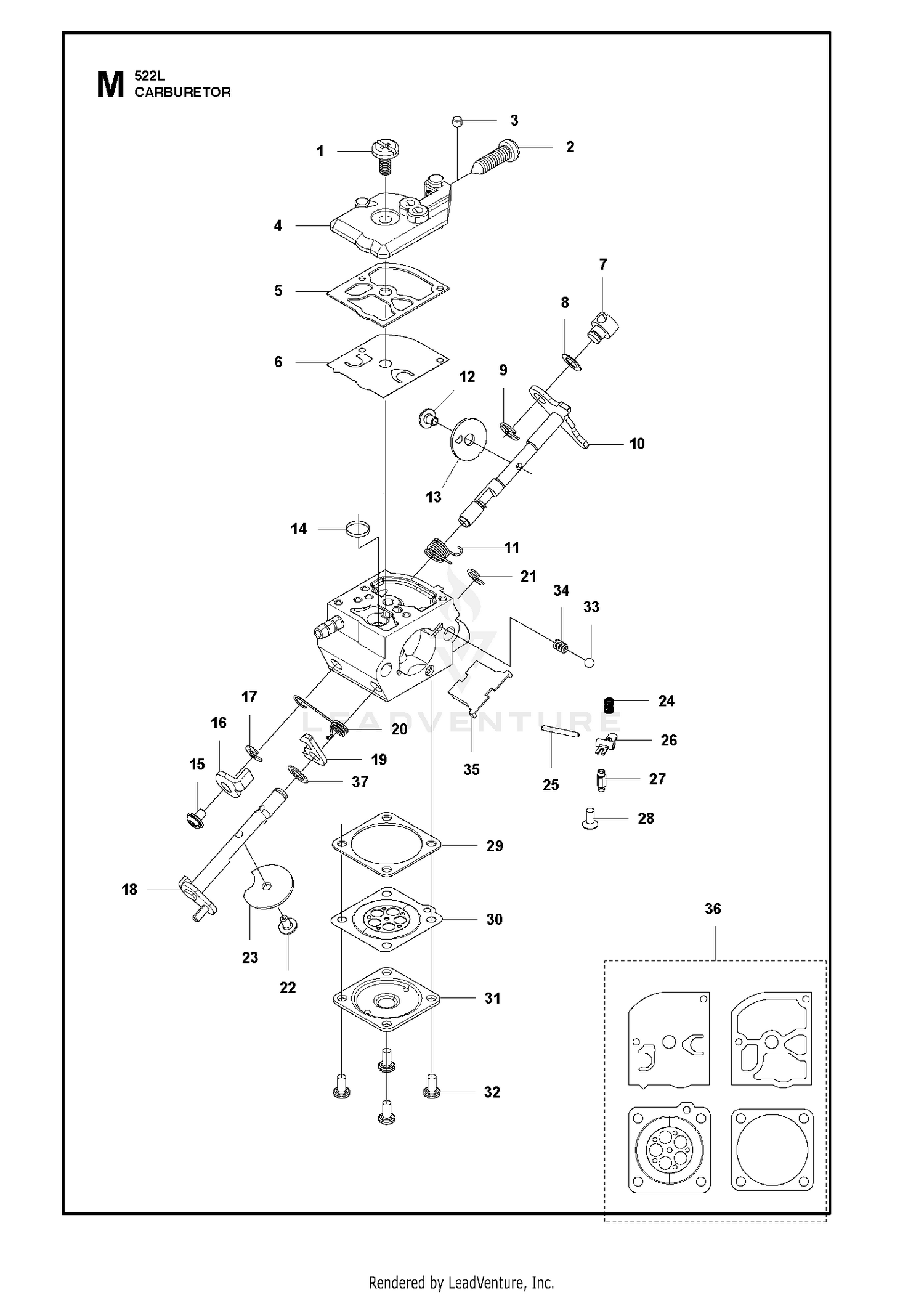

CARBURETOR
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 577899301 | SCREW Price: $2.99 |
| 2 | 579631701 | SCREW Price: $5.99 |
| 3 | 578389701 | PLUG Price: $3.99 |
| 4 | 578389801 | PUMP COVER Price: $12.99 |
| 5 | 577899401 | GASKET PUMP Price: $2.99 |
| 6 | 577899501 | DIAPHRAGM PUMP Price: $5.99 |
| 7 | 586383401 | SWIVEL Price: $6.99 |
| 8 | 577901101 | GASKET Price: $2.99 |
| 9 | 577900401 | E-RING Price: $3.99 |
| 10 | 585319601 | SHAFT ASSY, THROTTLE Price: $9.99 |
| 11 | 577900601 | SPRING THROTTLE RETURN This part replaces 585978901. Price: $3.99 |
| 12 | 577899701 | SCREW Price: $4.99 |
| 13 | 577899601 | VALVE THROTTLE Price: $7.99 |
| 14 | 577900301 | STRAINER Price: $3.99 |
| 15 | 577899701 | SCREW Price: $4.99 |
| 16 | 585319801 | LEVER THROTTLE OUTER Price: $3.99 |
| 17 | 577900401 | E-RING Price: $3.99 |
| 18 | 585319901 | SHAFT ASSY, CHOKE Price: $9.99 |
| 19 | 585979001 | PLATE Price: $11.99 |
| 20 | 585320301 | SPRING Price: $6.99 |
| 21 | 585320201 | RING Price: $2.99 |
| 22 | 577899701 | SCREW Price: $4.99 |
| 24 | 579631801 | SPRING Price: $3.99 |
| 25 | 578390601 | PIN Price: $2.99 |
| 26 | 578390201 | LEVER Price: $3.99 |
| 27 | 579631901 | VALVE INLET Price: $9.99 |
| 28 | 578390301 | SCREW M3X6 Price: $2.99 |
| 29 | 577899901 | GASKET METERING CHAMBER Price: $2.99 |
| 30 | 577900101 | DIAPHRAGM ASSY METERING Price: $6.99 |
| 31 | 577900001 | COVER METERING CHAMBER Price: $11.99 |
| 32 | 577900501 | SCREW M3X7 Price: $2.99 |
| 33 | 577901501 | BALL STEEL Price: $3.99 |
| 34 | 577901601 | SPRING FRICTION Price: $6.99 |
| 35 | 577901001 | PLATE Price: $7.99 |
| 37 | 585319701 | SPACER Price: $3.99 |
