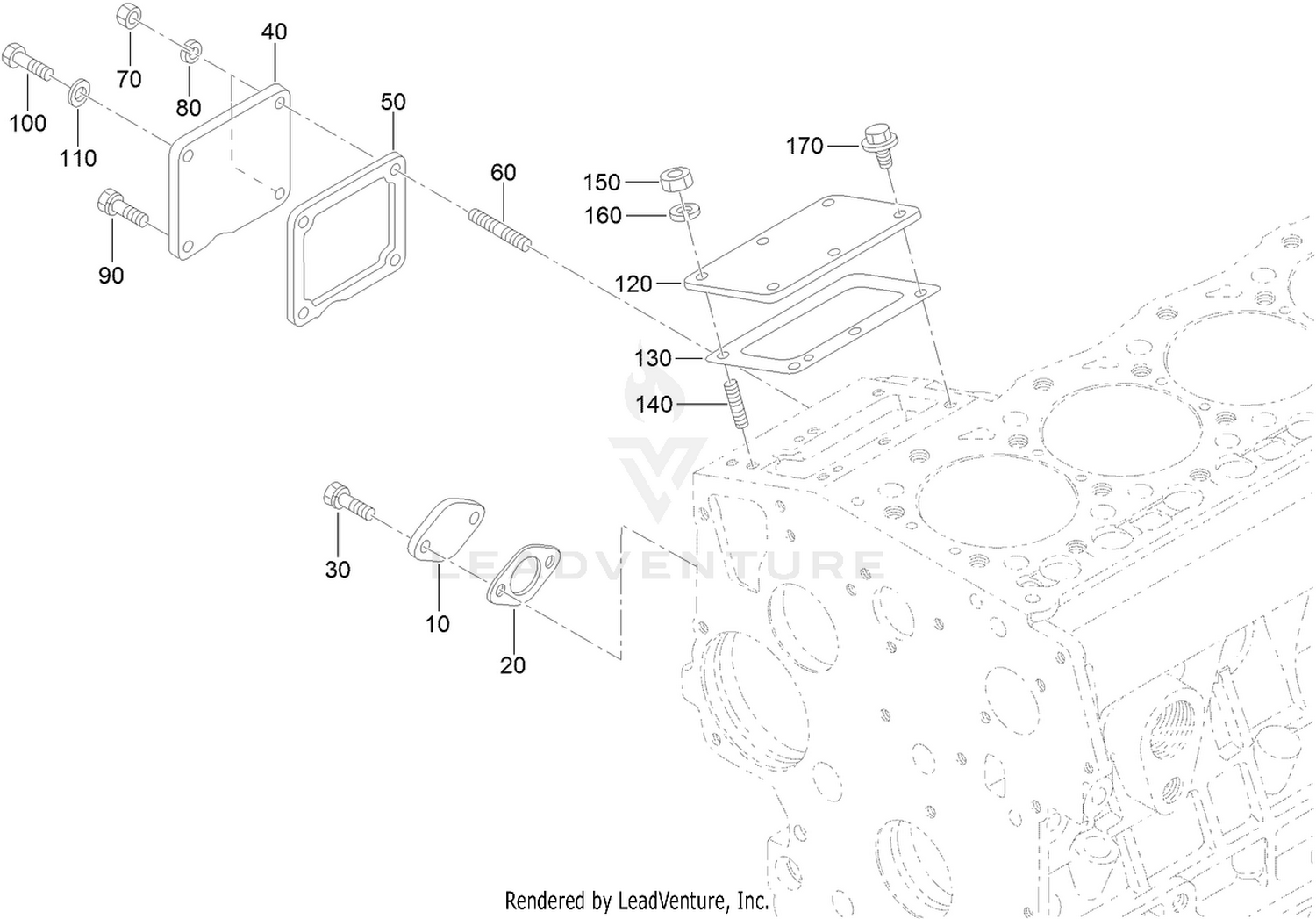

Engine Covers Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 115-4122 | COVER-SHAFT, FORK LEVER Price: $6.97 |
| 20 | 98-9682 | GASKET Price: $0.95 |
| 30 | 98-9350 | BOLT Price: $0.98 |
| 40 | 127-0418 | COVER Price: $14.53 |
| 50 | 98-9637 | GASKET Price: $3.98 |
| 60 | 105-3710 | STUD Price: $1.16 |
| 70 | 98-7572 | NUT Price: $0.32 |
| 80 | 98-7699 | WASHER-SPRING Price: $0.44 |
| 90 | 98-9350 | BOLT Price: $0.98 |
| 100 | 127-0401 | BOLT-HEX Price: $0.39 |
| 110 | 98-7654 | GASKET Price: $8.84 |
| 120 | 127-0465 | COVER-PUMP, INJECTION Price: $11.10 |
| 130 | 105-3728 | SHIM-PUMP, INJECTION (.20MM) Price: $7.35 |
| 140 | 98-9438 | STUD Price: $1.33 |
| 150 | 100-1776 | NUT Price: $0.87 |
| 160 | 98-7699 | WASHER-SPRING Price: $0.44 |
