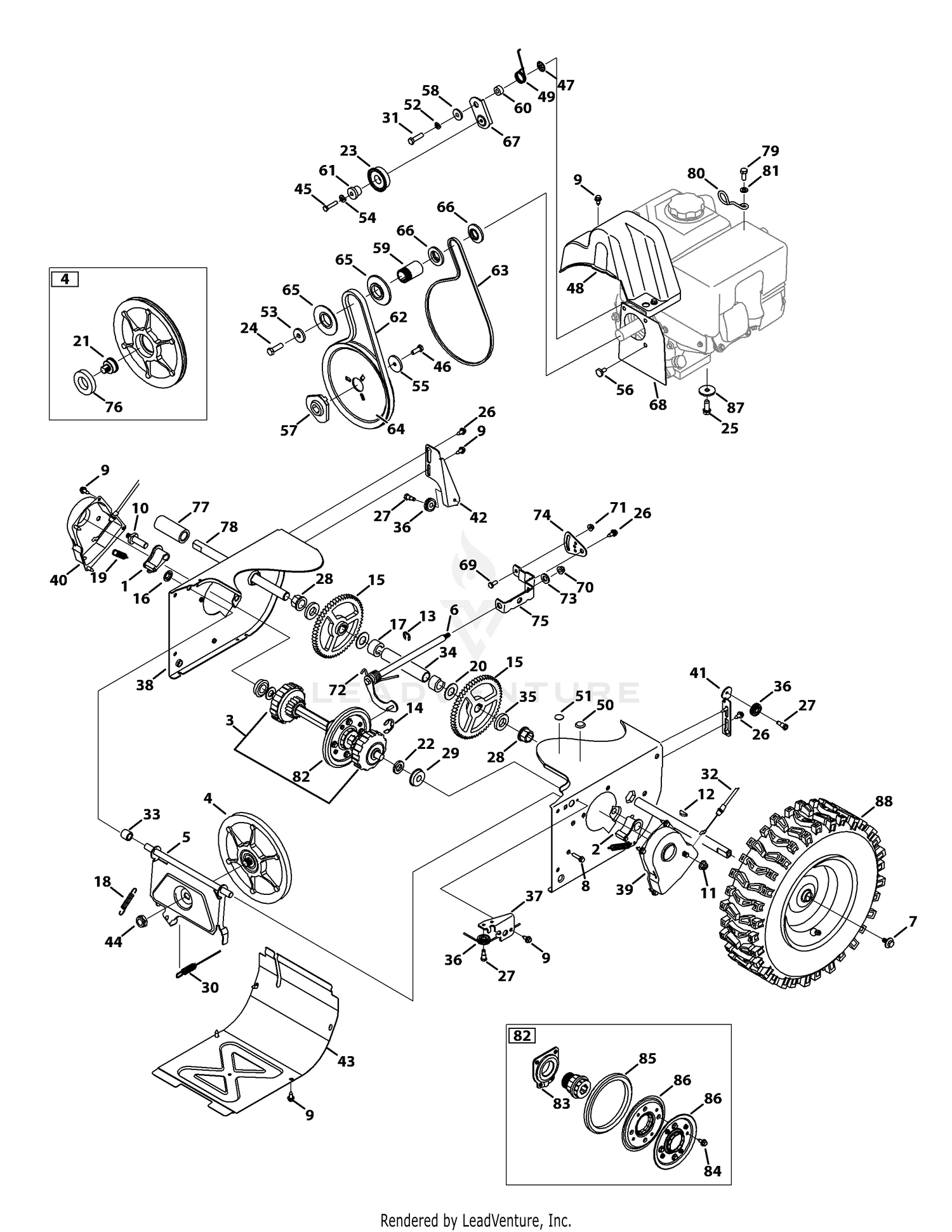

| Ref | Part Number | Description |
|---|
| 1 |
618-06987 |
Dogg Assembly, RH Price: $18.62 |
| 2 |
618-06988 |
Dogg Assembly, LH Price: $18.62 |
| 3 |
918-04322A |
Drive Shaft Assembly (w/.75 diam hex shaft) Price: $434.85 |
| 3 |
918-06072 |
Drive Shaft Assembly (w/.8125 diam hex shaft) Price: $389.97 |
| 4 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04055. Price: $52.47 |
| 5 |
684-04154B-0637 |
Friction Wheel Support Price: $36.47 |
| 6 |
684-04156A |
Rod Shift Assembly Price: $54.39 |
| 7 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 8 |
710-0788 |
Screw, 1/4-20 x 1.000 Price: $6.20 |
| 9 |
710-1652 |
Screw, 1/4-20 x .625 Price: $3.86 |
| 10 |
711-1268B |
Actuator Shaft Price: $8.86 |
| 11 |
712-04065 |
Nut, Flangelock, 3/8-16 Price: $3.68 |
| 12 |
714-0126 |
Key This part replaces 914-0126. Price: $4.05 |
| 13 |
916-0104 |
E-Ring Price: $3.37 |
| 14 |
716-0136 |
Retainer Ring Price: $7.56 |
| 15 |
917-04210 |
Gear, 56T Price: $69.94 |
| 16 |
726-0221 |
Nut, Speed, .500 Price: $5.34 |
| 17 |
731-05297 |
Spacer, .76 x .75 Price: $8.47 |
| 18 |
932-0264 |
Extension Spring, .380 x 2.500 Price: $4.40 |
| 19 |
732-04345 |
Extension Spring, .500 x 1.71 Price: $9.09 |
| 20 |
736-0188 |
Washer, Flat, .76 x 1.49 Price: $3.75 |
| 21 |
738-04164A |
Friction Pin, Disc Bearing Price: $21.61 |
| 23 |
684-04169 |
Pulley Assembly Price: $29.87 |
| 24 |
710-0191 |
Hex Head Screw, 3/8-24 x 1.25 Price: $4.02 |
| 25 |
710-0654A |
Taptite Sems Screw, 3/8-16 x 1.000 Price: $3.75 |
| 26 |
738-04184A |
Screw, Shoulder, .368 x .113 x 1/4-20 Price: $5.99 |
| 27 |
738-0924A |
C Screw, Shoulder, .340 x .335 x 1/4-28 Price: $5.94 |
| 28 |
941-0245 |
Hex Flange Bearing, .75 ID Price: $9.07 |
| 30 |
946-05067 |
Drive Clutch Cable Price: $22.36 |
| 31 |
710-0672 |
Hex Head Screw, 5/16-24 x 1.25 Price: $3.85 |
| 32 |
946-0956C |
Steering Cable Price: $21.54 |
| 33 |
748-0190 |
Spacer, .508 x .75 Price: $5.48 |
| 34 |
750-04474 |
Axle Support Tube Price: $36.90 |
| 35 |
750-0767 |
Spacer, Axle Price: $5.11 |
| 36 |
756-0625 |
Roller Cable Price: $8.52 |
| 37 |
790-00096A-0637 |
Auger Cable Guide Bracket Price: $8.20 |
| 38 |
790-00183E-0637 |
DRIVE FRAME HOUSING (POWDER BLACK) This part replaces 790-00183C-4044. Price: $93.12 |
| 39 |
790-00185-4033 |
Shaft Retainer, LH( w/.75 diam hex shaft) Price: Call Us |
| 39 |
790-00527-4033 |
Shaft Retainer, LH (w/.8125 diam hex shaft) Price: $21.86 |
| 40 |
790-00186-4033 |
Shaft Retainer, RH( w/.75 diam hex shaft) Price: Call Us |
| 40 |
790-00528-4033 |
Shaft Retainer, RH (w/.8125 diam hex shaft) Price: $25.12 |
| 41 |
790-00206B |
AUGER CABLE GUIDE BRACKET This part replaces 790-00206A-0637. Price: $7.40 |
| 42 |
790-00316-4033 |
Drive Clutch Cable Guide Bracket Price: $41.74 |
| 43 |
790-00316-4033 |
Frame Cover Price: $41.74 |
| 44 |
712-0417A |
HEX NUT Price: $6.50 |
| 45 |
710-0809 |
Taptite Screw, 1/4-20 x 1.250 Price: $6.37 |
| 46 |
710-1245B |
Hex Head Screw, 5/16-24 x .875 Price: $7.21 |
| 47 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 48 |
753-09065 |
BELT COVER SERVICE KIT (631-05323) This part replaces 731-06401. Price: $23.85 |
| 49 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308A. Price: $4.42 |
| 50 |
735-04099 |
Plug, 3/8 ID Price: $5.15 |
| 51 |
735-04100 |
Plug, 1/2 ID Price: $5.25 |
| 52 |
936-0119 |
Washer, Lock, 5/16 Price: $4.29 |
| 53 |
736-3082A |
Washer, Flat, .45 x 1.5 Price: $9.09 |
| 54 |
936-0329 |
Washer, Lock, 1/4 Price: $3.90 |
| 55 |
736-0505 |
Washer, Flat, .34 x 1.50 Price: $5.65 |
| 56 |
738-04439 |
SHOULDER SCREW Price: $3.49 |
| 57 |
748-04053A |
Pulley Adapter, .75 DIA Price: $19.41 |
| 58 |
748-04112B |
Spacer, Shoulder, .3175 x .500 Price: $3.60 |
| 59 |
750-04303 |
Spacer, .875 x 1.185 Price: $15.09 |
| 60 |
750-04477A |
Spacer, .340 x .750 Price: $4.53 |
| 61 |
750-04571 |
Spacer, Shoulder, .260 x .785 Price: $6.01 |
| 62 |
954-04195A |
BELT .500 x 37.00 Price: $31.79 |
| 63 |
954-04201A |
V Belt, 3/8 x 35.68" Price: $31.79 |
| 64 |
756-04109 |
Auger Pulley, 8.1 x .5 Price: $47.55 |
| 65 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 66 |
756-04252 |
Pulley, Half, 3/8-V x 1.7160 Price: $5.62 |
| 67 |
790-00208D |
Drive Idler Bracket Price: $7.85 |
| 68 |
790-00332A |
ENGINE PLATE (FRONT COVER) This part replaces 790-00332-0637. Price: $5.41 |
| 69 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 70 |
712-04063 |
Nut, Flangelock, 5/16-18 Price: $3.56 |
| 71 |
712-04064 |
Nut, Flangelock, 1/4-20 Price: $3.64 |
| 72 |
732-04311A |
Spring, Torsion, .750 x .968 Price: $9.09 |
| 73 |
936-3015 |
Washer, Flat, .469 x .875 x .105 Price: $3.89 |
| 74 |
790-00217A |
Speed Selector Pivot Bracket This part replaces 790-00217A-0637. Price: $8.22 |
| 75 |
790-00218A |
Speed Selector Shift Bracket This part replaces 790-00218A-0637. Price: $41.84 |
| 76 |
741-04098 |
Ball Bearing, 30 x 55 x 13 Price: $18.97 |
| 77 |
731-04873 |
Spacer, 1.25 x .75 x 3.00 Price: $8.93 |
| 78 |
938-04180 |
Axle, .75 x 11.12 Price: $62.14 |
| 79 |
710-1681 |
HEX SCREW M8-1.25 x 20 GR8 This part replaces 710-04022. Price: $5.22 |
| 80 |
732-04677 |
Cable Guide Price: $7.87 |
| 81 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 82 |
684-04153C |
Friction Wheel Assembly Price: $89.34 |
| 83 |
618-0063A |
Bearing Assembly, Friction Wheel Price: $80.89 |
| 84 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 85 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 935-04054. Price: $35.10 |
| 86 |
790-00174C |
Friction Wheel Plate Price: $13.09 |
| 87 |
736-0320 |
Washer, Flat, .38 x 1.38 Price: $6.01 |
| 88 |
634Z07695-0662 |
WHEEL ASSEMBLY (16 x 6.5 x 8) (LH) (OYSTER GRAY) This part replaces 634-04136-0911. Price: $197.69 |
