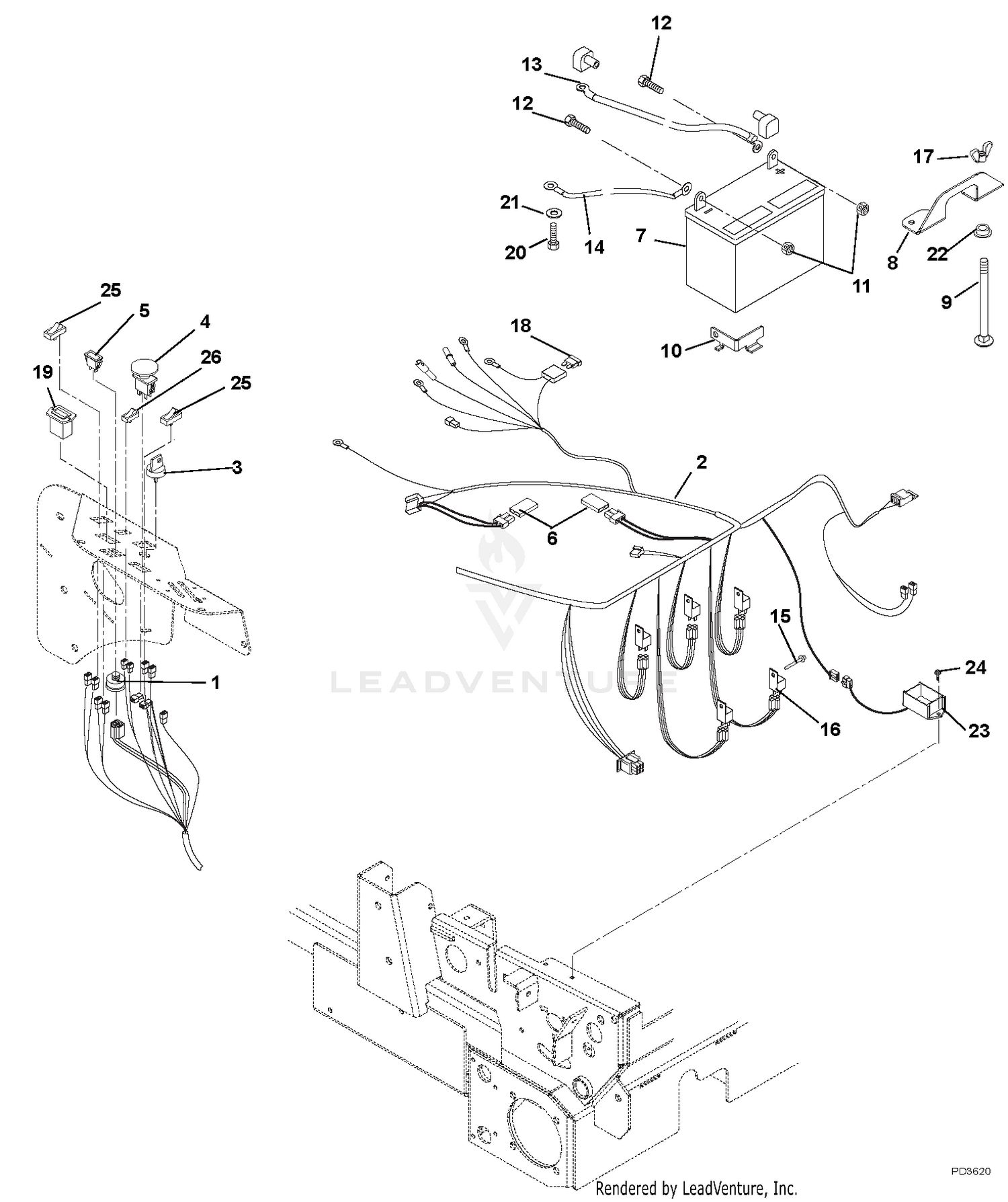

| Ref | Part Number | Description |
|---|
| 1 |
04331600 |
SWITCH, IGNITION This part replaces 00464000. Price: $41.95 |
| 2 |
03286800 |
HARNESS - RAPID XZ HORIZ A/C Price: $384.95 |
| 3 |
09287000 |
KEY, W/ SHIELD Price: $14.95 |
| 4 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 5 |
05128700 |
LIGHT, INDICATOR (RED) This part replaces 08841200. Price: $6.95 |
| 6 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 7 |
01554800 |
BATTERY, 300 CCA 10U1L Price: $47.95 |
| 8 |
00428151 |
HOLDDOWN - BATTERY Price: $17.45 |
| 9 |
06200424 |
BTL,RHSN .250-20 X 7.5 G5 ZCC This part replaces 06226400. Price: $4.45 |
| 10 |
00616451 |
BRACKET, BATTERY POSITION Price: $40.95 |
| 11 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 12 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 13 |
03286900 |
CABLE - POS BATT W/BOOTS 6X35 Price: $30.95 |
| 14 |
03288200 |
CABLE-NEGATIVE BATTERY 35.00" Price: $20.45 |
| 15 |
06800004 |
RIVET, NYLON (.22 HOLE, .19 T) Price: $1.25 |
| 17 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 19 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 21 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 22 |
07027600 |
NUT-PUSH .25X.50 O.D. Price: $1.95 |
| 23 |
00678300 |
ASSY, WT TRNSFR ANGLE SENSOR Price: $216.00 |
| 25 |
00652100 |
SWITCH, DBL POLE DBL THROW Price: $51.95 |
