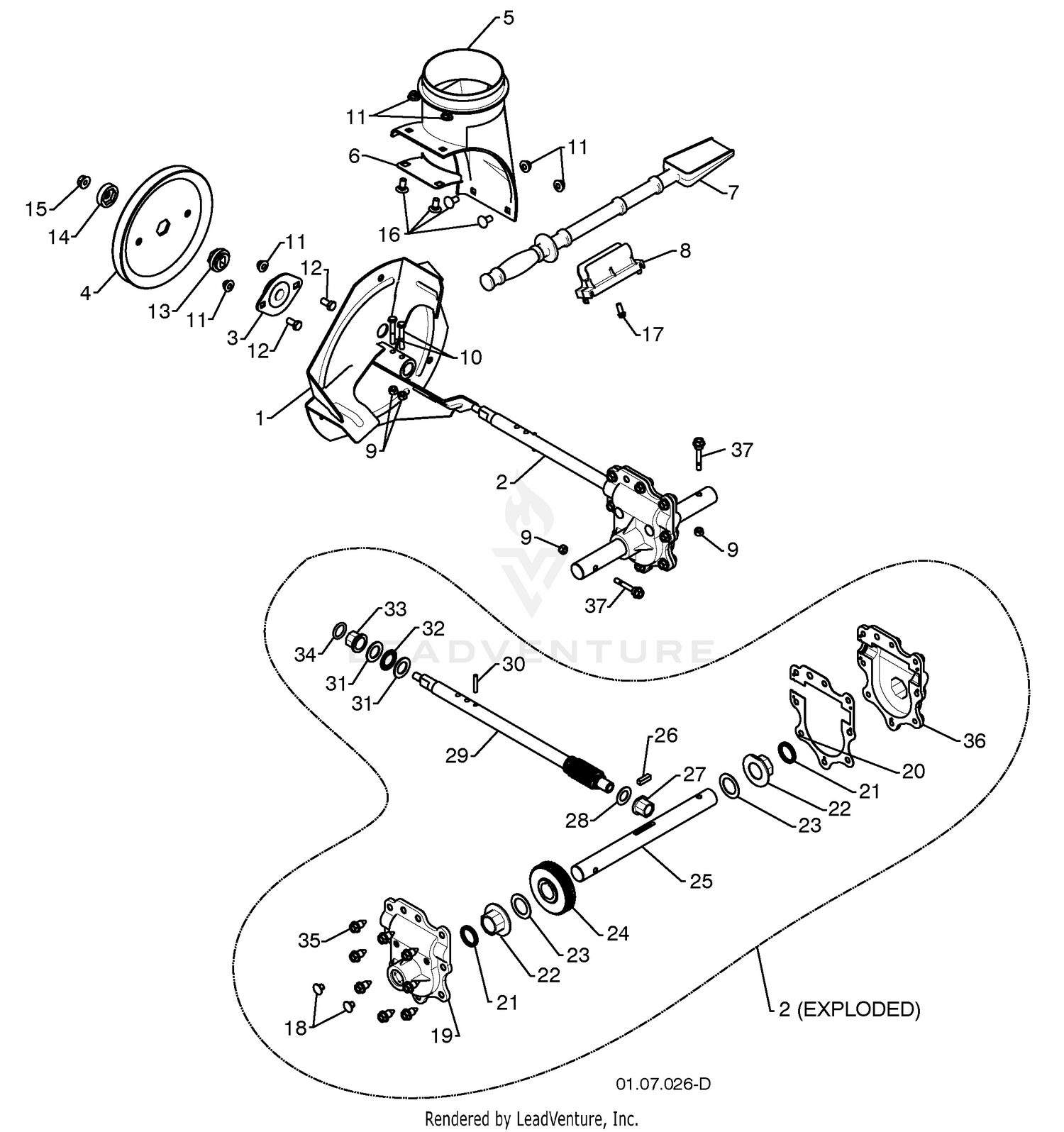

| Ref | Part Number | Description |
|---|
| 1 |
120-6272 |
HYD MOTOR ASM This part replaces 98-9999. Price: $846.73 |
| 1 |
175321X431 |
IMPELLER Price: Call Us |
| 2 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 2 |
427148 |
GEARBOX ASSEMBLY Price: Call Us |
| 3 |
104-0067 |
HYD HOSE ASM Price: $166.60 |
| 3 |
188909 |
BEARING Price: Call Us |
| 4 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 4 |
427146 |
IMPELLER PULLEY Price: Call Us |
| 5 |
175322 |
DISCHARGE BASE Price: Call Us |
| 5 |
94-4918 |
TUBE ASM Price: $90.86 |
| 6 |
104-0058 |
HYD HOSE ASM Price: $119.67 |
| 6 |
178675X008 |
CORNER BRACKET Price: Call Us |
| 7 |
192199 |
CLEAN OUT TOOL Price: Call Us |
| 8 |
100-3714 |
DRAIN TUBE ASM Price: $94.53 |
| 8 |
405400 |
TOOL CLIP Price: Call Us |
| 9 |
104-0068 |
HYD HOSE ASM Price: $208.45 |
| 9 |
73800400 |
NUT 1/4-20 Price: Call Us |
| 10 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 10 |
74780426 |
SCREW 1/4-20 X .625 Price: Call Us |
| 11 |
340-70 |
NUT-LOCK Price: $2.10 |
| 11 |
427942 |
NUT 5/16-18 Price: Call Us |
| 12 |
163183 |
SCREW 5/16-18 X .625 Price: Call Us |
| 12 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 13 |
427145 |
IMPELLER HUB Price: Call Us |
| 13 |
69-8930 |
WASHER Price: $0.81 |
| 14 |
240-5 |
GROMMET Price: $13.66 |
| 14 |
427154 |
IMPELLER SLEEVE Price: Call Us |
| 15 |
69-8960 |
SPACER Price: $5.29 |
| 15 |
73900600 |
NUT 3/8-16 Price: Call Us |
| 16 |
104-0057 |
HYD HOSE ASM Price: $174.49 |
| 16 |
180355 |
CARRIAGE BOLT Price: Call Us |
| 17 |
194189 |
SCREW 13-16 X .625 Price: Call Us |
| 17 |
93-9151 |
FITTING-HYD Price: $40.90 |
| 18 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 18 |
407760 |
PLUG Price: Call Us |
| 19 |
427302 |
GEARBOX COVER RH Price: Call Us |
| 20 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 20 |
427345 |
GASKET Price: Call Us |
| 21 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 21 |
407770 |
SEAL Price: Call Us |
| 22 |
104-0094 |
TUBE ASM Price: $101.62 |
| 22 |
407762 |
BEARING Price: Call Us |
| 23 |
104-0092 |
TUBE ASM Price: $67.18 |
| 23 |
174697 |
THRUST WASHER 1.00 Price: Call Us |
| 24 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 24 |
407763 |
WORM GEAR Price: Call Us |
| 25 |
407764 |
AUGER SHAFT Price: Call Us |
| 26 |
189282 |
SQUARE KEY Price: Call Us |
| 26 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 27 |
100-3713 |
FITTING-HYD, 90 DEG Price: $63.97 |
| 27 |
407758 |
BEARING Price: Call Us |
| 28 |
104-0063 |
HYD HOSE ASM Price: $99.52 |
| 28 |
174683 |
THRUST WASHER Price: Call Us |
| 29 |
104-0069 |
HYD HOSE ASM Price: $164.25 |
| 29 |
427147 |
IMPELLER SHAFT Price: Call Us |
| 30 |
104-0064 |
HYD HOSE ASM Price: $107.98 |
| 30 |
7836M |
ROLL PIN Price: Call Us |
| 31 |
105-4011-03 |
WEIGHT-END Price: $80.71 |
| 31 |
174681 |
THRUST WASHER Price: Call Us |
| 32 |
174684 |
THRUST BEARING Price: Call Us |
| 32 |
93-9783 |
O-RING Price: $2.30 |
| 33 |
407769 |
BEARING Price: Call Us |
| 34 |
108-6716 |
GAUGE-BAR This part replaces 98-1851. Price: $93.45 |
| 34 |
407768 |
O-RING Price: Call Us |
| 35 |
32122-54 |
SCREW-HEAD, TRUSS Price: $2.51 |
| 35 |
407767 |
SCREW 5/16-18 X .750 Price: Call Us |
| 36 |
32103-3 |
NUT-WING Price: $1.22 |
| 36 |
427317 |
GEARBOX COVER LH Price: Call Us |
