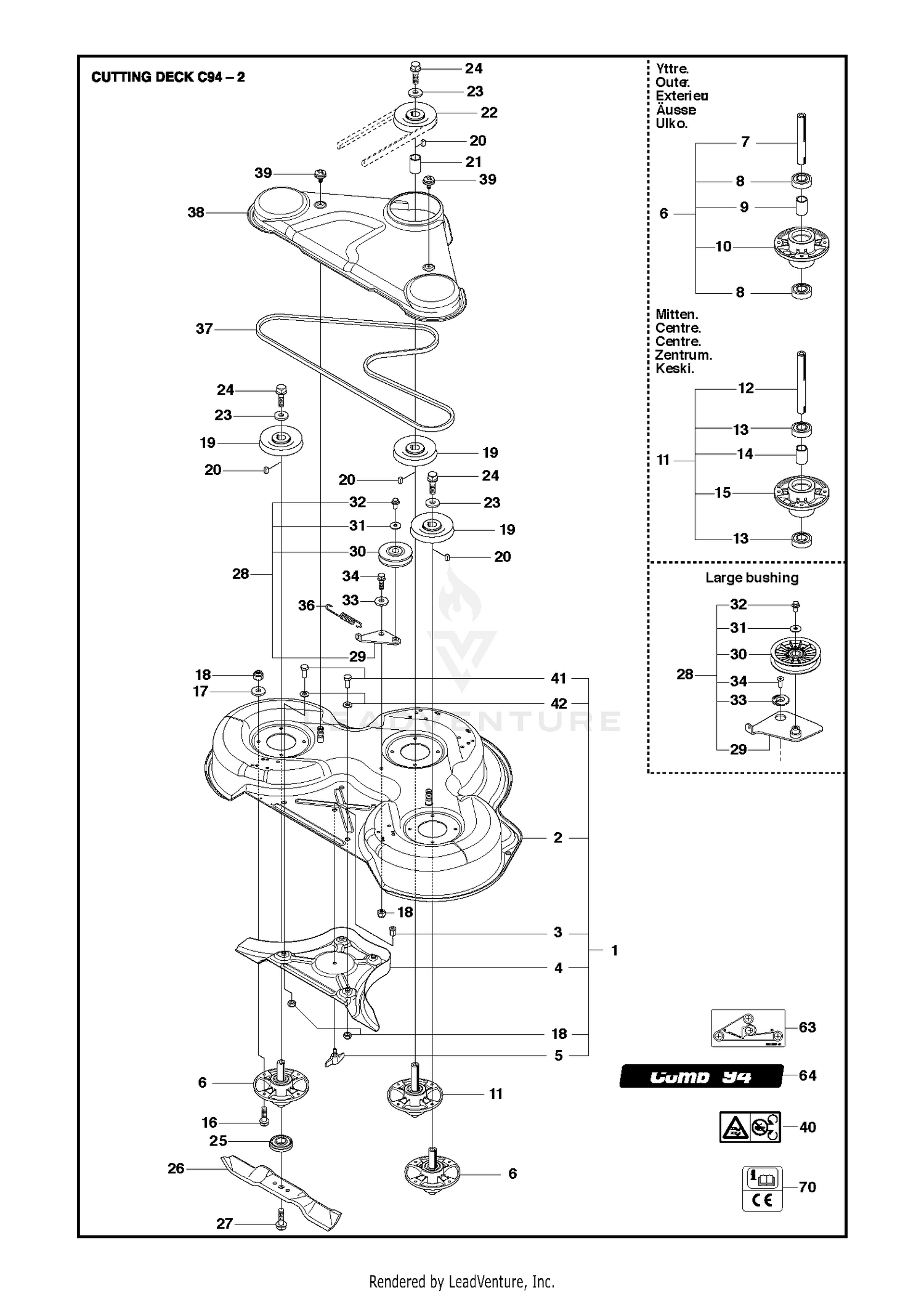

94CM CUTTING DECK 2
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-8447 | CORE-CONDENSER Price: $919.47 |
| 1 | 581265501 | Price: Call Us |
| 2 | 132-3469-03 | LEG-LOWER Price: $49.94 |
| 3 | 32128-44 | NUT Price: $2.69 |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 132-3462-03 | WALL-FRONT Price: $48.43 |
| 4 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 5 | 132-3463-03 | WALL-BACK Price: $48.43 |
| 5 | 544066101 | KNOB Price: $4.99 |
| 6 | 132-3464-03 | WALL-SIDE, RIGHT Price: $24.92 |
| 6 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 7 | 132-3465-03 | WALL-SIDE, LEFT Price: $24.92 |
| 7 | 576384302 | SHAFT Price: $21.99 |
| 8 | 132-3466 | SEAL-STRIP Price: $3.72 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 9 | 132-3467 | SEAL-EDGE Price: $2.87 |
| 9 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 10 | 363-8245 | SCREW-TAP Price: $0.66 |
| 10 | 576384201 | BEARING HOUSING Price: $29.99 |
| 11 | 576384103 | Price: Call Us |
| 12 | 576384303 | Price: Call Us |
| 13 | 738230434 | BEARING Price: $17.99 |
| 14 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 15 | 576384201 | BEARING HOUSING Price: $29.99 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 544068003 | SPACING SLEEVE Price: $12.99 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 506675402 | BOLT Price: $5.99 |
| 25 | 544064901 | BLADE BRACKET Price: $7.99 |
| 26 | 579652510 | BLADE Price: $22.99 |
| 27 | 506675402 | BOLT Price: $5.99 |
| 30 | 581864601 | NEEDS DESCRIPTION Price: Call Us |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589530701 | BELT Price: $49.99 |
| 38 | 522821903 | Price: Call Us |
| 39 | 544400501 | SCREW Price: $3.99 |
| 40 | 574510001 | DECAL Price: $2.99 |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 63 | 506789701 | Decal Price: $21.55 |
| 64 | 544238101 | Price: Call Us |
| 70 | 506929001 | DECAL Price: $3.99 |
