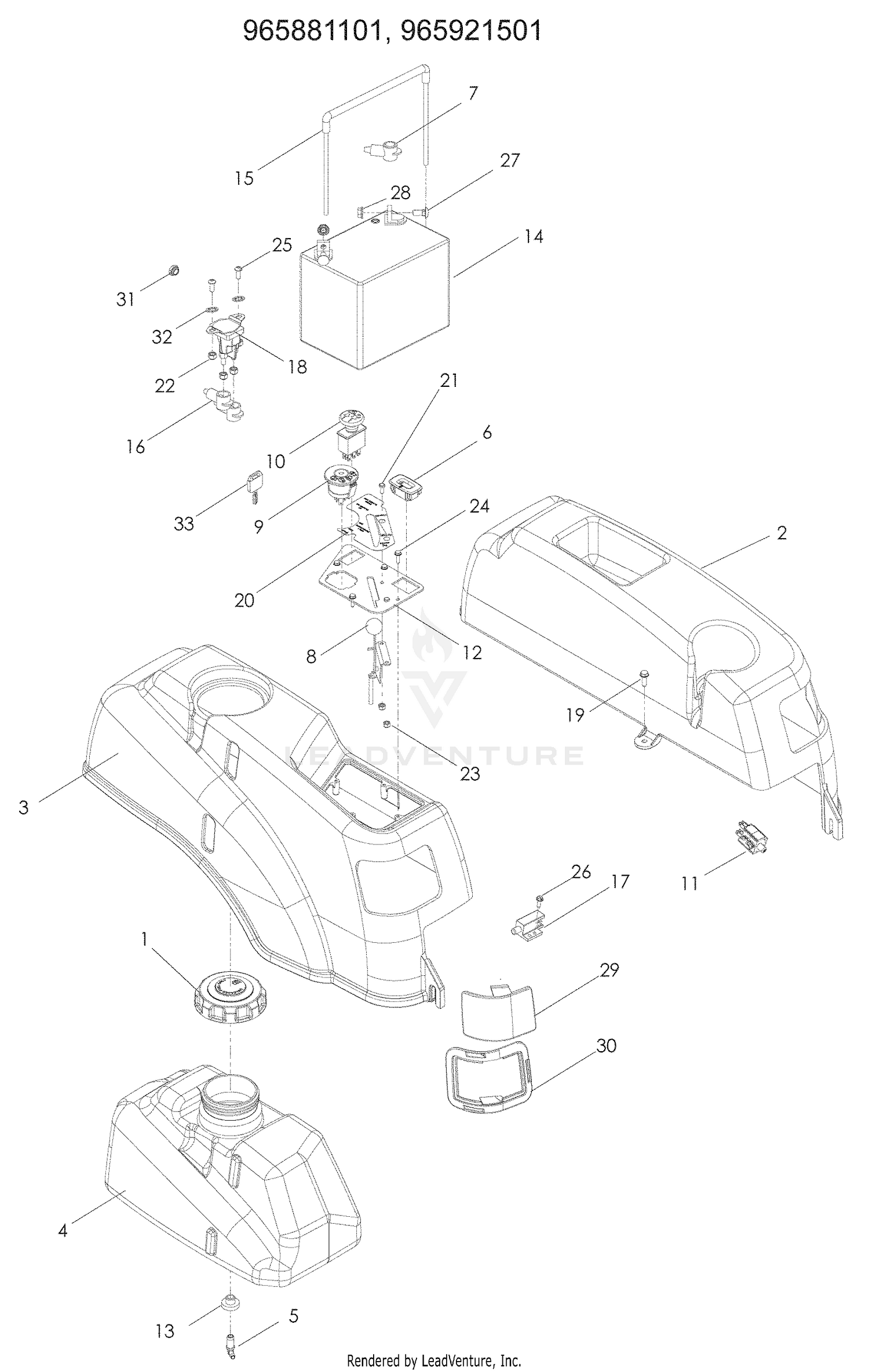

| Ref | Part Number | Description |
|---|
| 1 |
539130393 |
FUEL CAP, HTC Price: $19.99 |
| 1 |
94-5028 |
SEE PB #941 Price: Call Us |
| 2 |
539130374 |
FENDER, LT Price: $74.99 |
| 2 |
93-6881 |
RIM ASM Price: $152.01 |
| 3 |
340-6 |
FITTING-STRAIGHT Price: $18.79 |
| 3 |
539130375 |
RP.FENDER, RT Price: $44.99 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 4 |
539110252 |
FUEL TANK Price: $74.99 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 5 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 6 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 6 |
576179401 |
HOUR METER This part replaces 539110074. Price: $27.99 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 7 |
539102759 |
INSULATOR Price: $3.99 |
| 8 |
522730101 |
CABLE, THROTTLE Price: $24.99 |
| 8 |
75-9990 |
HYD MOTOR ASM Price: $831.33 |
| 9 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 9 |
93-6782-01 |
FORK-WHEEL, REAR This part replaces 93-6782. Price: $916.89 |
| 10 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 10 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99 |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 11 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 12 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
539110305 |
PLATE.CONTROL.CONSOLE.BLACK Price: $27.99 |
| 13 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 13 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 14 |
322-9 |
SCREW-HH Price: $3.09 |
| 14 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 15 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 15 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 16 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 16 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 17 |
325-6 |
SCREW-HH Price: $1.42 |
| 17 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
539101714 |
SOLENOID Price: $22.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 20 |
539110077 |
DECAL, IGNITION CONSOLE Price: $2.99 |
| 20 |
69-9760 |
COVERPLATE Price: $5.38 |
| 21 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 21 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 22 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 23 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 23 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 24 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 24 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 25 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 25 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 26 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 26 |
93-6843 |
HYD HOSE ASM Price: $194.30 |
| 27 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 27 |
61-2070-03 |
TUBE-STEERING This part replaces 61-2070. Price: $89.00 |
| 28 |
237-30 |
O-RING Price: $2.50 |
| 28 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 29 |
539110457 |
LEFT HEADLIGHT LENS This part replaces 539110056. Price: $4.99 |
| 30 |
539110455 |
LEFT HEADLIGHT RIM GREY Price: $4.99 |
| 31 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 32 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA This part replaces 539107544. Price: $5.99 |
| 539110451 |
RT |
HEADLIGHT RIM GREY Price: $4.99 539110451 |
| 539110453 |
RT |
HEADLIGHT LENS This part replaces 539110057. Price: $4.99 539110453 |
