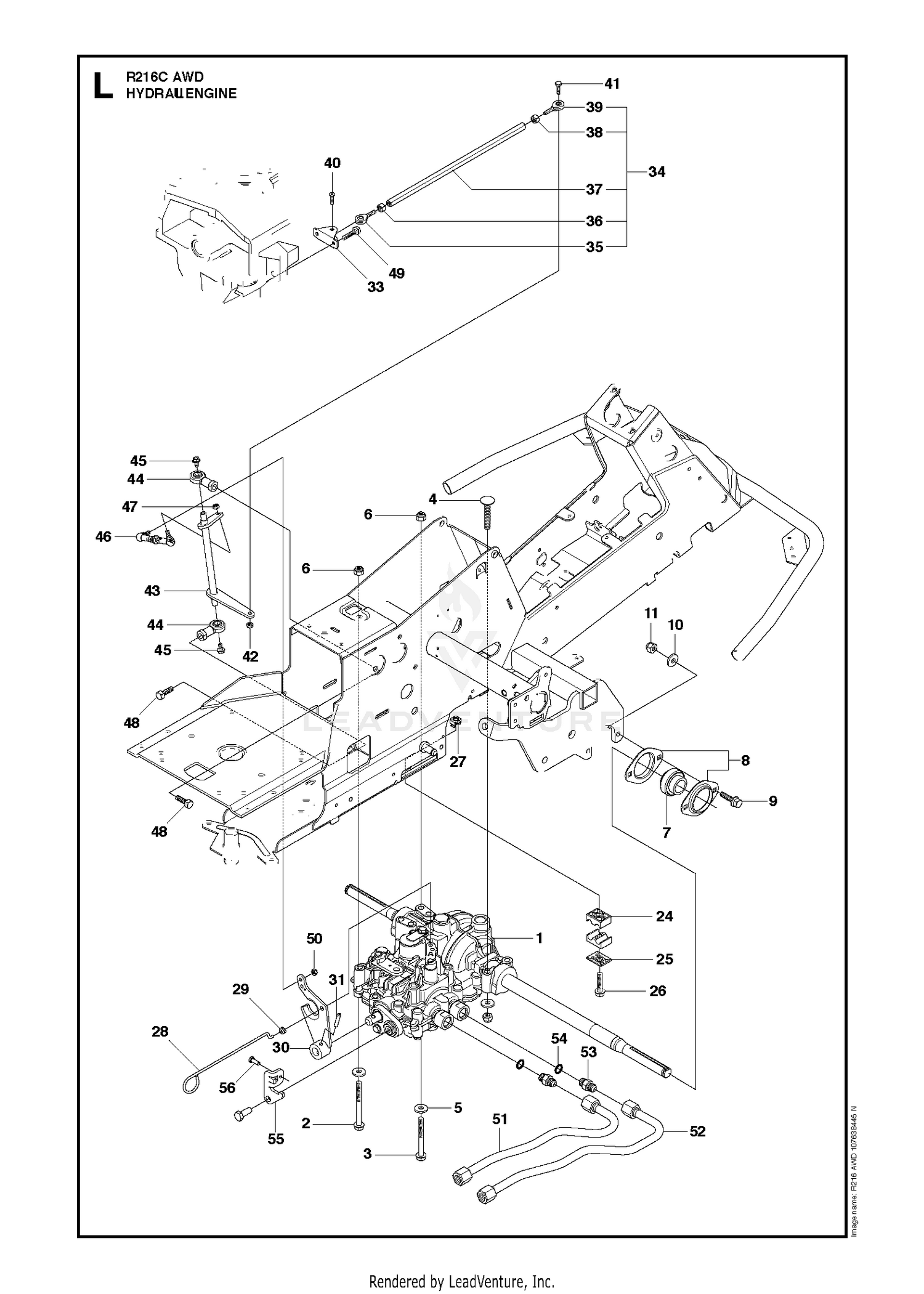

HYDRAUL ENGINE
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-6203 | CONTROL KIT Price: $3,452.34 |
| 1 | 575484301 | TRANSMISSION SWE Price: $1,199.99 |
| 2 | 132-6204 | COIL KIT Price: $736.78 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 136-4397 | CHARGE RELIEF KIT Price: $86.77 |
| 3 | 725246451 | SCREW Price: $5.99 |
| 4 | 535423803 | SCREW Price: $3.99 |
| 5 | 136-4399 | SHAFT Price: $425.69 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 6 | 75-0460 | BEARING-BALL Price: $175.71 |
| 7 | 125-5280 | RING-RETAINING Price: $11.40 |
| 7 | 544008902 | BEARING Price: $64.99 |
| 8 | 131-8616 | RING-RETAINING Price: $16.97 |
| 8 | 544009002 | BEARING HOUSING Price: $22.99 |
| 9 | 127-6214 | SEAL-LIP Price: $131.03 |
| 9 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 10 | 136-4398 | VALVE PLATE Price: $462.40 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 11 | 132-6206 | O-RING Price: $7.73 |
| 11 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 12 | 125-5288 | O-RING Price: $34.23 |
| 13 | 131-7388 | O-RING Price: Call Us |
| 14 | 125-5274 | SCREW Price: $8.89 |
| 15 | 125-5302 | PLUG Price: $25.48 |
| 16 | 125-5273 | NUT-SEAL Price: $21.58 |
| 17 | 125-5272 | SCREW Price: $9.02 |
| 18 | 125-5283 | GASKET-CONTROL Price: $41.13 |
| 19 | 125-5269 | RING-LOCKING Price: $4.61 |
| 20 | 125-5266 | SCREEN Price: $35.26 |
| 21 | 125-5282 | SCREW Price: $9.84 |
| 22 | 125-5270 | SCREW Price: $9.02 |
| 23 | 125-5298 | O-RING Price: $1.68 |
| 24 | 544373302 | PIPE CLAMP Price: $3.99 |
| 24 | 92-1353 | SHIM KIT Price: $36.78 |
| 25 | 125-5301 | PLUG Price: $56.91 |
| 25 | 544373802 | COVER PLATE Price: $4.99 |
| 26 | 506570107 | SCREW EHHFM Price: $5.99 |
| 26 | 75-0240 | O-RING Price: $2.36 |
| 27 | 544811701 | CAGE NUT Price: $3.99 |
| 27 | 84-0560 | O-RING Price: $4.73 |
| 28 | 535499701 | ARM Price: $8.99 |
| 28 | 69-3080 | PLUG Price: $40.47 |
| 29 | 503735801 | FUEL TANK BUSHING Price: $5.99 |
| 29 | 69-3130 | PLUG Price: $62.97 |
| 30 | 578291901 | LEVER Price: $10.99 |
| 30 | 75-0170 | PLUG-THREAD, STRAIGHT Price: $18.20 |
| 31 | 125-5270 | SCREW Price: $9.02 |
| 31 | 721434701 | PIN Price: $2.99 |
| 32 | 110-6485 | PIN-SLOTTED Price: $1.97 |
| 33 | 136-4393 | VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 34 | 136-4392 | VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 34 | 593959403 | NEEDS DESCRIPTION This part replaces 544456703. Price: $74.99 |
| 35 | 132-6205 | OVERHAUL SEAL KIT Price: $239.18 |
| 35 | 535486602 | LINK Price: $64.99 |
| 36 | 503221018 | NUT Price: $2.99 |
| 37 | 535486503 | ROD Price: $37.99 |
| 38 | 731231601 | NUT Price: $2.99 |
| 39 | 535486601 | LINK Price: $54.99 |
| 40 | 544841701 | SCREW Price: $2.99 |
| 41 | 725237071 | SCREW Price: $3.99 |
| 42 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 43 | 535497402 | LEVER Price: $22.99 |
| 44 | 506951701 | LINK Price: $39.99 |
| 45 | 535475212 | SCREW EHHFM Price: $2.99 |
| 46 | 544441901 | ADJUSTING ROD Price: $17.99 |
| 47 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 48 | 725249371 | Screw M10x25 Price: $1.82 |
| 49 | 725236651 | SCREW Price: $2.99 |
| 50 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 51 | 544808001 | HYDRAULIC PIPE Price: $49.99 |
| 52 | 544807901 | HYDRAULIC PIPE Price: $54.99 |
| 53 | 535426806 | PIPE FITTING Price: $17.99 |
| 54 | 505451101 | O-RING Price: $3.99 |
| 55 | 578047801 | BRACKET Price: $2.99 |
| 56 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
