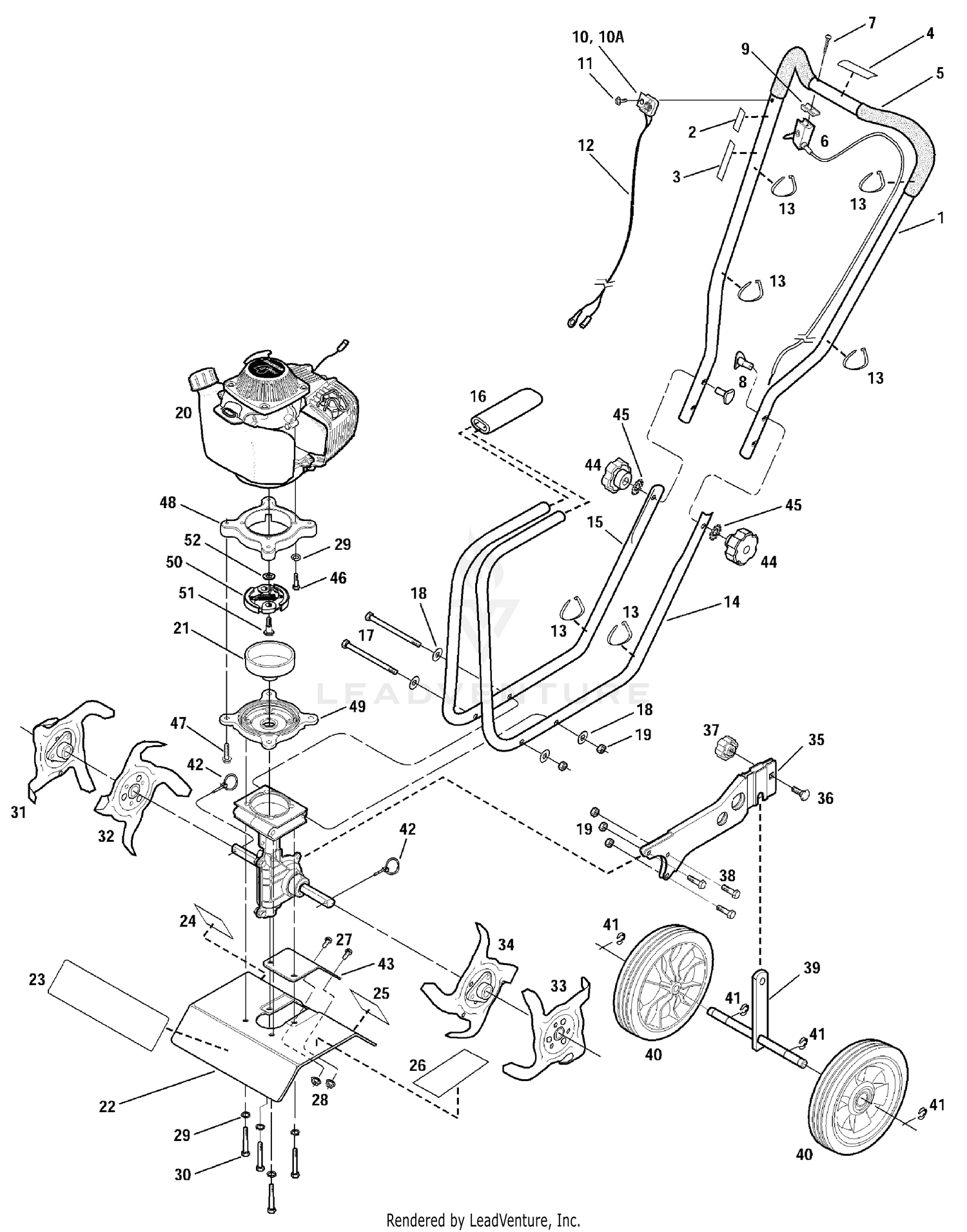

| Ref | Part Number | Description |
|---|
| 2 |
1909936 |
DECAL-OFF/ON Not Available Price: |
| 3 |
1909939 |
DECAL-STABILIZE/ST Not Available Price: |
| 4 |
1918221 |
Decal - Throttle/Tines Control Lever Operation Price: Call Us |
| 5 |
1917451 |
HANDLEBAR GRIP, PVC Not Available Price: |
| 6 |
1917755P |
THROTTLE CABLE This part replaces 1917755. Price: $30.15 |
| 7 |
1750608 |
SCR-PH M10 Not Available Price: |
| 8 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1731025. Price: $6.28 |
| 9 |
1909775 |
SPACER-THROTTLE CO Not Available Price: |
| 10 |
1983718 |
IGN. SWITCH 96 Not Available Price: |
| 10A |
1981012001 |
SWITCH BRACKET AS/850 Not Available Price: |
| 11 |
1766503 |
SCR-PH M12 Not Available Price: |
| 12 |
1918051 |
WIRE HARNESS Not Available Price: |
| 14 |
1917576001 |
HANDLEBAR-LOWER LT Not Available Price: |
| 15 |
1917575001 |
HANDLEBAR-LOWER RT Not Available Price: |
| 16 |
1909720 |
GRIP-LOWER H/BAR Not Available Price: |
| 17 |
1983663 |
SCREW 1/4- Not Available Price: |
| 18 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 19 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. This part replaces 1817146. Price: $3.38 |
| 21 |
718-04039 |
CLUTCH DRUM Not Available This part replaces 1917531. Price: |
| 23 |
1917773 |
DECAL-LOGO 12216 Not Available Price: |
| 24 |
1904553 |
DECAL-WARNING ANSI Not Available Price: |
| 25 |
1904549 |
DECAL-WARNING Not Available Price: |
| 26 |
1904552 |
DECAL-CAUTION ANSI Not Available Price: |
| 27 |
1186292 |
SCR-HFLK 1 Not Available Price: |
| 28 |
1186387 |
NUT-HFLK 10-24 Not Available Price: |
| 29 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 30 |
1100807 |
SCR-HH 1/4 Not Available Price: |
| 31 |
1909540 |
BOLO TINE RIGHT OUTER Not Available Price: |
| 32 |
1909539 |
ASSEMBLY-BOLO RT INNER Not Available Price: |
| 33 |
1909712 |
ASSEMBLY-BOLO LT OUTER Not Available Price: |
| 34 |
1909711 |
ASSEMBLY-BOLO LT INNER Not Available Price: |
| 35 |
1909680001 |
ASSEMBLY-WHEEL BRACKET Not Available Price: |
| 36 |
90077 |
Carriage Bolt Price: Call Us |
| 37 |
1909835 |
KNOB 5/16-18 INSERT Not Available Price: |
| 38 |
1100069 |
Hex Hd. Screw, 1/4-20 x 1 Price: $3.66 |
| 39 |
1909517001 |
AXLE Not Available Price: |
| 40 |
1909853 |
WHEEL Not Available Price: |
| 41 |
GW-9532 |
Clip Ring This part replaces 9532. Price: $3.22 |
| 42 |
753-04070 |
Pin-Lynch This part replaces 1904321. Price: $8.64 |
| 43 |
1981022010 |
PLATE REAR Not Available Price: |
| 44 |
1763767 |
KNOB Not Available Price: |
| 45 |
1177038 |
WASHER-LK .9 x .31 Not Available Price: |
| 46 |
90041 |
Hex. Hd. Screw, M6 x 20 Price: Call Us |
| 47 |
1186332 |
SCR-HFLK 5 Not Available Price: |
| 48 |
1917530 |
ADAPTER-ENGINE MAC Not Available Price: |
| 49 |
1917529 |
ADAPTER-TRANS MACH Not Available Price: |
