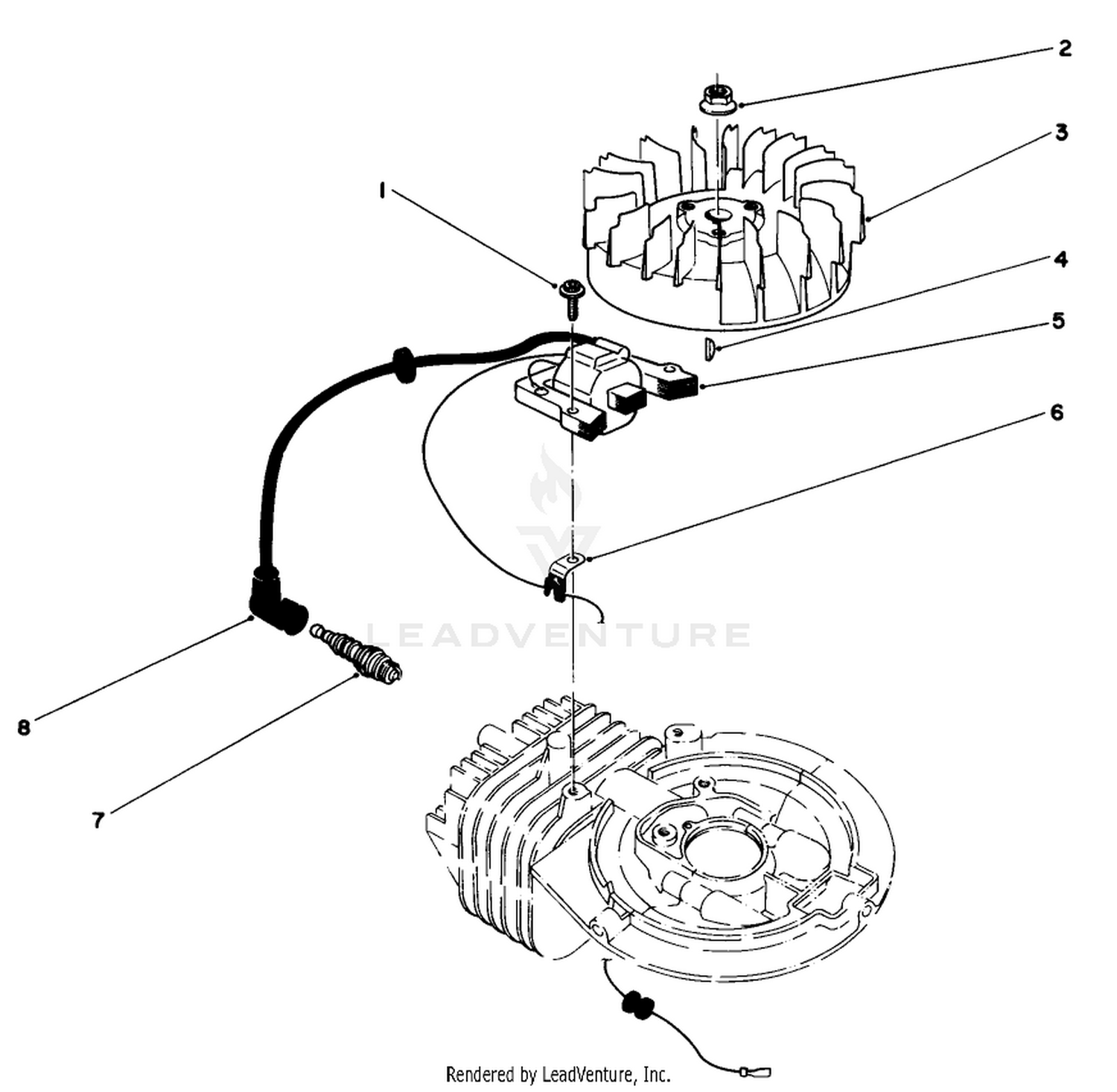

Flywheel Magneto Assembly Engine 47pe-4 (used On Units With Serial No.6000101-6002073) Engine 47pf-5 (used On Units With Serial No. 6002074 Up)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 81-5680 | SCREW This part replaces 81-2050. Price: $3.33 |
| 2 | 81-1330 | NUT Price: $6.42 |
| 3 | 81-1980 | FLYWHEEL Price: $265.12 |
| 3 | 81-2810 | FLYWHEEL Price: $259.02 |
| 4 | 81-2370 | KEY Price: $3.28 |
| 5 | 17-1529 | COIL-KIT This part replaces 81-1990. Price: $328.95 |
| 5 | 81-2820 | COIL-MAGNETO Price: $244.46 |
| 6 | 81-1480 | CLAMP Price: $3.11 |
| 7 | 50-1170 | SPARK PLUG This part replaces 81-0181. Price: $5.46 |
| 8 | 81-1500 | CAP-SPARKPLUG Price: $21.57 |
