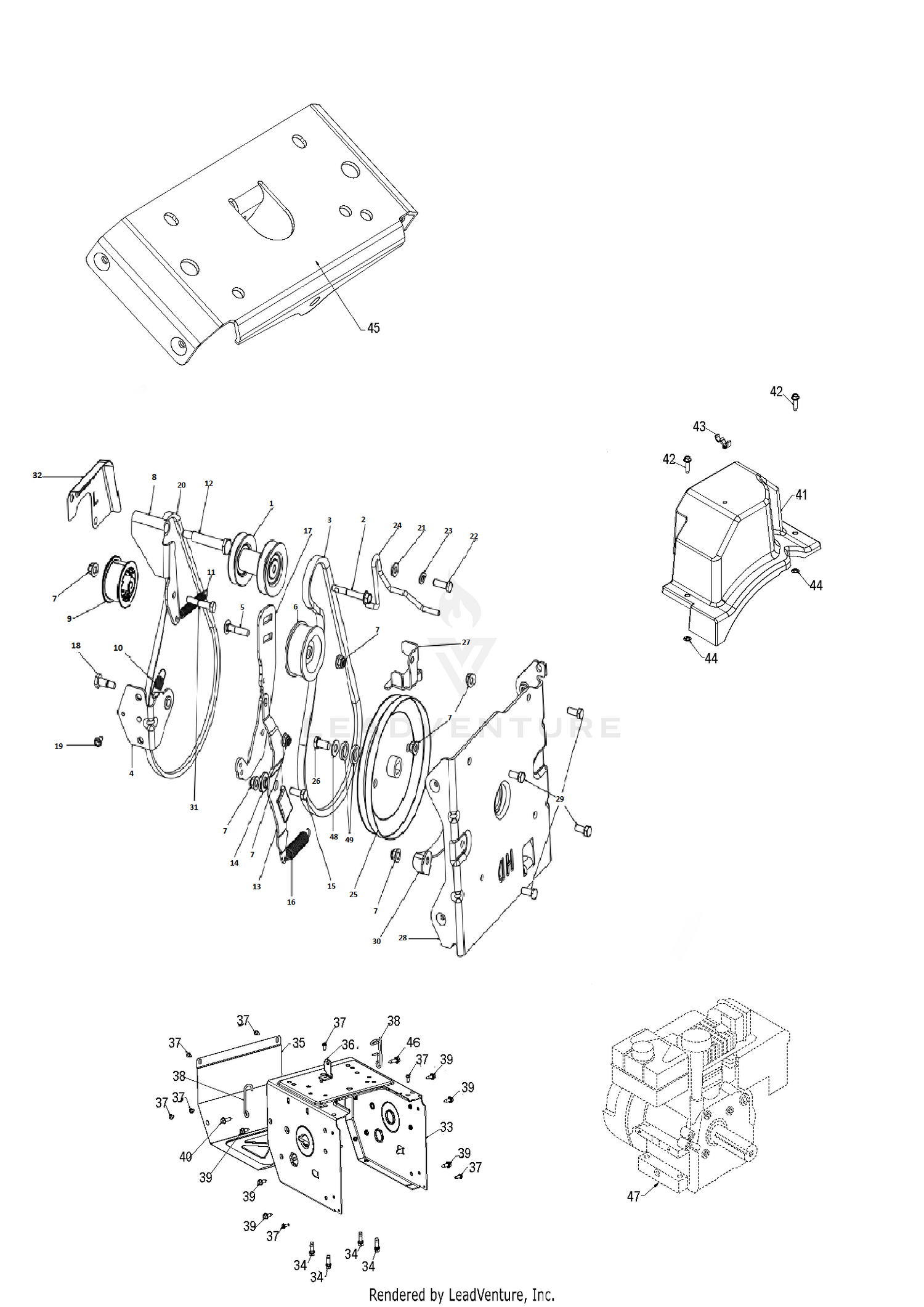

| Ref | Part Number | Description |
|---|
| 1 |
589262203 |
Engines Price: $27.99 |
| 2 |
582388401 |
BOLT.ENGINE.PULLEY Price: $4.99 |
| 3 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.00 |
| 4 |
546125702 |
BRACKET.WELDMANT.IDLER ARM This part replaces 589263402. Price: $8.99 |
| 5 |
589284501 |
BOLT 5/16-18 CARRIAGE 1.5L Price: $5.99 |
| 6 |
589262702 |
Pulleys Price: $9.99 |
| 7 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 8 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA Price: $9.99 |
| 10 |
589263701 |
SPRING IDLER RETURN Price: $4.99 |
| 11 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 12 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 13 |
579763301 |
ARM IMPELLER BRAKE Price: $27.99 |
| 14 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 15 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ Price: $2.99 |
| 16 |
579763501 |
SPRING EXTENSION - BRAKE Price: $4.99 |
| 17 |
589262902 |
ARM IDLER BLACK ZINC Price: $9.99 |
| 18 |
589263601 |
SCREW HEX HEAD SHOULDER Price: $5.99 |
| 19 |
817060408 |
SCREW Price: $4.99 |
| 20 |
582640701 |
Belts Price: $5.99 |
| 21 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
| 22 |
874610516 |
SCREW Price: $3.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH Price: $2.99 |
| 24 |
598644401 |
Belt Keepers Price: $2.99 |
| 25 |
536862801 |
PULLEY This part replaces 589369201. Price: $22.99 |
| 26 |
595517901 |
SCREW HEXAGON HEAD FLANGE 3/8- Price: $3.99 |
| 27 |
587587202 |
GUIDE.LOWER.AUGER.BELT.479 Price: $8.99 |
| 28 |
501595403 |
NEEDS DESCRIPTION This part replaces 501595402. Price: $6.99 |
| 29 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- Price: $3.99 |
| 30 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 31 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 32 |
598711902 |
Cranks Price: $4.99 |
| 33 |
589264705 |
FRAME MS 668 Price: $99.99 |
| 34 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 35 |
580839505 |
COVER COVER.FRAME MS668 ORANGE Price: $49.99 |
| 36 |
501060403 |
BRACKET.SHIFTER.BZP Price: $6.99 |
| 37 |
582906901 |
SCREW.HEX HEAD W/COLLAR 1/4-20 Price: $2.99 |
| 38 |
588954501 |
WIREFORM.SUPPORT.CABLE Price: $6.99 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 40 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 585217501. Price: $2.99 |
| 43 |
532145006 |
PUSH CLIP Price: $2.99 |
| 45 |
583940502 |
BRACKET.FRAME.SUPPORT.BLACK Price: $27.99 |
| 46 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR Price: $2.99 |
