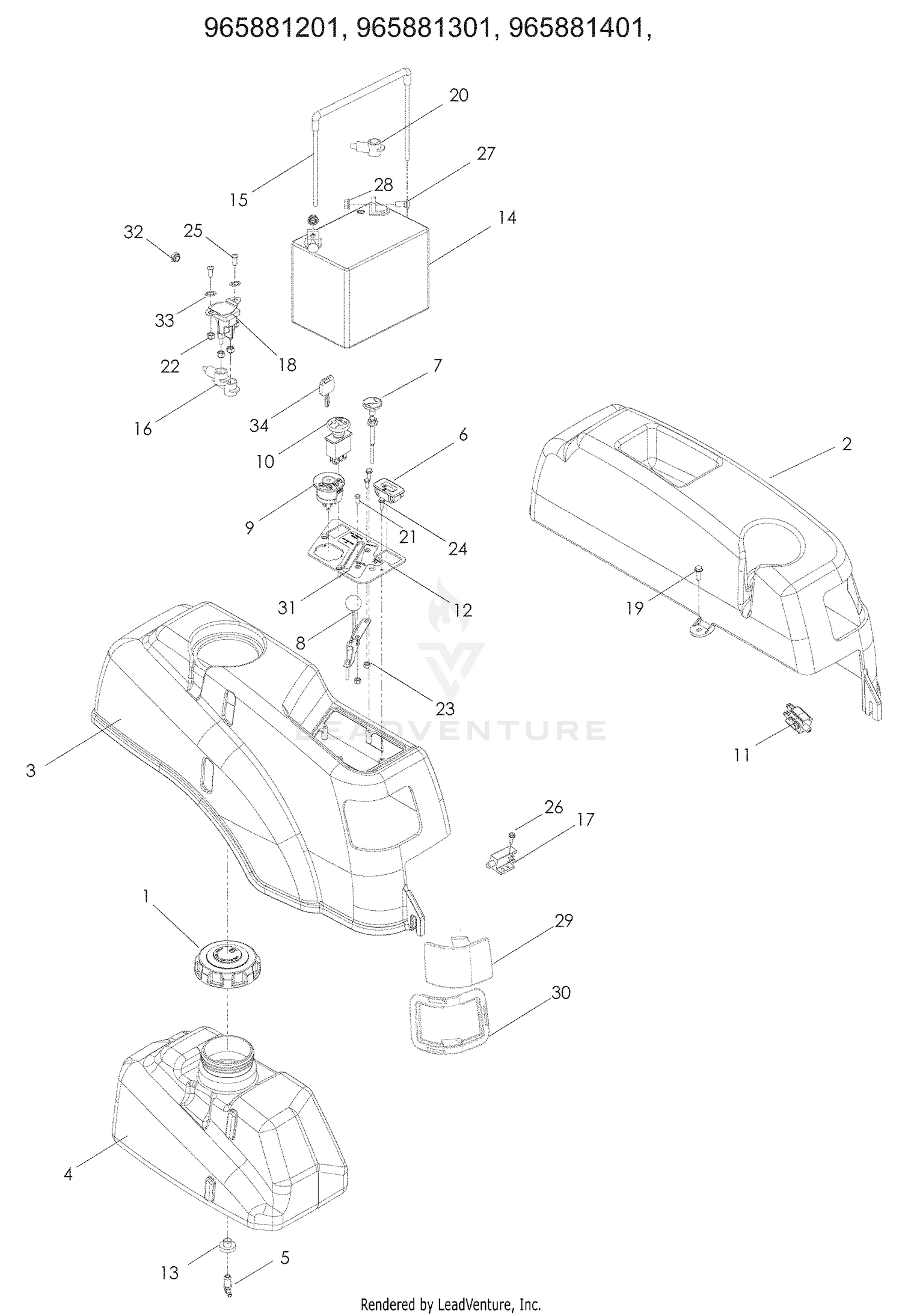

| Ref | Part Number | Description |
|---|
| 1 |
539130393 |
FUEL CAP, HTC Price: $19.99 |
| 1 |
67-4580 |
BOLT This part replaces 60-7180. Price: $2.94 |
| 2 |
51-7250 |
WASHER Price: $1.22 |
| 2 |
539130374 |
FENDER, LT Price: $74.99 |
| 3 |
539130375 |
RP.FENDER, RT Price: $44.99 |
| 4 |
539110252 |
FUEL TANK Price: $74.99 |
| 4 |
92-6094 |
DISCONTINUED Price: Call Us |
| 5 |
51-5160 |
WASHER Price: $1.24 |
| 5 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 6 |
576179401 |
HOUR METER This part replaces 539110074. Price: $27.99 |
| 7 |
539112439 |
CHOKE CABLE This part replaces 539130209. Price: $29.99 |
| 7 |
60-7050 |
DISCONTINUED Price: Call Us |
| 8 |
539112734 |
THROTTLE CABLE Price: $29.99 |
| 8 |
70-5020 |
CAMSHAFT GEAR This part replaces 51-6410. Price: $318.14 |
| 9 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 9 |
86-6290 |
IDLER ASSY Price: $469.80 |
| 10 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99 |
| 11 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 11 |
60-7200 |
DISCONTINUED Price: Call Us |
| 12 |
51-8310 |
DISCONTINUED Price: Call Us |
| 12 |
539112735 |
CONSOLE.PLATE.BLACK Price: $9.99 |
| 13 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 14 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 15 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 15 |
86-6310 |
DISCONTINUED Price: Call Us |
| 16 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 17 |
51-6450 |
CRANKSHAFT GEAR Price: $285.96 |
| 17 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 18 |
539101714 |
SOLENOID Price: $22.99 |
| 18 |
86-6300 |
DISCONTINUED Price: Call Us |
| 19 |
51-6400 |
THRUST PLATE Price: $29.56 |
| 19 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 20 |
539102759 |
INSULATOR Price: $3.99 |
| 20 |
93-3510 |
SPRING-WASHER This part replaces 51-6390. Price: $1.49 |
| 21 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 21 |
60-7210 |
DISCONTINUED Price: Call Us |
| 22 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 23 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 23 |
92-6096 |
CASE - TIMING COVER Price: $494.17 |
| 24 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 25 |
51-5870 |
OIL SEAL Price: $32.15 |
| 25 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 26 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 27 |
51-5850 |
COVER Price: $48.20 |
| 27 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 28 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 28 |
60-6780 |
DISCONTINUED Price: Call Us |
| 29 |
539110457 |
LEFT HEADLIGHT LENS This part replaces 539110056. Price: $4.99 |
| 30 |
539110455 |
LEFT HEADLIGHT RIM GREY Price: $4.99 |
| 31 |
539112740 |
DECAL, IGNITION CONSOLE Price: $4.99 |
| 32 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 33 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 539110451 |
RT |
HEADLIGHT RIM GREY Price: $4.99 539110451 |
| 539110453 |
RT |
HEADLIGHT LENS This part replaces 539110057. Price: $4.99 539110453 |
