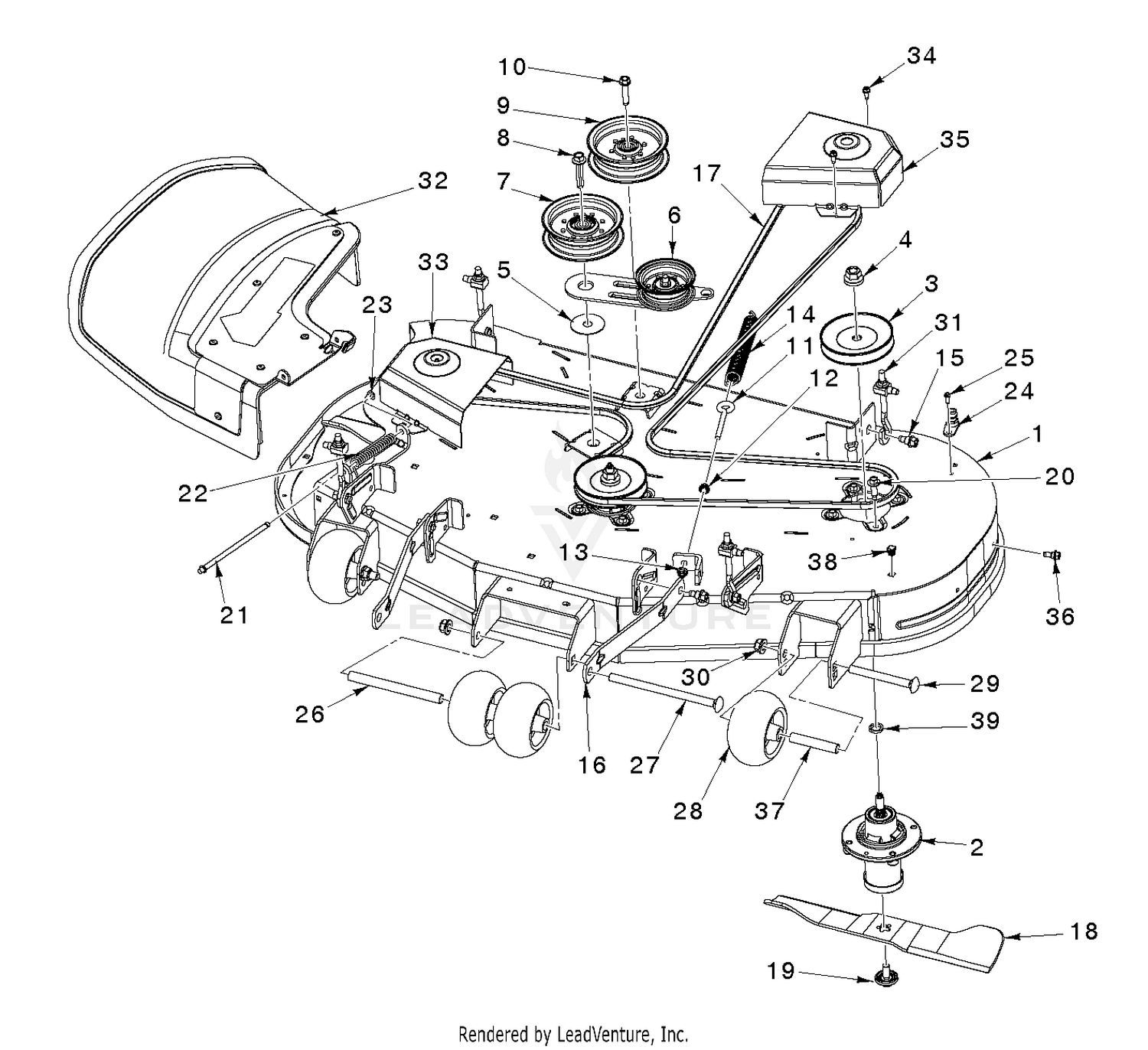

| Ref | Part Number | Description |
|---|
| 1 |
598852701 |
Decals Price: $1,299.99 |
| 2 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 3 |
590805103 |
Pulleys Price: $29.99 |
| 4 |
598490501 |
Nuts Price: $7.99 |
| 5 |
532178515 |
WASHER Price: $5.99 |
| 6 |
529470302 |
IDLER ARM This part replaces 588812304. Price: $6.99 |
| 7 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 9 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 10 |
599972501 |
BOLT This part replaces 596564003. Price: $2.99 |
| 11 |
596240801 |
GSPW Bolts Price: $3.99 |
| 12 |
596039201 |
GSPW Hardware Price: $2.99 |
| 13 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 14 |
582504001 |
SPRING.EXTENSION Price: $6.99 |
| 15 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 16 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 17 |
579678502 |
Belts Price: $59.99 |
| 18 |
588811202 |
BLADE.BAGGER.COM.CLRCT.48".BLK Price: $32.99 |
| 19 |
539119007 |
BLADE BOLT/WASHER Price: $8.99 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 21 |
595297001 |
Rods Price: $4.99 |
| 22 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 23 |
532110452 |
NUT PUSH M Price: $2.99 |
| 24 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 25 |
596637301 |
Screws Price: $2.99 |
| 26 |
574196502 |
Tubes Price: $17.99 |
| 27 |
594944501 |
Bolts Price: $7.99 |
| 28 |
574169601 |
ROLLER, GAUGE .635 BORN Price: $14.99 |
| 29 |
510022302 |
Screws Price: $5.99 |
| 30 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL Price: $3.99 |
| 31 |
532176205 |
TRUNNION Price: $6.99 |
| 31 |
588252901 |
NUT.HEX.FLANGE.INS.BLK.3/8-16 Price: $3.99 |
| 31 |
599857101 |
LINK ASSY This part replaces 588783401. Price: $9.99 |
| 32 |
593649701 |
GSPW Deflectors Price: $84.99 |
| 33 |
588812402 |
COVER.PNT.MANDREL.RH.GREY Price: $34.99 |
| 34 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 35 |
588812802 |
COVER.PNT.MANDREL.LH.ZTR.GREY Price: $27.99 |
| 36 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 37 |
574196402 |
Tubes Price: $5.99 |
| 38 |
596952201 |
Plugs Price: $2.99 |
| 39 |
598645501 |
Spacers Price: $5.99 |
