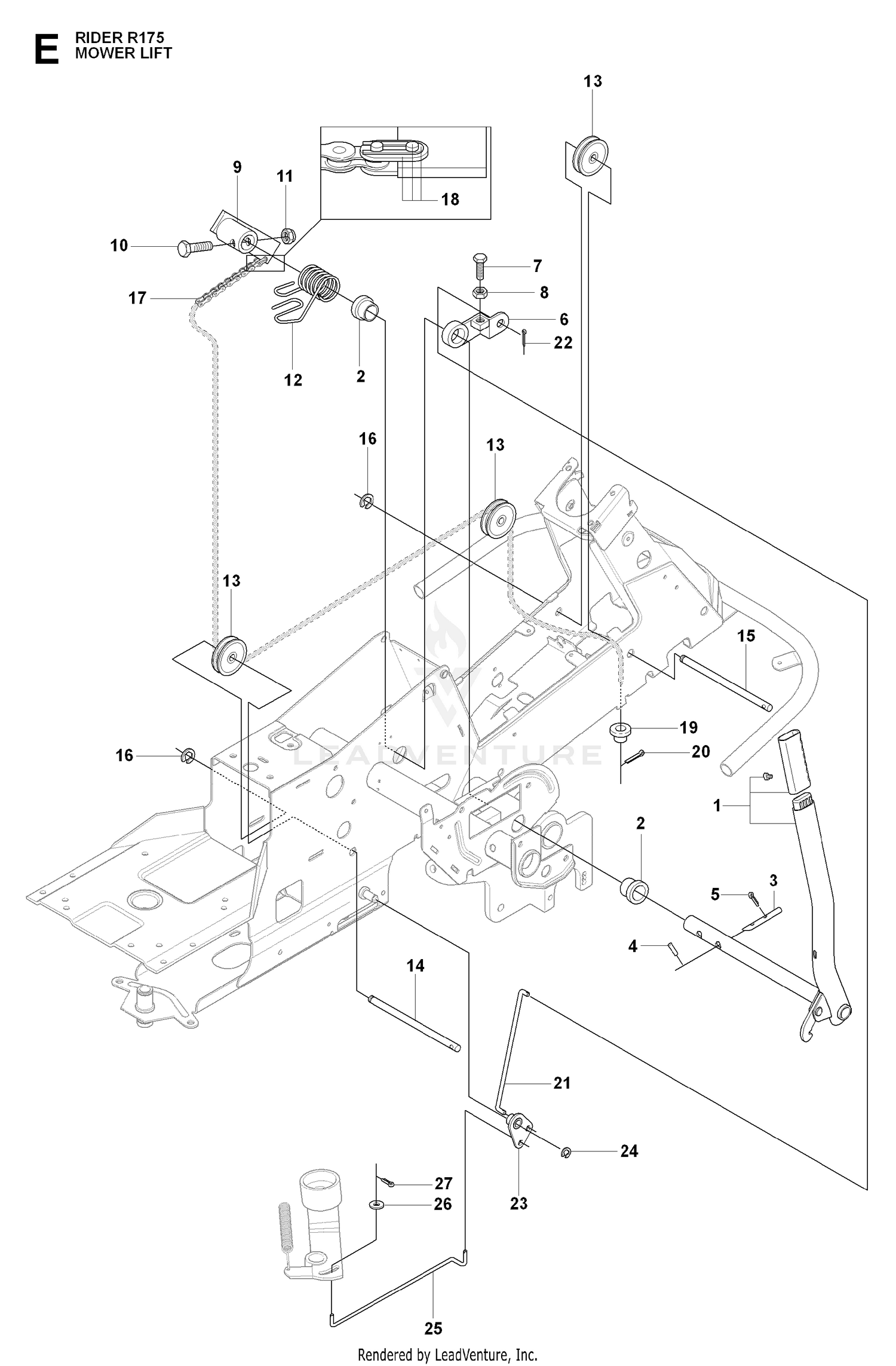

MOWER LIFT / DECK LIFT
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-3101 | OIL LUBE PUMP ASM Price: $229.50 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 506905401 | Lever Price: $47.37 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 127-3004 | GASKET Price: $2.73 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 125-7232 | BOLT Price: $3.28 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 125-7171 | PLUG-DRAIN Price: $23.08 |
| 16 | 125-6987 | DIPSTICK Price: $68.96 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 125-6954 | GUIDE-DIPSTICK Price: $9.80 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 125-7022 | GASKET Price: $7.07 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 125-7023 | PIPE ASM Price: $44.23 |
| 19 | 506905901 | BUSHING Price: $20.99 |
| 20 | 125-7217 | BOLT Price: $4.58 |
| 20 | 721618701 | COTTER PIN Price: $3.99 |
| 21 | 127-3014 | COOLER ASM Price: $1,323.82 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 127-2985 | O-RING Price: $6.88 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 127-3015 | BRACKET-COOLER Price: $73.15 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 125-7041 | NUT-COOLER, OIL Price: $51.50 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 127-3009 | BRACKET ASM Price: $82.05 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 127-3009 | BRACKET ASM This part replaces 125-6930. Price: $82.05 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 127-3010 | STUD Price: Call Us |
| 27 | 721618301 | Split Pin Price: $1.99 |
| 28 | 125-7024 | GASKET Price: $3.16 |
| 30 | 125-6990 | JOINT Price: $64.80 |
| 31 | 127-3102 | PIPE-COOLING, WATER Price: $45.56 |
| 32 | 125-7162 | CLIP Price: $6.55 |
| 35 | 127-3103 | HOSE-COOLING, WATER Price: $48.62 |
| 36 | 125-7162 | CLIP Price: $6.55 |
| 38 | 127-3007 | TUBE Price: $19.01 |
| 39 | 125-7001 | ELBOW Price: $40.49 |
| 40 | 127-3176 | O-RING Price: $2.87 |
| 41 | 125-7595 | BOLT Price: $2.39 |
