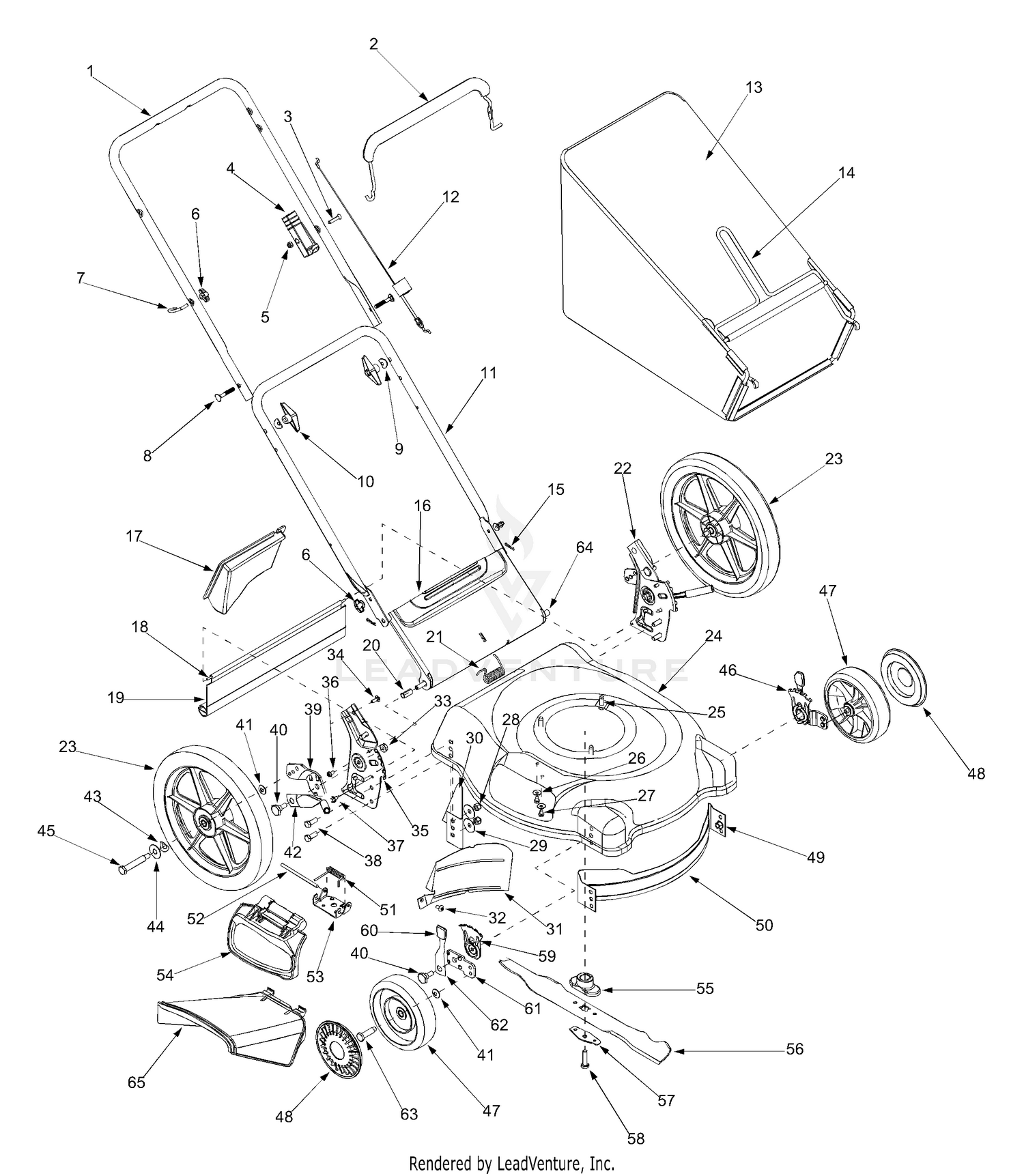

| Ref | Part Number | Description |
|---|
| 1 |
749-1092A |
Upper Handle Price: $42.79 |
| 2 |
747-1161A |
Control Handle Price: $10.27 |
| 3 |
710-1270 |
SCREW 1/4-20 x 1.310 Not Available Price: |
| 4 |
746-0883 |
Throttle Housing Price: $15.66 |
| 5 |
712-0324 |
Hex Lock Nut 1/4-20 Price: $3.38 |
| 6 |
720-0279 |
Handle Knob Price: $3.93 |
| 7 |
710-1205 |
Rope Guide Price: $3.53 |
| 8 |
710-1174 |
Carriage Bolt 5/16-18 x 2" Price: $6.28 |
| 9 |
736-0451 |
Shoulder Washer .320 ID x .930 OD Price: $3.75 |
| 10 |
720-0284 |
Wing Nut Price: $4.08 |
| 11 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928A. Price: $29.67 |
| 12 |
946-1130 |
Control Cable - 40.00" This part replaces 746-1130. Price: $16.01 |
| 13 |
964-0084 |
Grassbag This part replaces 664-0084. Price: $169.64 |
| 14 |
747-0995A-0637 |
Grasscatcher Frame This part replaces 747-0995A. Price: $74.25 |
| 15 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 16 |
782-7599B-0637 |
GRASSBAG DOOR Not Available This part replaces 782-7599A. Price: |
| 17 |
782-5007C |
Mulching Baffle Plug This part replaces 782-5007A. Price: $45.78 |
| 18 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 19 |
731-04998 |
Rear Trailing Shield This part replaces 731-1236. Price: $27.86 |
| 20 |
750-0434 |
Spacer .375 O.D. x .50 I.D. x 1.02" Price: $6.01 |
| 21 |
932-0809 |
Torsion Spring This part replaces 732-0809. Price: $16.24 |
| 22 |
753-05922 |
RH Bracket Ass'y This part replaces 682-3058. Price: $96.78 |
| 23 |
734-1861 |
Rear Wheel Assembly 14 x 2 Price: $65.62 |
| 24 |
782-0047A |
DECK SHELL 21" Not Available Price: |
| 25 |
710-0654A |
Hex Washer Screw 3/8-16 x 1.0 Price: $3.75 |
| 26 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 27 |
710-0599 |
Hex Washer Screw 1/4-20 x .500 Price: $3.86 |
| 28 |
712-0130 |
Hex Lock Nut 3/8-16 Price: $3.61 |
| 29 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 30 |
782-5004B |
Mulching Baffle - R.R. This part replaces 782-5004. Price: $21.86 |
| 31 |
782-5003A |
LH Rear Baffle This part replaces 782-5003. Price: $26.48 |
| 32 |
710-1017 |
Tap Screw 1/4-14 x .625. Price: $7.26 |
| 33 |
712-3005 |
Flange Lock Nut 3/8-16 Price: $5.99 |
| 34 |
710-0703 |
Hex Carriage Screw 1/4-20 Price: $3.66 |
| 35 |
682-3056A |
Handle Bracket Assembly - RH Price: $90.03 |
| 36 |
710-0286 |
Machine Screw 1/4-20 x .500 Price: $3.86 |
| 37 |
710-0896 |
Hex Washer Screw 1/4-14 x .625 Price: $3.86 |
| 38 |
710-0514 |
Hex Cap Screw 3/8-16 x 1.0 Price: $3.78 |
| 39 |
17488A |
Pivot Bar - RH Price: $13.59 |
| 40 |
738-0507B |
Shoulder Screw Price: $3.86 |
| 41 |
736-0105 |
Spring Washer .375 ID x .870 OD Price: $3.96 |
| 42 |
732-0866 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 43 |
736-0182 |
Wave Washer .500 ID x 1.0 OD Price: $3.90 |
| 44 |
936-0456 |
FLAT WASHER Not Available This part replaces 736-0456. Price: |
| 45 |
938-0481A |
Shoulder Screw This part replaces 738-0481A. Price: $6.30 |
| 46 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 47 |
734-1980 |
Front Wheel Assembly 7 x 2 Price: $40.41 |
| 48 |
731-0981C |
Hub Cap This part replaces 731-0981A. Price: $9.24 |
| 49 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 50 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002. Price: |
| 51 |
932-0731 |
Torsion Spring This part replaces 732-0731. Price: $9.09 |
| 52 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 53 |
782-7006 |
MOUNTING BRACKET Not Available Price: |
| 54 |
731-1404A |
MULCH PLUG ASSEMBLY Not Available Price: |
| 55 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 57 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 58 |
710-1044 |
Hex Cap Screw 3/8-24 x 1.5 Price: $3.48 |
| 59 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 60 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 61 |
15262B |
Pivot Bar Price: $13.59 |
| 62 |
94832 |
Front Spring Lever This part replaces 732-0404. Price: $9.48 |
| 63 |
738-0102 |
Shoulder Bolt Price: $9.22 |
| 64 |
747-0996 |
Chute Door Pivot Rod Price: $28.10 |
| 17489A |
Pivot |
Bar - LH Price: $13.63 17489A |
