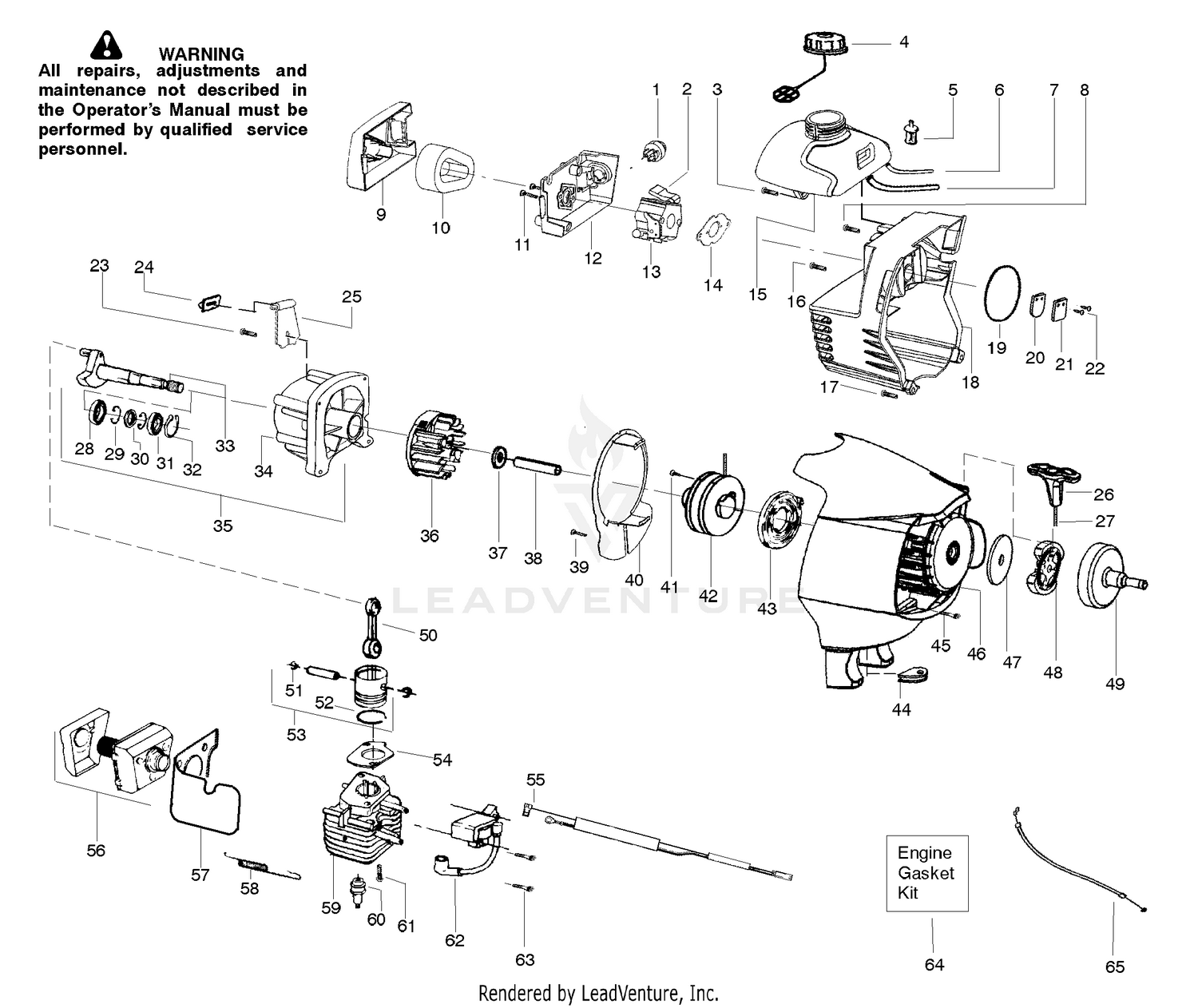

| Ref | Part Number | Description |
|---|
| 1 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 1 |
530047721 |
Bulb-Purge Price: $3.99 |
| 2 |
327-22 |
SCREW-HH Price: $4.41 |
| 2 |
530071717 |
Kit-Choke Lever Price: $7.99 |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
530015843 |
Screw-tank Price: $1.99 |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 5 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 5 |
530095646 |
Assy-Fuel pickup Price: $2.99 |
| 6 |
26-8390 |
DISCONTINUED Price: Call Us |
| 6 |
530069247 |
Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 7 |
26-8270 |
DISCONTINUED Price: Call Us |
| 7 |
530069216 |
Kit-Fuel/Purge line Price: $3.99 |
| 8 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 8 |
530015775 |
Screw Price: $1.99 |
| 9 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 9 |
530054935 |
Cover-Air box Price: $1.99 |
| 10 |
28-2480 |
WASHER-PLAIN Price: $3.99 |
| 10 |
530054946 |
Filter-Air Price: $1.99 |
| 11 |
328-24 |
SCREW-HH Price: $23.99 |
| 11 |
530015849 |
Screw-Carb. Price: $1.99 |
| 12 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 12 |
530054934 |
Box-Air Price: $3.99 |
| 13 |
322-6 |
SCREW-HH Price: $0.45 |
| 14 |
26-8250-01 |
PIN-ARM, LIFT This part replaces 26-8250. Price: $99.04 |
| 15 |
26-8310-01 |
BAIL-LIFT This part replaces 26-8310. Price: $233.66 |
| 15 |
545075305 |
Assy-Fuel Tank Price: $11.99 |
| 16 |
3-8448 |
WASHER-THRUST Price: $2.58 |
| 16 |
530015771 |
Screw-Crankcase Price: $1.99 |
| 17 |
26-8340 |
LIFT ARM WA (2 & 3) Price: $886.19 |
| 17 |
530015952 |
Screw-Shroud Price: $1.99 |
| 18 |
26-8160-01 |
SUPPORT-ARM, LIFT This part replaces 26-8160. Price: $1,410.43 |
| 18 |
530058797 |
Shroud Price: $14.99 |
| 19 |
3296-24 |
NUT-HEX Price: $4.44 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
530027593 |
Valve-Reed Price: $1.99 |
| 21 |
18-2620 |
DISCONTINUED Price: Call Us |
| 21 |
530054596 |
Stop-Reed Price: $1.99 |
| 22 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 22 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 |
530015875 |
Screw-Retainer Price: $1.99 |
| 24 |
530055492 |
Isolator-Tank Price: $1.99 |
| 25 |
530054941 |
Ret.-Tank Price: $1.99 |
| 26 |
530054834 |
Handle-Starter Price: $1.99 |
| 27 |
530071325 |
Kit-Rope Price: $3.99 |
| 28 |
530032103 |
Bearing-Inner Price: Call Us |
| 29 |
530015787 |
Retainer Price: $1.99 |
| 30 |
530019158 |
Seal Price: $2.99 |
| 31 |
530032102 |
Bearing-Outer Price: $8.99 |
| 32 |
530015789 |
Ret.-Crankshaft Price: $2.99 |
| 33 |
530028807 |
Assy-Crankshaft Price: $19.99 |
| 36 |
530055524 |
Assy-Flywheel Price: $22.99 |
| 37 |
530016030 |
Washer Price: $1.99 |
| 38 |
530055620 |
Spacer Price: $4.99 |
| 39 |
530015775 |
Screw-Baffle Price: $1.99 |
| 40 |
545115201 |
Plate-Baffle This part replaces 530054939. Price: $2.99 |
| 41 |
530016391 |
Screw-Rope Price: $1.99 |
| 43 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 44 |
530019182 |
Grommet Price: $1.99 |
| 45 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 46 |
530055248 |
Assy.-Fan Housing Price: $17.99 |
| 47 |
530094189 |
Washer-Clutch Price: $2.99 |
| 48 |
530055122 |
Assy-Clutch Price: $8.99 |
| 49 |
530028799 |
Drum-Clutch Price: $4.48 |
| 50 |
530010960 |
Assy-Conn. Rod Price: $14.99 |
| 51 |
530015162 |
Ret.-Piston pin Price: $1.99 |
| 52 |
530012595 |
Ring-Piston Price: $4.99 |
| 55 |
530058846 |
Assy-Leadwire Price: $4.99 |
| 56 |
530069310 |
Kit-Muffler Price: $9.99 |
| 57 |
530058957 |
Shield Price: $3.99 |
| 58 |
530036409 |
Spring-Muffler Price: $1.99 |
| 59 |
530071581 |
Kit-Cylinder Price: $59.99 |
| 61 |
530001624 |
Bolt-Cyl. 1/4-20' Price: $1.99 |
| 62 |
530039218 |
Module-Ignition Price: $32.99 |
| 63 |
530016357 |
Screw-Module Price: $1.99 |
