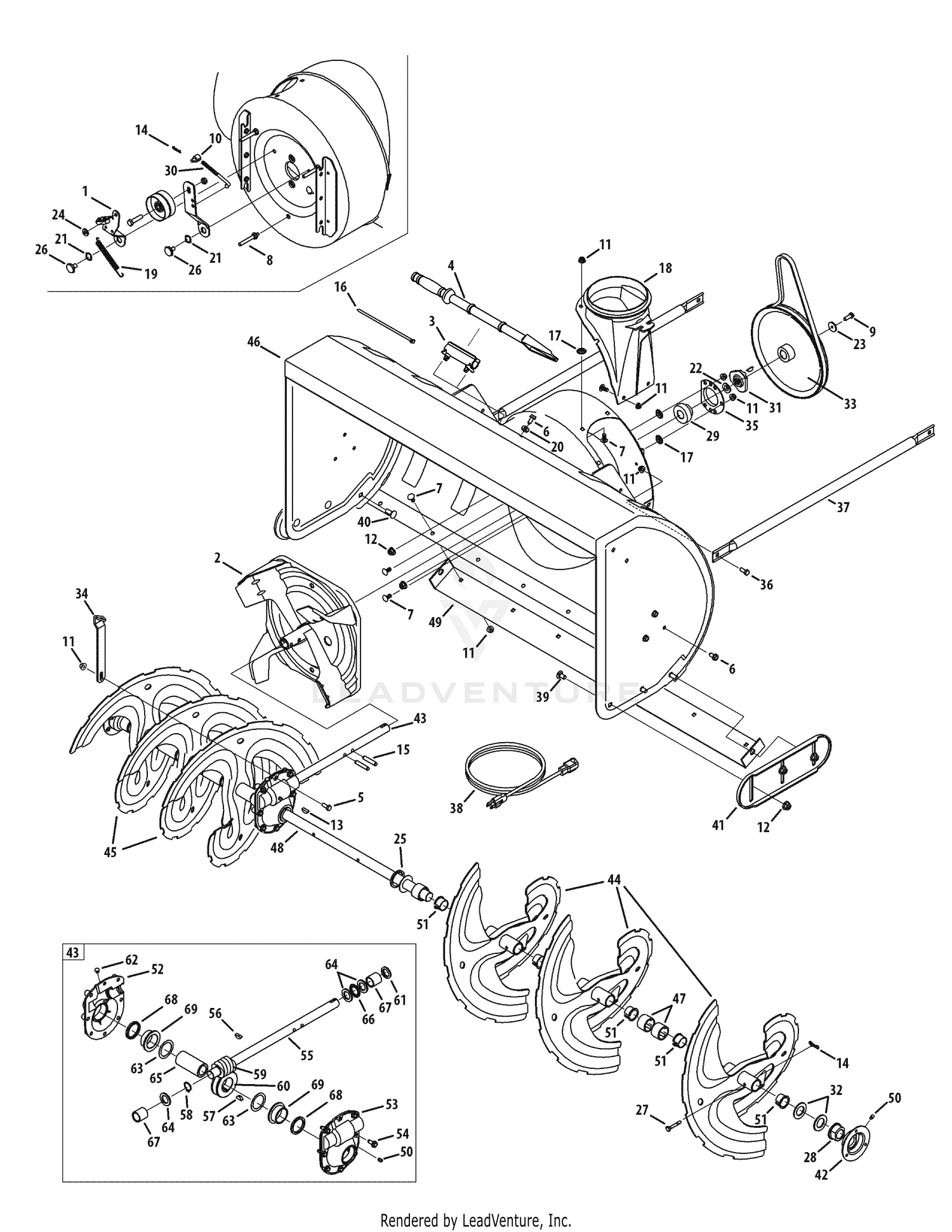

| Ref | Part Number | Description |
|---|
| 1 |
918-0281A |
Bracket Assembly, Auger Brake Price: $60.14 |
| 2 |
684-0090B-0637 |
IMPELLER ASSEMBLY(POWDER BLACK) Not Available Price: |
| 3 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 4 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 5 |
710-0376 |
Screw, Hex Cap, 5/16-18 x 1.0 Gr5 Price: $3.66 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0451 |
Screw, Carriage, 5/16-18 x .75 Price: $3.53 |
| 8 |
710-04606A |
Screw w/Stud, 5/16-18 x .4300 Price: $6.41 |
| 9 |
710-1245B |
Screw, Hex Cap Lock, 5/16-24, 875 Price: $7.21 |
| 10 |
911-0677 |
Ferrule Price: $15.59 |
| 11 |
712-04063 |
Nut, Hex Flange Lock, 5/16-18 Price: $3.56 |
| 12 |
712-04065 |
Nut, Hex Flange Lock, 3/8-16 Price: $3.68 |
| 13 |
714-0135 |
Key This part replaces 914-0135. Price: $4.05 |
| 14 |
714-04040 |
Pin, Bow-tie Cotter Price: $1.28 |
| 15 |
715-0118 |
Spiral Pin This part replaces 915-0118. Price: $10.94 |
| 16 |
725-0157 |
Cable Tie Price: $3.46 |
| 17 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 18 |
731-1696B |
Adapter, Chute, 6" Price: $80.08 |
| 19 |
732-0858 |
Spring, Extension Price: $23.03 |
| 20 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 21 |
736-0174 |
Washer, Wave, .625 x .885 x .015 Price: $5.94 |
| 22 |
736-0188 |
Washer, Bell., .78 x 1.49 x .06 Price: $3.75 |
| 23 |
736-0505 |
Washer, Flat, .34 x 1.5 x .15 Ht. Price: $5.65 |
| 24 |
936-3008 |
Washer, .344 x .75 x .12 Price: $6.24 |
| 25 |
736-3046A |
Washer, 1.01 x 1.86 x .06 Price: $7.77 |
| 26 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 27 |
738-04155 |
Pin, Shear, .25 x 1.75 Price: $1.60 |
| 28 |
941-0170 |
Bearing, Flange w/Flats This part replaces 741-0192. Price: $17.84 |
| 29 |
941-04024 |
Bearing, Self Aligning Price: $56.93 |
| 30 |
747-0980A |
AUGER IDLER ROD Not Available Price: |
| 31 |
748-04067A |
Adapter, Pulley w/Pins Price: $23.10 |
| 32 |
950-04020 |
Spacer, 1.004 x 1.375 x .25 Price: $10.75 |
| 33 |
756-04244A |
Pulley, Auger Drive, 10.0 Price: $53.21 |
| 34 |
790-00264A-0637 |
Bracket, Gear Box Support Price: $17.52 |
| 35 |
05244B |
Housing, Bearing Not Available Price: |
| 36 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 37 |
749-04384-0637 |
SUPPORT TUBE (POWDER BLACK) Not Available Price: |
| 39 |
710-0389 |
Screw, Carriage, 3/8-16 x .75 Price: $3.89 |
| 40 |
710-3168 |
Screw, Carriage, 3/8-16 x 1.00 Price: $3.61 |
| 41 |
784-5697-0637 |
Skid Shoe This part replaces 784-5697-0638. Price: $38.90 |
| 42 |
784-0315A-0637 |
BEARING HOUSING Not Available Price: |
| 43 |
918-04514 |
Gear Box Assembly Price: $477.08 |
| 44 |
684-04151-0637 |
SPIRAL ASSEMBLY (LH) (POWDER BLACK) Not Available This part replaces 684-04151-0638. Price: |
| 45 |
684-04151-0637 |
SPIRAL ASSEMBLY (LH) (POWDER BLACK) Not Available This part replaces 684-04151-0638. Price: |
| 47 |
731-05163 |
Spacer, 1.50 x 1.00 x 1.00 Price: $6.28 |
| 48 |
738-04159 |
SPIRAL AXLE 44.12 Not Available Price: |
| 49 |
790-00280-0637 |
Shave Plate, 45" This part replaces 790-00280-0638. Price: $53.38 |
| 50 |
937-3000 |
Grease Fitting, 3/16 Price: $4.04 |
| 51 |
741-0494 |
Flange Bushing Price: $3.64 |
| 52 |
918-0246 |
GEAR HOUSING ASSEMBLY (RH) Not Available Price: |
| 53 |
918-0435 |
Housing Assembly, Auger, LH Price: $95.81 |
| 54 |
710-1260A |
Screw, LD, 5/16-18 x .750 Price: $3.34 |
| 55 |
711-04714 |
Auger Drive Shaft Price: $58.83 |
| 56 |
714-0126 |
Key This part replaces 914-0126. Price: $4.05 |
| 57 |
714-0135 |
Key This part replaces 914-0135. Price: $4.05 |
| 58 |
716-0111 |
External Retainer Ring Price: $5.78 |
| 59 |
917-0299 |
Gear, Worm Price: $109.34 |
| 60 |
917-1425 |
Gear, Worm, LH Price: $156.25 |
| 61 |
921-0145 |
Seal, Oil Price: $8.51 |
| 62 |
721-0325 |
Plug Price: $3.82 |
| 63 |
736-0266 |
FLAT WASHER Not Available This part replaces 936-0266. Price: |
| 64 |
736-0291 |
Washer, Flat, .88 x 1.38 This part replaces 936-0291. Price: $10.76 |
| 65 |
738-0275 |
Worm Gear Shaft Price: $98.40 |
| 66 |
741-0184 |
Bearing, Thrust Price: $14.74 |
| 67 |
941-0217 |
Sleeve Price: $16.47 |
| 68 |
921-0146 |
Oil Seal Price: $11.10 |
