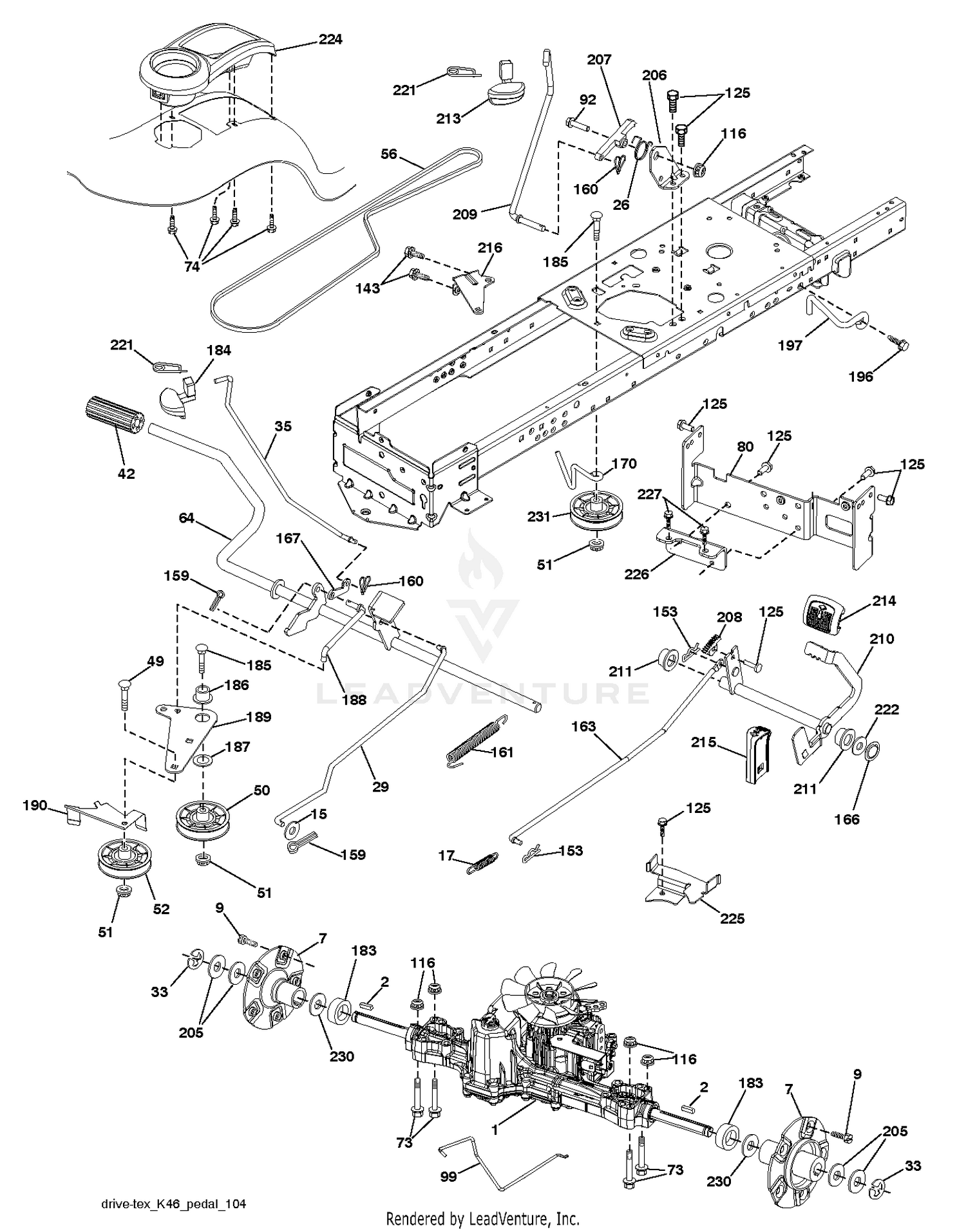

| Ref | Part Number | Description |
|---|
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $2.99 |
| 7 |
532199844 |
HUB.ASM.WHEEL.REAR.22" Price: $45.99 |
| 9 |
532140080 |
HUB BOLT Price: $2.99 |
| 10 |
105-3737 |
OVER FLOW PIPE ASM Price: $66.18 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $3.99 |
| 20 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $2.99 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
532435486 |
ROD.BRAKE.PARTK.HUSQ.TEX Price: $8.99 |
| 40 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 42 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 50 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532130969 |
V-BELT Price: $22.99 |
| 60 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $31.99 |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 75 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 80 |
532440619 |
STRAP.TORQUE.K46.K57R.TT Price: $17.99 |
| 80 |
98-9622 |
PIPE-INJECTION Price: $74.03 |
| 90 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 92 |
874520520 |
Bolt 5/16-18 x 1-1/4 This part replaces 874760520. Price: $2.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $6.99 |
| 100 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 110 |
105-3738 |
PIPE-INJECTION Price: $67.15 |
| 116 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 120 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 130 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 140 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 143 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 150 |
98-9623 |
PLUG-GLOW Price: $93.76 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
105-3739 |
CORD-PLUG, GLOW Price: $19.85 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 163 |
532401034 |
ROD.CONTROL.PEDAL.K46 Price: $25.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $3.99 |
| 170 |
99-8377 |
NUT-FLANGE Price: $2.56 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532403118 |
HANDLE.PARKG.BRK.HUSQ/ This part replaces 532441455. Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
532194323 |
LINK.CLUTCH.GROUND.DRIVE Price: $7.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLU Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 206 |
532197867 |
BRKT.MOUNT.LATCH.CRUIS Price: $2.99 |
| 207 |
532197868 |
LATCH.CONTROL.CRUISE Price: $6.99 |
| 208 |
532197869 |
GEAR.SECTOR.CONTROL.CR Price: $3.99 |
| 209 |
532199592 |
ROD.CONTROL.CRUISE.GT. Price: $7.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $19.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $7.99 |
| 214 |
532421263 |
PAD PEDAL FORWARD Price: $4.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $3.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $2.99 |
| 224 |
532412298 |
CONSOLE.TOOLBOX.PCH.ERGO.BLACK Price: $11.99 |
| 225 |
532403319 |
KEEPER.BELT.TRANSAXLE.K46 Price: $14.99 |
| 226 |
532401564 |
BRACKET.MOUNT.TORQUE.K46.TLT Price: $12.99 |
| 227 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $2.99 |
