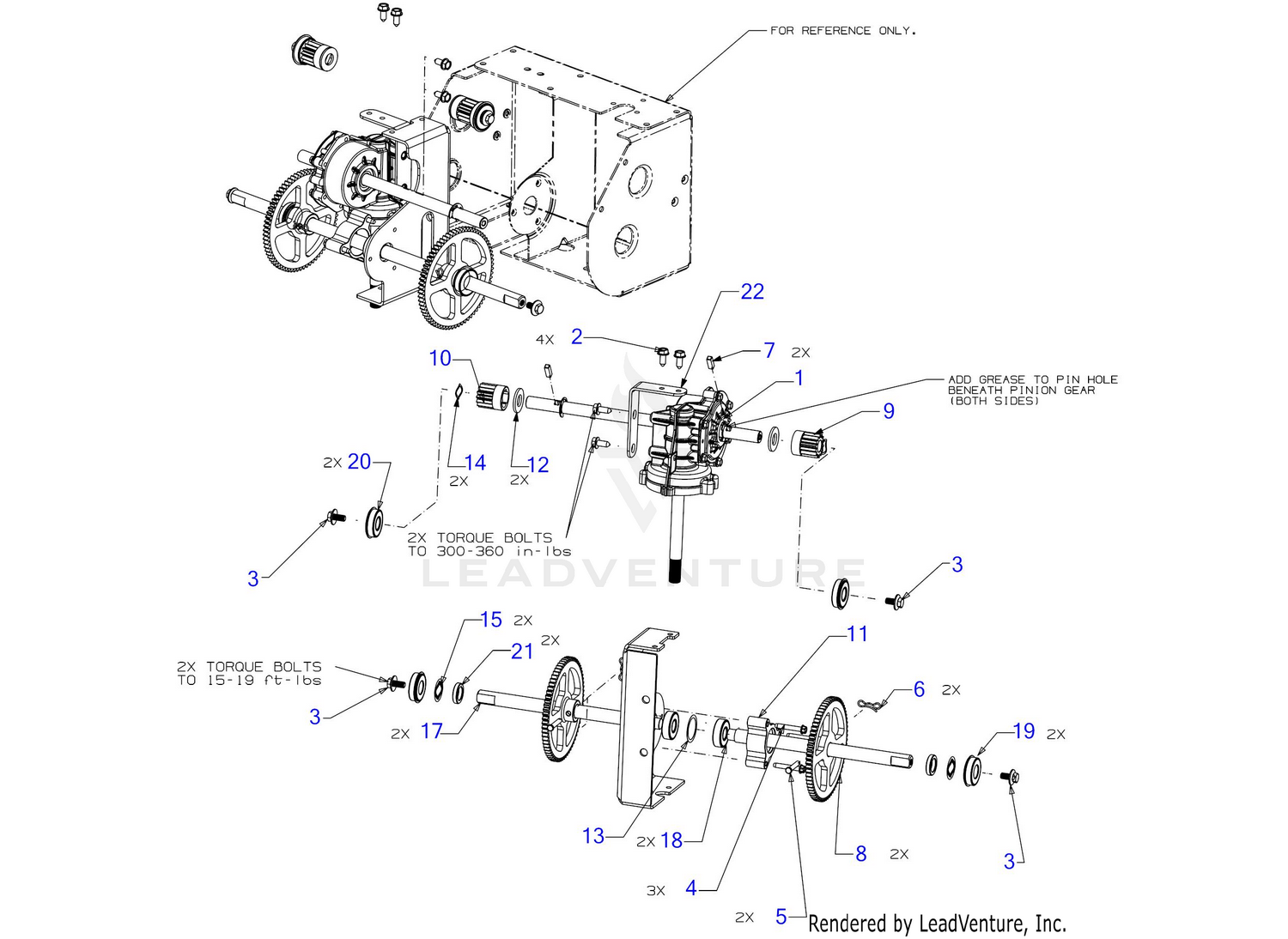

| Ref | Part Number | Description |
|---|
| 1 |
918-07074 |
TRANSMISSION ASSEMBLY Price: $338.20 |
| 2 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 3 |
710-05339A |
SCREW 5/16-24 x .750 GR5 Price: $3.70 |
| 4 |
710-1325 |
SCREW 1/4-20 X1.625 Price: $4.11 |
| 5 |
711-1364 |
PIN Price: $7.44 |
| 6 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 7 |
715-05041 |
SQUARE KEY Not Available Price: |
| 8 |
917-04073A |
GEAR 70T Price: $53.38 |
| 9 |
917-05276 |
SPUR GEAR 14T (LH) Not Available This part replaces 717-05276. Price: |
| 10 |
917-05277 |
SPUR GEAR 14T (RH) Not Available Price: |
| 11 |
718-04261 |
BEARING CUP Price: $18.82 |
| 12 |
736-04376 |
INPUT SHAFT WASHER Not Available Price: |
| 13 |
736-04516 |
SHIM WASHER Price: $5.52 |
| 14 |
736-05127 |
WAVE WASHER Not Available Price: |
| 15 |
N/A |
Not Serviced |
| 17 |
738-05120 |
AXLE Price: $26.57 |
| 18 |
741-04547 |
BALL BEARING Price: $8.29 |
| 19 |
741-05143A |
BALL BEARING Price: $7.35 |
| 20 |
941-0563 |
BALL BEARING Price: $33.84 |
| 21 |
950-04191 |
SPACER Price: $5.32 |
