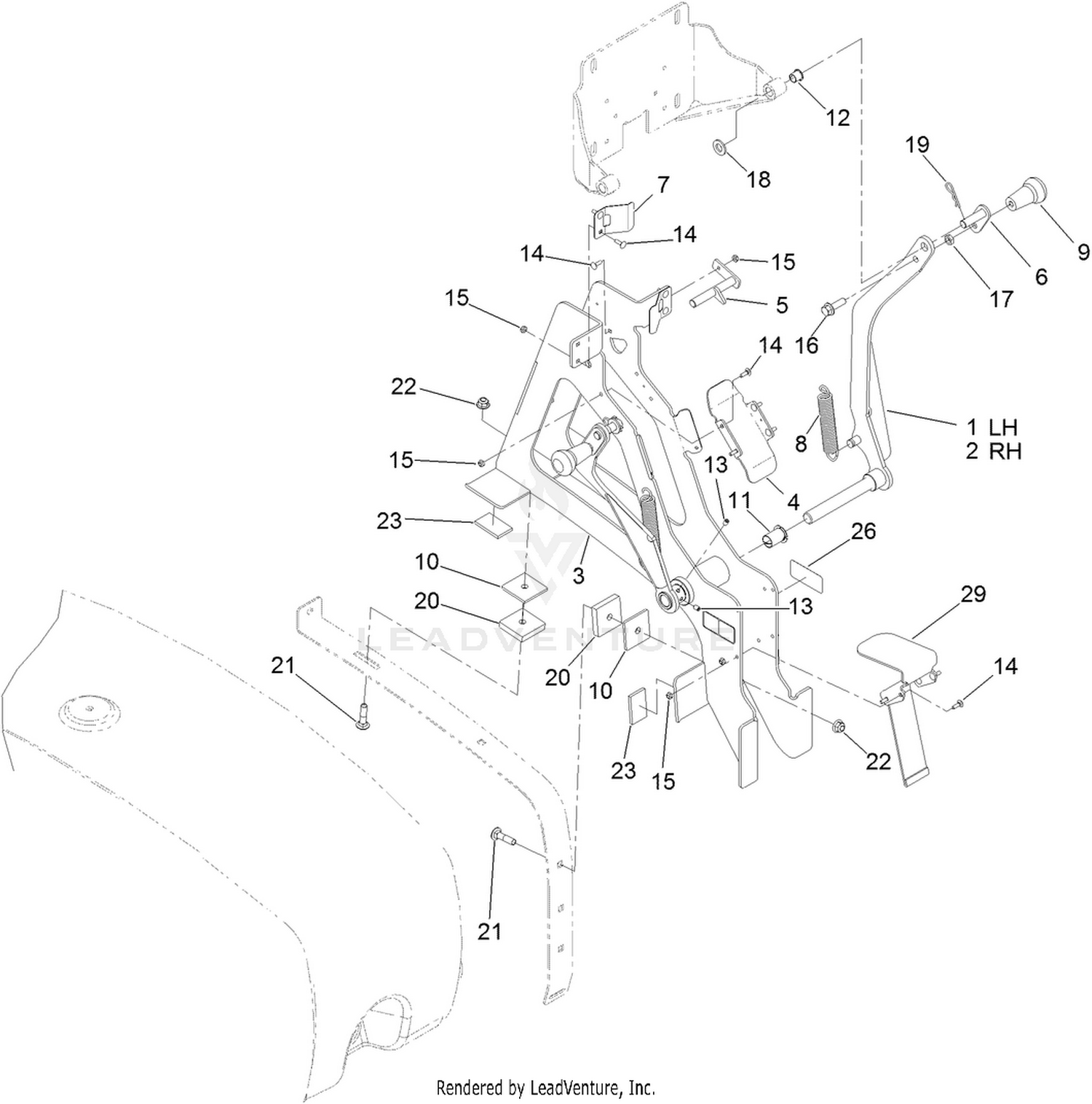

Eductor Mount Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-4907-03 | ARM-PIVOT, LH Price: $115.48 |
| 2 | 119-4908-03 | ARM-PIVOT, RH Price: $115.48 |
| 3 | 125-0962-03 | MOUNT-EDUCTOR Price: $417.12 |
| 4 | 119-4962 | PLATE-STRIKE Price: $27.19 |
| 5 | 120-8640 | LATCH-ROD Price: $75.26 |
| 6 | 120-0718 | PIVOT-PIN Price: $26.04 |
| 7 | 119-4951 | TAB-SPRING Price: $34.92 |
| 8 | 120-0722 | SPRING-EXTENSION Price: $21.48 |
| 9 | 99-7981 | KNOB-GRIP, SOFT Price: $41.72 |
| 10 | 125-0960 | SPACER-EDUCTOR Price: $50.82 |
| 11 | 100-8541 | BUSHING-A ARM Price: $3.49 |
| 12 | 256-257 | BUSHING-NYLINER Price: $3.19 |
| 13 | 3245-41 | SCREW-HSH Price: $2.09 |
| 14 | 1-807533 | BOLT-CARR Price: $0.99 |
| 15 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 16 | 3234-24 | SCREW-HHF Price: $3.19 |
| 17 | 3218-3 | NUT-JAM Price: $0.25 |
| 18 | 106-9888 | WASHER-FLAT Price: $0.49 |
| 19 | 3290-467 | PIN-HAIR Price: $0.27 |
| 20 | 125-0974 | SPACER-EDUCTOR Price: $28.30 |
| 21 | 3231-4 | SCREW-CARR Price: $3.59 |
| 22 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 23 | 120-4944 | PAD-FOAM Price: $3.11 |
| 26 | 93-6674 | DECAL-WARNING Price: $6.59 |
