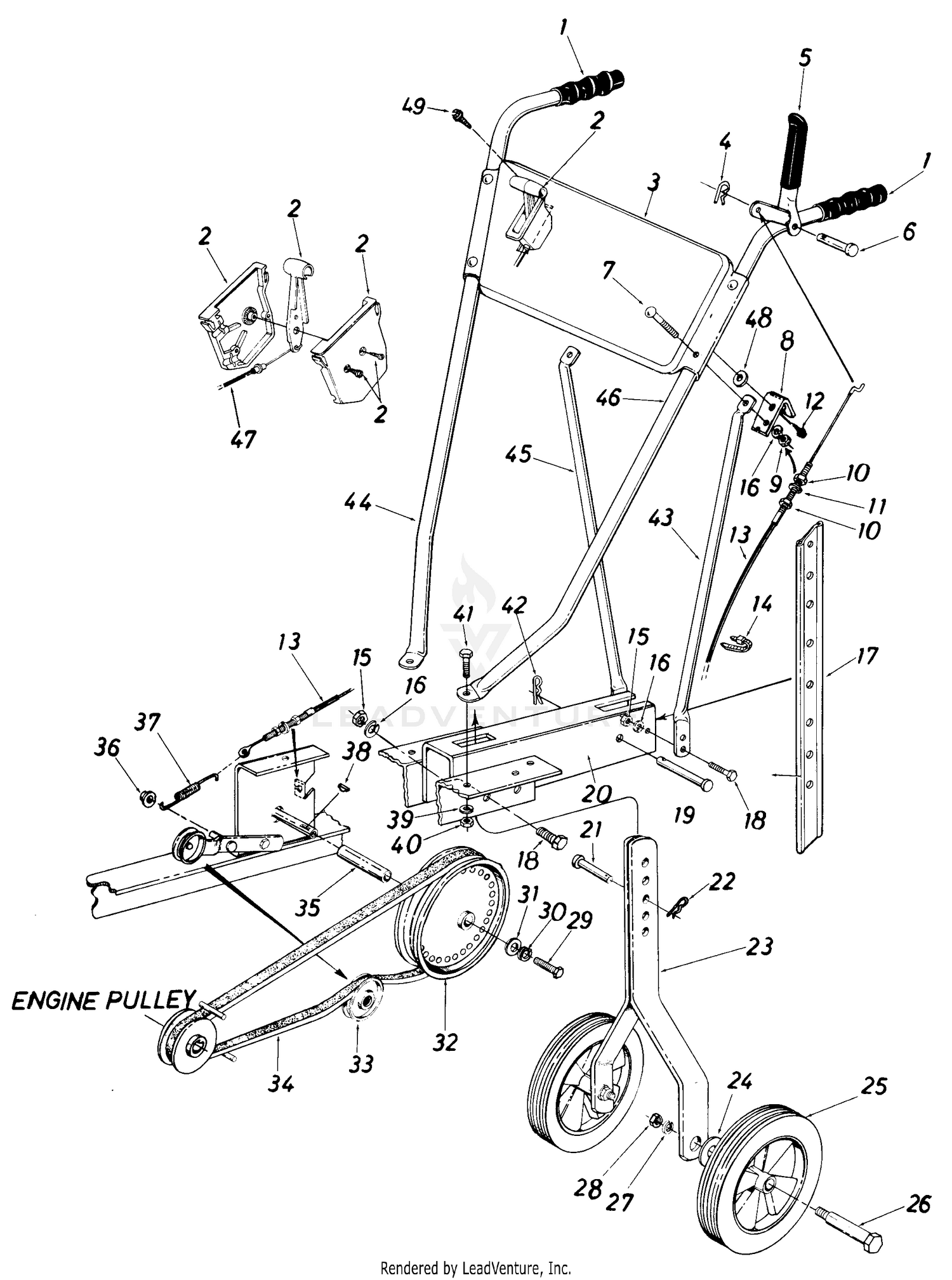

| Ref | Part Number | Description |
|---|
| 1 |
720-0204 |
Grip Price: $11.98 |
| 2 |
831-0823A |
Throttle Control Box Ass'y. This part replaces 831-0823. Price: $30.59 |
| 3 |
784-0036 |
PANEL Not Available Price: |
| 4 |
714-0104 |
Int. Coter Pin Price: $3.90 |
| 5 |
784-0008 |
GRIP ASSEMBLY-CLUTCH-L Not Available Price: |
| 6 |
711-0415 |
Clevis Pin Price: $4.04 |
| 7 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 8 |
15093 |
BRACKET-CL Not Available Price: |
| 9 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 10 |
712-0256 |
HEX JAM NUT 5/16-24 Not Available Price: |
| 11 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 12 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 13 |
946-0508 |
Clutch Control Cable This part replaces 746-0508. Price: $38.93 |
| 14 |
725-0157 |
Cable Tie Price: $3.46 |
| 15 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 16 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 17 |
04668 |
BAR-DEPTH Not Available Price: |
| 18 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 19 |
711-0761 |
Clevis Pin 1/2" Dia. x 2.50" Lg. Price: $18.47 |
| 20 |
784-0005 |
TAIL PIECE ASSEMBLY Not Available Price: |
| 21 |
911-0755 |
CLEVIS PIN Not Available This part replaces 711-0755. Price: |
| 22 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 23 |
06813 |
BRACKET AS Not Available Price: |
| 24 |
736-0253 |
Belleville Wash. 1/2" I.D. Price: $3.58 |
| 25 |
753-04874 |
WHEEL KIT REPLACEM'T Not Available This part replaces 734-0968. Price: |
| 26 |
738-0318 |
SCREW-SHLD Not Available Price: |
| 27 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 28 |
712-0200A |
Hex Ins. L-Nut 1/2-20 Thd. This part replaces 712-0200. Price: $3.85 |
| 29 |
710-0412 |
Hex Bolt 1/4-28 x .75" Lg. Price: $4.95 |
| 30 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 31 |
736-0176 |
Fl-Wash. .25" I.D. x .930" O.D. Price: $3.95 |
| 32 |
756-0389A |
PULLEY Not Available This part replaces 756-0389. Price: |
| 33 |
756-0137 |
FLAT IDLER PULLEY-2 1/4 OD X Not Available Price: |
| 34 |
954-0190 |
V-Belt 1/2" X 39.0" Lg. This part replaces 754-0190. Price: $28.78 |
| 35 |
750-0472 |
SPACER Not Available Price: |
| 36 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 37 |
732-0387 |
EXTENSION SPRING Not Available Price: |
| 39 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 40 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 41 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 42 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 43 |
749-0633 |
SUPPORT BRACKET (LH) Not Available Price: |
| 44 |
749-0626 |
Handle Bar-R.H. Price: Call Us |
| 45 |
749-0632 |
Handle Support Bracket R. H . Price: Call Us |
| 46 |
749-0627 |
HANDLE (LH) Not Available Price: |
| 48 |
736-0142 |
Fl-Wash. .281" I.D. x .50" O.D. Price: $3.95 |
