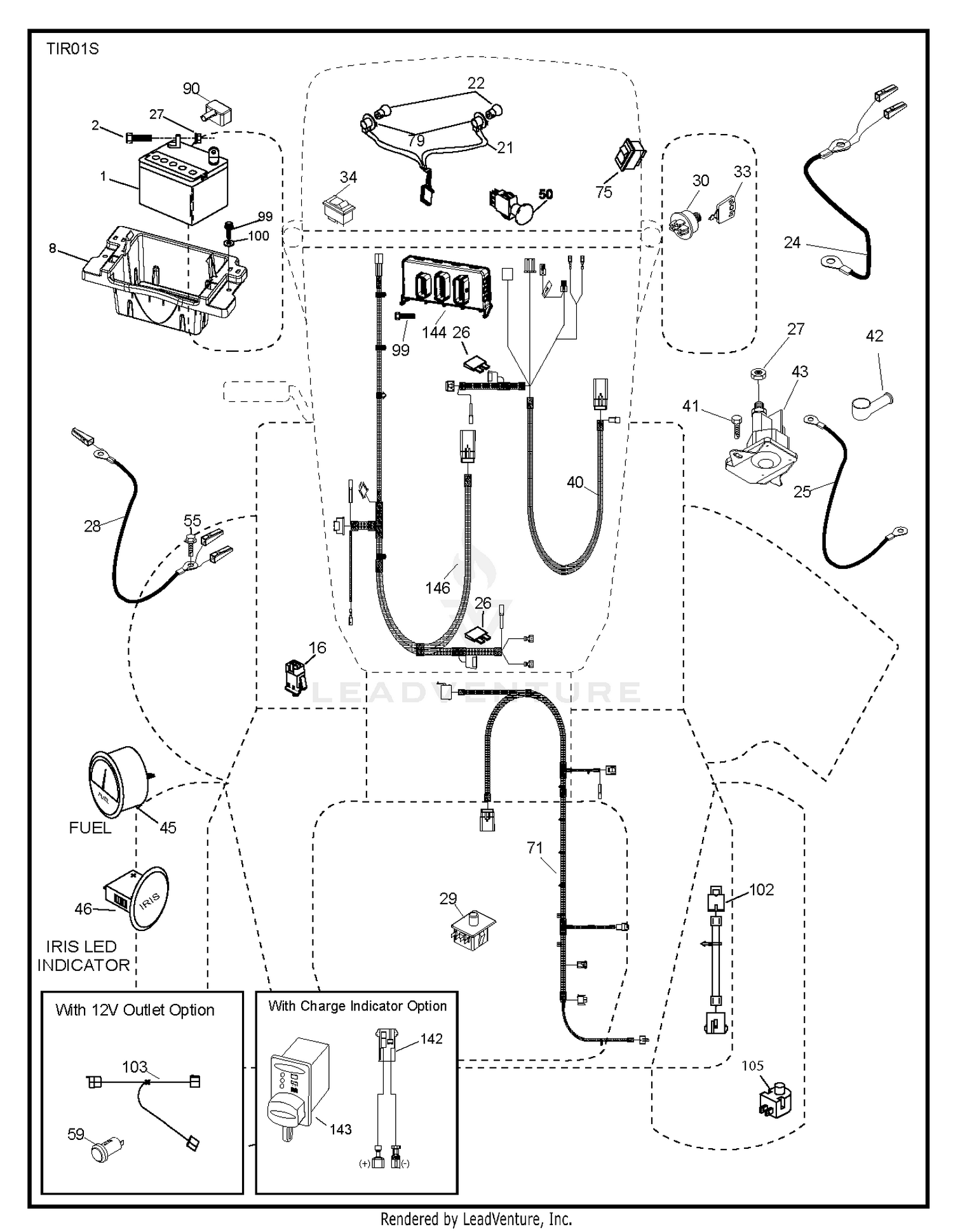

| Ref | Part Number | Description |
|---|
| 1 |
110-5339 |
SPACER Price: $8.01 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
136-8002 |
LIFT ARM #2 This part replaces 125-2912. Price: $382.73 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
136-8003 |
LIFT ARM #3 This part replaces 125-2913. Price: $382.73 |
| 4 |
63-8410 |
WASHER Price: $1.76 |
| 5 |
110-8874-03 |
CATCH Price: $42.44 |
| 6 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 9 |
107-2062 |
PIN Price: $124.98 |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 11 |
138-1248 |
PIVOT YOKE ASM This part replaces 107-2052. Price: $429.41 |
| 12 |
92-1298 |
PIN-LYNCH Price: $2.27 |
| 13 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
107-4027 |
CAP Price: $12.59 |
| 18 |
110-0922 |
HOOP-CHAIN Price: $15.10 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
84-2450 |
CHAIN-STRAIGHT, 4-LINK Price: $7.74 |
| 23 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 24 |
590223801 |
PRIMARY CABLE POSITIVE, TWO HA Price: $8.99 |
| 24 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 25 |
110-5345 |
WASHER Price: $2.29 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 26 |
119-8010-03 |
KICKSTAND Price: $34.60 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 29 |
587648401 |
SWITCH SEAT, 4 PIN NC/NO Price: $14.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
590193201 |
WIRING ASSY DASH, IRIS, 300, T Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 45 |
590645901 |
GAUGE.FUEL.LEVEL. ROUND.2" Price: $49.99 |
| 46 |
594721501 |
GAUGE.INDCTR.RND.2"FARIA.6ICNS This part replaces 590646001. Price: $109.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
590193302 |
WIRING ASSY CHASSIS, IRIS, 300 Price: $79.99 |
| 75 |
580366401 |
SWITCH.ON/OFF.(DIFF.LOCK) Price: $32.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 144 |
590568002 |
Controls This part replaces 590568001. Price: $199.99 |
| 146 |
590193401 |
WIRING ASSY ENGINE, IRIS, 300, Price: $49.99 |
