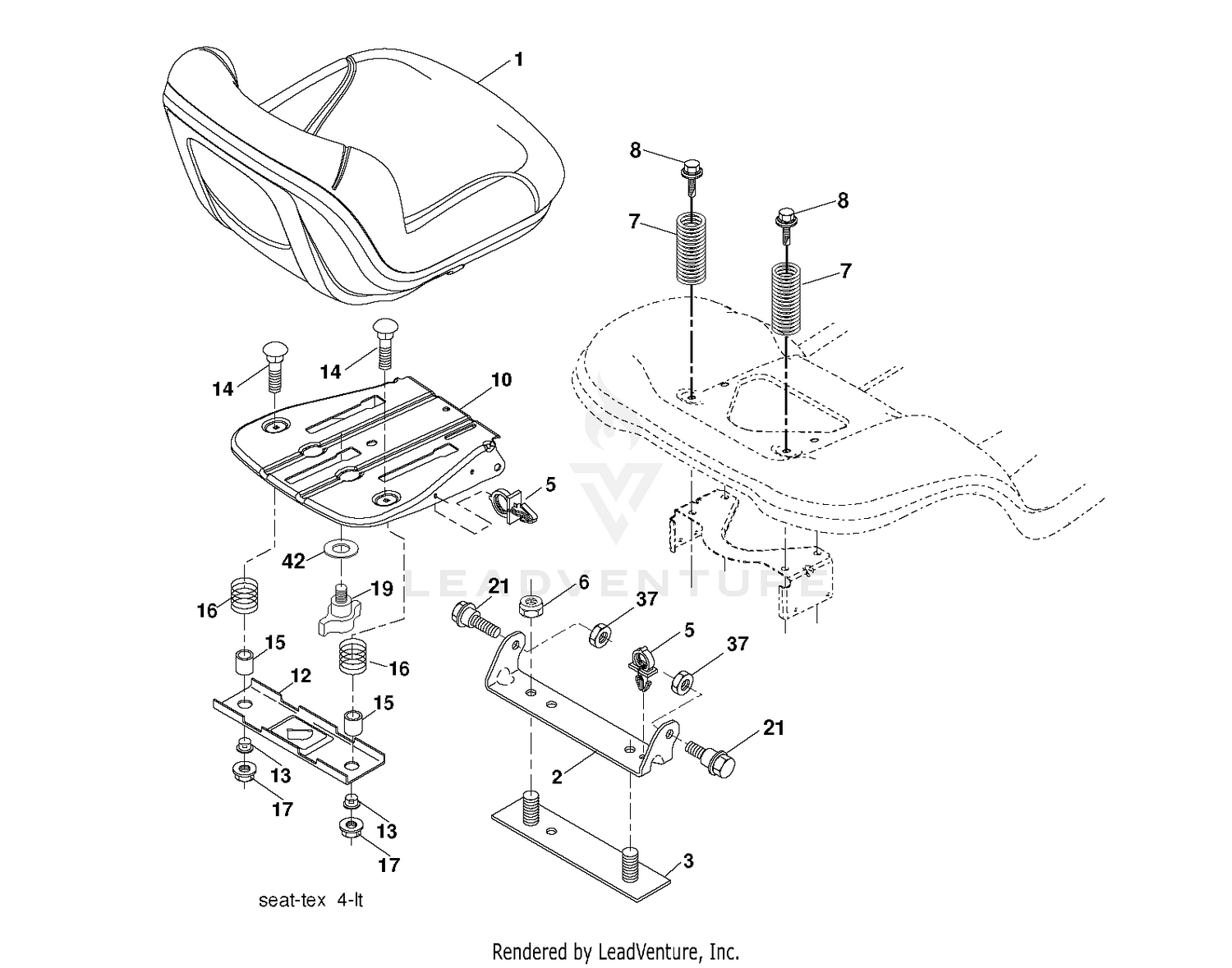

| Ref | Part Number | Description |
|---|
| 1 |
532439819 |
SEAT.TH130.GREY.HUSQ.TEX This part replaces 532197518. Price: $209.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
121-8341 |
SIDE MIRROR ASM Price: $98.81 |
| 4 |
121-8275 |
ARM-MIRROR, SIDE Price: $93.65 |
| 5 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
121-8343 |
INTERIOR MIRROR ASM Price: $92.20 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
32144-32 |
SCREW Price: $2.29 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
130-0594 |
DECAL-WARNING Price: $7.80 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
130-0611 |
DECAL-WINDOW, PIN Price: $6.59 |
| 10 |
130-5355 |
DECAL-WINDOW, HOOD Price: $6.59 |
| 10 |
532441805 |
PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX This part replaces 532199180. Price: $49.99 |
| 11 |
130-5357 |
DECAL-TRACTION PEDAL Price: Call Us |
| 12 |
532199370 |
BRKT.MNT.OPC.SW.SEAT. Price: $9.99 |
| 13 |
130-0586 |
SEAL-FOAM, FRAME ROOF Price: $11.11 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
121-8545 |
SEAL-FOAM, RH-UPPER Price: $32.31 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
121-8546 |
SEAL-FOAM, RH Price: $27.23 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
121-8547 |
SEAL-FOAM, LH Price: $49.00 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
130-0587 |
SEAL-FOAM, ROOF AIR FILTER Price: $2.89 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 19 |
532199372 |
KNOB.SEAT.ADJ. Price: $5.99 |
| 21 |
130-5855 |
SEAL-TUBE, REAR Price: $2.81 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
133-0982 |
TUBE-SEAL, FRONT Price: $2.27 |
| 23 |
136-1768-03 |
SHELF-MOUNT, FAN Price: $172.40 |
| 24 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 42 |
529846501 |
SERVICE KIT WASHER.CUP.SEAT WA This part replaces 532199371. Price: $3.99 |
