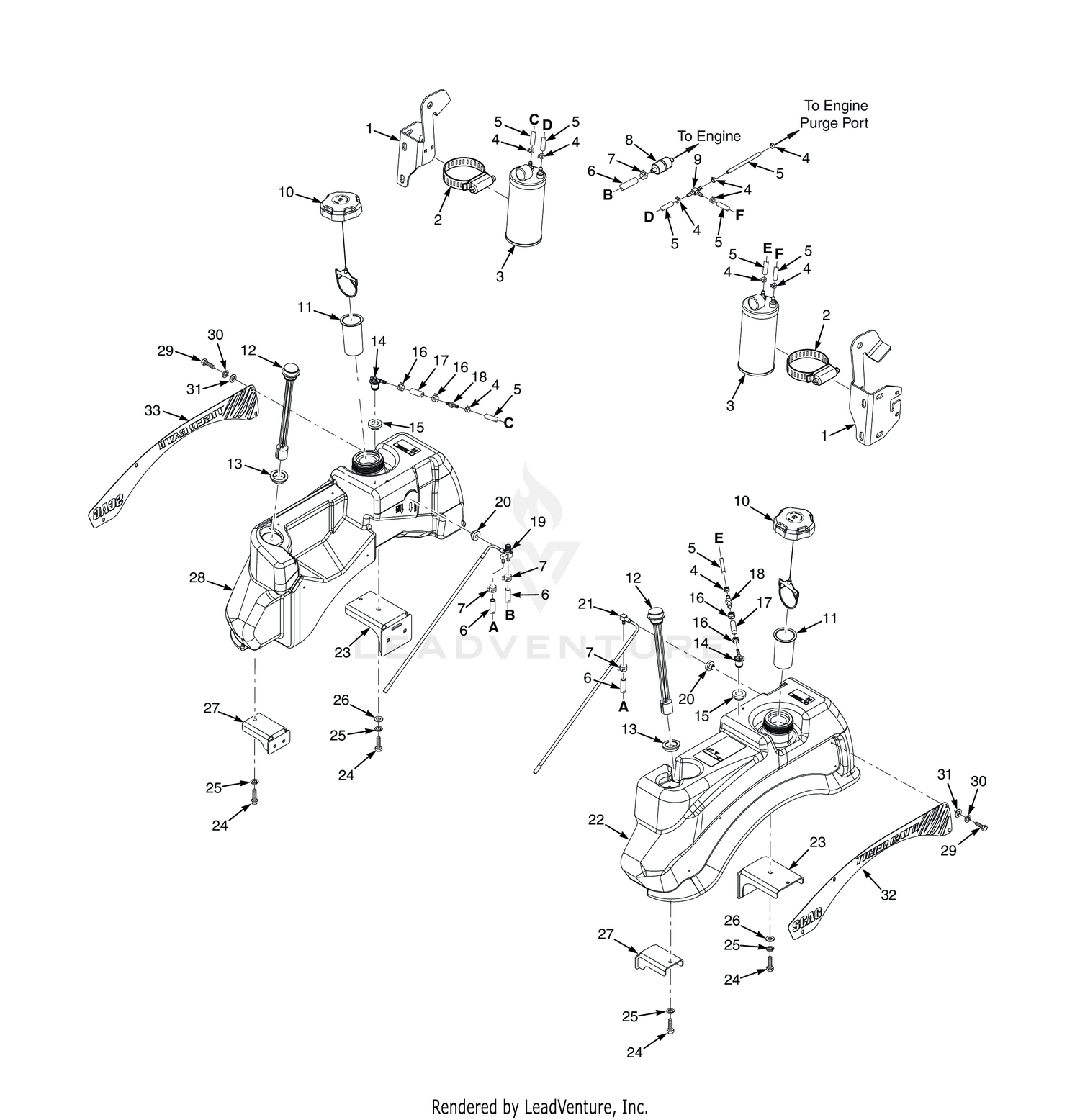

| Ref | Part Number | Description |
|---|
| 2 |
48136-17 |
Clamp, 3-1/2" Max. Dia. Price: Call Us |
| 3 |
484287 |
Carbon Canister - SVR-36A / SVR-48V Price: Call Us |
| 4 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 5 |
484345 |
Hose, Vapor Recovery 3/16" Price: Call Us |
| 6 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) Price: Call Us |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 9 |
48935-02 |
Tee, 3/16 x 3/16 x 3/16 Union, Hose Barb Price: Call Us |
| 10 |
484286 |
Fuel Cap w/ Tether (E.P.A.) Price: Call Us |
| 11 |
484279-01 |
Tube, Fuel Tank Insert - 4" Price: Call Us |
| 12 |
484323 |
Fuel Gauge Assembly Price: Call Us |
| 13 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 14 |
484333 |
Remote Vent, No Valve Price: Call Us |
| 15 |
484285 |
Grommet, Viton, Price: Call Us |
| 16 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 17 |
484347 |
Hose, 1/4" Vapor Recovery (order by inch) Price: Call Us |
| 18 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 19 |
485637 |
Fuel Tube Assembly, Includes Valve Price: Call Us |
| 20 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 21 |
484552 |
Fuel Tube Assembly, LH Price: Call Us |
| 22 |
463297 |
Fuel Tank Assembly, LH Price: Call Us |
| 23 |
427063 |
Mounting Bracket, Fuel Tank Rear Price: Call Us |
| 24 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 25 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 26 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 27 |
425862 |
Mounting Bracket, Fuel Tank Front Price: Call Us |
| 28 |
463463 |
FUEL TANK ASSY, RH STCII This part replaces 463299. Price: Call Us |
| 29 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 30 |
04030-02 |
Lockwasher, 1/4†Spring Price: Call Us |
| 31 |
04041-22 |
Flatwasher, 1/4 (.258 x .500 x .0598) Price: Call Us |
| 32 |
428700 |
Logo, Scag Tiger Cat II (RH) Price: Call Us |
| 428574 |
ROPS |
Mount, LH, 27FX / 28BV-EFI / 32BV Price: Call Us 428574 |
| 428575 |
ROPS |
Mount, RH, 27FX / 28BV-EFI / 32BV Price: Call Us 428575 |
| 484297 |
Fuel |
Cap w/Tethered - California Models Only Price: Call Us 484297 |
| 484366 |
Dust |
Filter, Carbon Canister Price: Call Us 484366 |
