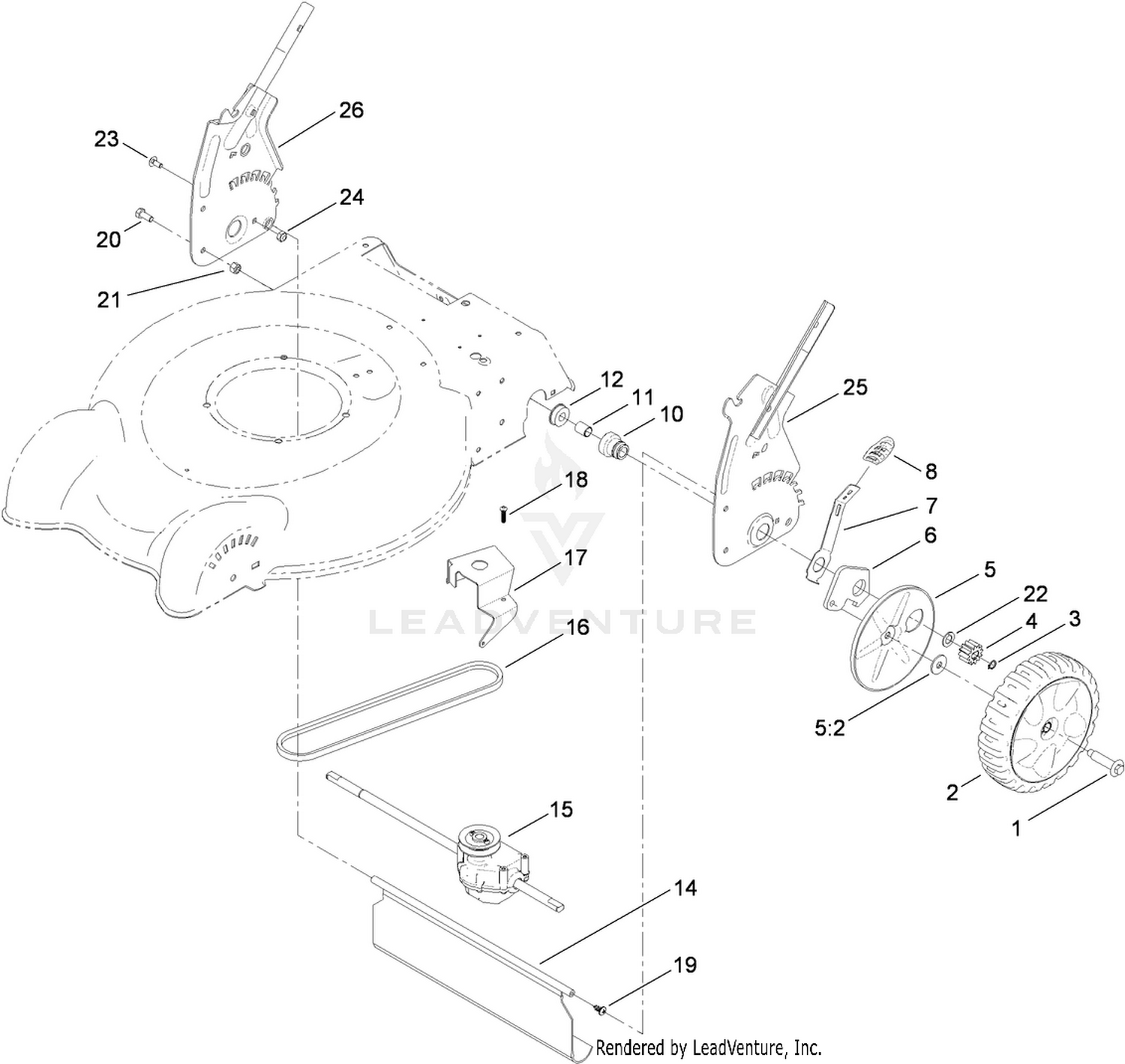

| Ref | Part Number | Description |
|---|
| 1 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 3 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 4 |
115-4668 |
GEAR-PINION Price: $9.95 |
| 5 |
131-4513 |
WHEEL COVER ASM This part replaces 117-4197. Price: $6.65 |
| 6 |
108-9781 |
ARM-PIVOT, REAR Price: $6.55 |
| 7 |
108-9780 |
ARM-SPRING Price: $6.67 |
| 8 |
105-3042 |
KNOB-LEVER, HOC Price: $3.28 |
| 10 |
108-9779 |
RETAINER-BUSHING, HOC Price: $9.09 |
| 11 |
108-9782 |
BUSHING-SLEEVE Price: $2.32 |
| 12 |
104-8699 |
BEARING-BALL Price: $3.28 |
| 14 |
120-7010 |
SHIELD-TRAILING This part replaces 112-8768. Price: $26.19 |
| 15 |
121-9181 |
TRANSMISSION ASM This part replaces 112-8831. Price: $75.32 |
| 16 |
110-9429 |
V-BELT Price: $12.03 |
| 17 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $8.85 |
| 18 |
108-7476 |
SCREW-PLASTITE Price: $0.61 |
| 19 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 20 |
322-3 |
SCREW-HH Price: $0.79 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 23 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 24 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 25 |
119-3804-03 |
HOC-LH Price: $19.94 |
