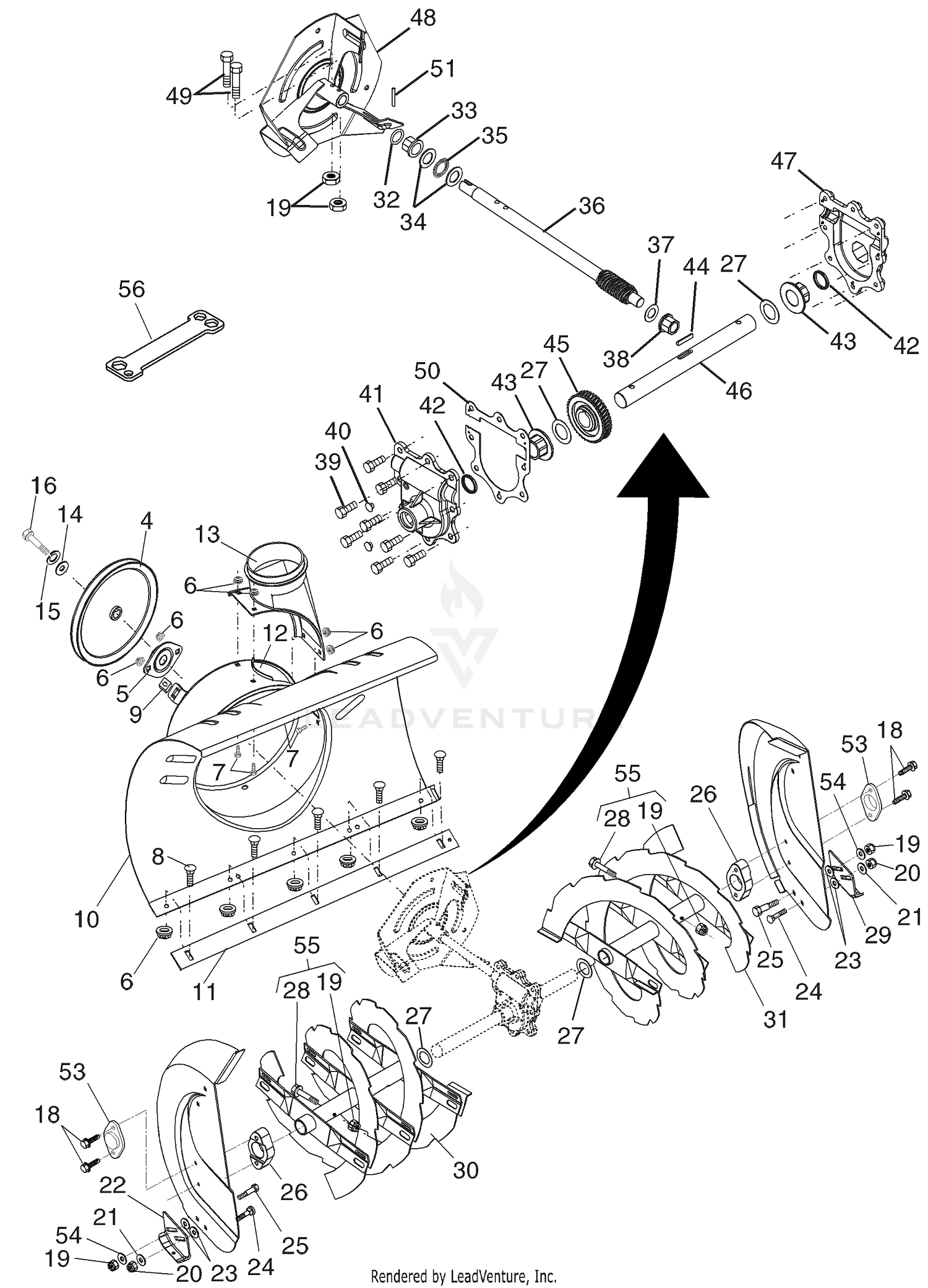

| Ref | Part Number | Description |
|---|
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
115-4105 |
GEAR CASE ASM This part replaces 98-9481. Price: $560.23 |
| 5 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 7 |
98-9592 |
SCREW Price: $0.70 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 8 |
98-9541 |
COVER-PUMP, OIL Price: $222.71 |
| 9 |
532178820 |
NUT, CAGE 3/8-16 Price: $5.99 |
| 9 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 10 |
532188167 |
AUGER HOUSING WELDMENT This part replaces 532188211. Price: $180.99 |
| 10 |
98-9372 |
O-RING Price: $1.66 |
| 11 |
532404932 |
BAR.SCRAPER.27.PNT.BLACK Price: $9.99 |
| 11 |
98-7547 |
O-RING Price: $0.92 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 12 |
98-9544 |
SPRING Price: $0.94 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 13 |
98-9380 |
BALL Price: $0.84 |
| 14 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 14 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 15 |
108-3841 |
FILTER-OIL This part replaces 99-8384. Price: $10.81 |
| 15 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 16 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 16 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 17 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 18 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 19 |
98-9356 |
BOLT Price: $2.06 |
| 20 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 20 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 21 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 21 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 22 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 22 |
532436125 |
PLATE.SKID.ADJ.RH.BLACK This part replaces 532184094. Price: $6.99 |
| 23 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 23 |
98-9437 |
BOLT Price: $1.05 |
| 24 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 24 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 25 |
532185600 |
SHOULDER BOLT Price: $3.99 |
| 25 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 26 |
532188170 |
BEARING RETAINER, PLASTIC Price: $7.99 |
| 26 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 532192090. Price: $1.00 |
| 29 |
532174762 |
PLATE.SKID.ADJUSTABLE.LH.BLACK This part replaces 532184093. Price: $7.99 |
| 30 |
532406022 |
AUGER ASSY-RH This part replaces 532199573. Price: $78.99 |
| 31 |
532435542 |
KIT.AUGER.27.LH.BB This part replaces 532199572. Price: $149.99 |
| 32 |
532174699 |
O-RING Price: $7.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 This part replaces 532174700. Price: $7.99 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
532407757 |
SHAFT, IMPELLER This part replaces 532174660. Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) Price: $22.99 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW Price: $3.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW Price: $22.99 |
| 42 |
532174698 |
SEAL, OIL Price: $4.99 |
| 43 |
532174701 |
BUSHING FLANGE 1" Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 45 |
598831601 |
Service Kit This part replaces 532174659. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER Price: $59.99 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) This part replaces 532174687. Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX Price: $7.99 |
| 51 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 53 |
532187925 |
BEARING.BALL.AUGER.SHAFT Price: $54.99 |
| 54 |
819091214 |
WASHER This part replaces 532053847. Price: $8.99 |
