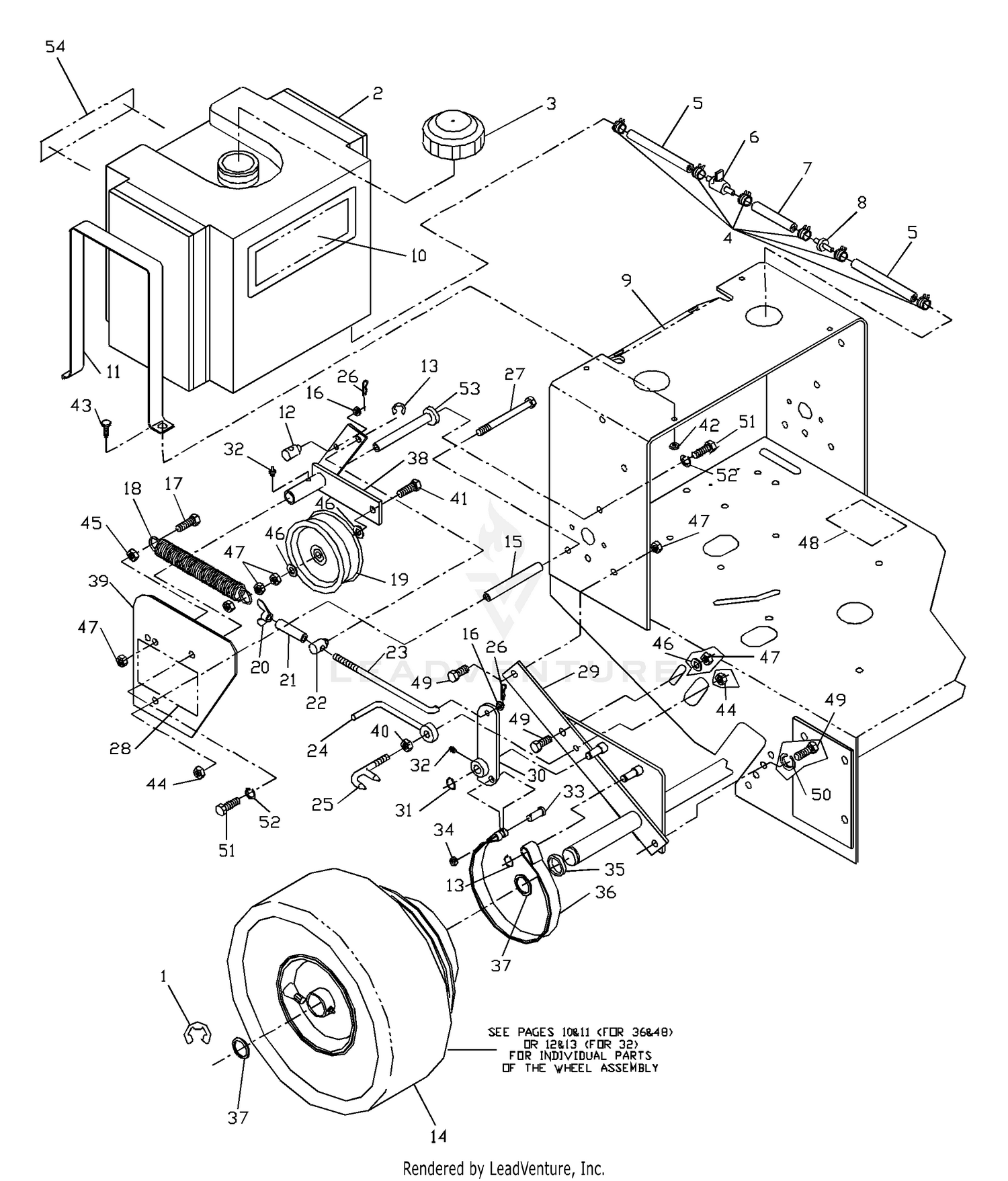

Wheel Drive & Axle Assembly

Wheel Drive & Axle Assembly

Parts (84)

RefPart NumberDescription
1 631059 SHAFT & LEV Price: Call Us
1 812000053 E RING HYT This part replaces 539912730. Price: $3.99
2 539100135 FUEL TANK Price: $94.46
2 631045 RET SPRING Price: Call Us
3 539914363 FUEL CAP Price: $9.99
3 631036 SHUTTER Price: $1.20
4 650506 SCREW Price: $0.87
5 651025 SCREW This part replaces 650417. Price: $1.18
6 539916325 FUEL VALVE Price: $9.99
6 630766 SPRING Price: $1.25
7A 631076 SHAFT & LEV Price: Call Us
9 539104724 REAR DECK W/DECALS Price: $235.81
9 630736 SHUTTER Price: $2.19
10 539104794 DECAL WH3614 Price: $15.12
10 539104795 DECAL W3212 Price: $9.71
10 539104796 DECAL - W3612 Price: $14.36
10 539104797 DECAL - W3614 Price: $12.03
10 539104828 DECAL, W3213 Price: $21.38
10 539104829 DECAL, W3613 Price: $17.99
10 539104831 DECAL, W4815 Price: $16.02
10 630898 ADJ SCREW Price: $1.69
11 539100012 TANK STRAPS Price: $22.99
11 630738 SPRING Price: $1.25
11A 630738 SPRING Price: $1.25
12 539976434 SWIVEL (SHORT) Price: $17.99
12 630739 WASHER Price: $1.25
12A 630739 WASHER Price: $1.25
13 539990870 E RING 3/8" Price: $2.99
13 630740 O RING Price: $1.49
13A 630740 O RING Price: $1.49
14 630737 ADJ SCREW Price: $3.95
15 539101992 SPACER, LONG Price: $5.99
15 630748 WELCH PLUG Price: $1.17
16 596134901 GSPH This part replaces 539990692. Price: $2.99
17 539976941 HCS 3/8C X 1 1/4 GR5 Price: $3.99
17 632554 WELCH PLUG This part replaces 630746. Price: $1.17
18 539101977 SPRING Price: $11.99
18 631049 SPRING Price: $1.20
19 539101955 PULLEY, IDLER Price: $22.99
19 630742 GASKET Price: $1.25
20 539100276 WINGNUT, 5/16C NYLOC Price: $2.28
20 630932A INLET NEEDLE Price: $4.39
21 539100097 SPACER Price: $5.99
21 630750A GASKET This part replaces 630750. Price: $3.00
22 539101940 SWIVEL Price: $22.99
22 630978 DIAPHRAGM Price: $4.49
23 539101939 BRAKE ROD Price: $4.99
23 630751 COVER Price: $8.60
24 539101973 BELT GUIDE Price: $11.99
24 650545 SCREW Price: $1.20
26 596580601 Pins This part replaces 539976988. Price: $3.99
26 632527 FUEL FITTING This part replaces 631775. Price: $6.03
27 539990145 HCS 5/16C X 5 Price: $2.99
27 631048 SPRING Price: Call Us
28 539104789 DECAL, CROWN H Price: $3.10
28 650569 SCREW Price: Call Us
29 630955 RETAINER--NLA Price: Call Us
30 539101934 BRAKE ARM, RIGHT Price: $29.99
30 539102135 BRAKE ARM, LEFT Price: $37.99
30 650545 SCREW Price: $1.20
31 596671501 Washers This part replaces 539101949. Price: $2.99
32 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
33 539102049 CLEVIS PIN Price: $2.99
34 539913847 NUT 3/8 PALNUT RTNG BLK PHOS Price: $3.99
35 539921960 SPACER Price: $2.99
36 539101945 BRAKE BAND Price: $29.99
37 596319701 Washers This part replaces 539916561. Price: $1.99
38 539102168 IDLER PLATE, RIGHT Price: $119.99
38 539102169 IDLER PLATE, LEFT Price: $109.99
39 539101969 FENDER Price: $59.99
40 596039201 GSPW Hardware This part replaces 539990585. Price: $2.99
41 539101350 TAPBOLT, 3/8C X 3 Price: $4.99
42 539990761 NUT 1/4C CENTER LOCK Price: $2.99
43 539977761 HCS 1/4C X 1 Price: $2.99
44 596580701 Nuts This part replaces 539990184. Price: $2.99
45 596583501 Washers This part replaces 539990613. Price: $2.99
46 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
47 595305901 Nuts This part replaces 539990546. Price: $2.99
48 596024201 DECALS.WARN.CA.SPKARREST/PROP This part replaces 539101881. Price: $1.99
49 596564401 Bolts This part replaces 539990563. Price: $3.99
50 596238701 Washers This part replaces 539990118. Price: $3.99
51 596580801 Bolts This part replaces 539990209. Price: $2.99
52 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99
53 539102188 SHOULDER PIVOT TUBE Price: $17.99
