| Ref | Part Number | Description |
|---|
| 1 |
76-1420 |
WHEEL-STEERING Price: $202.69 |
| 2 |
32121-111 |
PIN-ROLL Price: $2.39 |
| 3 |
85-6610 |
SHAFT-STEERING Price: $54.65 |
| 4 |
256-185 |
BUSHING Price: $19.18 |
| 5 |
92-5035 |
STEERING POST ASM Price: $105.83 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
65-8770 |
BUSHING-BELLCRANK Price: $5.35 |
| 8 |
98-0973 |
PIN-GROOVED Price: $2.10 |
| 9 |
85-9180 |
SPROCKET-STEERING Price: $56.99 |
| 10 |
95-0571 |
DISCONTINUED Price: Call Us |
| 11 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 12 |
3217-7 |
NUT-HEX Price: $0.28 |
| 13 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 14 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 15 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 16 |
251-165 |
BEARING-BALL Price: $104.65 |
| 17 |
84-7940 |
SHAFT-AXLE Price: $248.60 |
| 18 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 19 |
85-8290 |
TIRE-2PLY, KNOBBY Price: $120.96 |
| 20 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 21 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 22 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 23 |
92-5039 |
CHAIN-STEERING Price: $36.82 |
| 24 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 25 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 28 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 29 |
95-0600-01 |
FRAME ASM This part replaces 95-0600. Price: $2,207.18 |
| 30 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 31 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 32 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 33 |
85-9200 |
KNUCKLE-STEERING Price: $100.34 |
| 34 |
98-0996 |
STEERING SHFT KIT-SANDPRO This part replaces 98-0928. Price: $35.09 |
| 35 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 38 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 39 |
114-4643 |
WHEEL This part replaces 94-6116. Price: $149.61 |
| 40 |
94-6821 |
CLAMP-WIRE Price: $3.32 |
| 41 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
302-33 |
FITTING-GREASE Price: $2.31 |

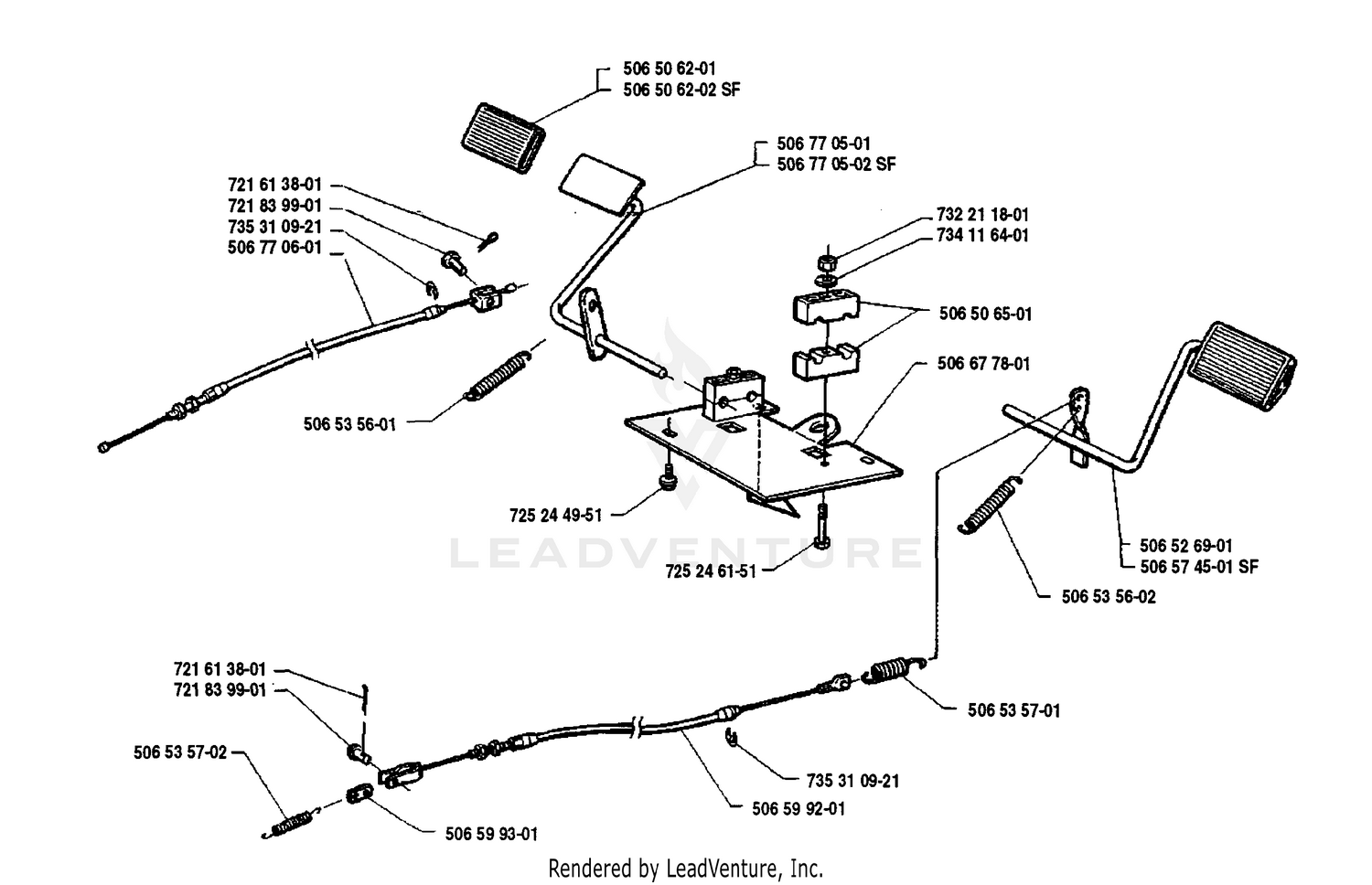

| 506506201 |
586966401 |
PEDAL RUBBER This part replaces 506506201. Price: $14.99 |
| 506506501 |
506506501 |
PEDAL SHAFT CLAMP Price: $6.99 |
| 506526901 |
506574501 |
BRAKE PEDAL ASSY This part replaces 506526901. Price: $59.99 |
| 506535601 |
506542501 |
SPRING This part replaces 506535601. Price: $6.99 |
| 506535602 |
506535602 |
SPRING Price: $4.99 |
| 506535701 |
506919101 |
SPRING This part replaces 506535701. Price: $5.99 |
| 506535702 |
506535702 |
SPRING Price: $5.99 |
| 506599201 |
506952601 |
CABLE This part replaces 506599201. Price: $44.99 |
| 506599301 |
506599301 |
CONNECTOR Price: $5.99 |
| 506677801 |
506677801 |
PLATE Price: $43.51 |
| 506770501 |
506770502 |
PEDAL This part replaces 506770501. Price: $54.99 |
| 506770601 |
506952501 |
CABLE This part replaces 506770601. Price: $49.99 |
| 721613801 |
721613801 |
SPLIT PIN Price: $1.99 |
| 721839901 |
721839901 |
CLEVIS PIN Price: $5.99 |
| 725244951 |
725244951 |
BOLT - M8X16 Price: $2.99 |
| 725246151 |
725246151 |
BOLT Price: $4.99 |
| 732211801 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 734116401 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
| 735310921 |
735310920 |
E-RING 5 This part replaces 735310921. Price: $3.99 |
