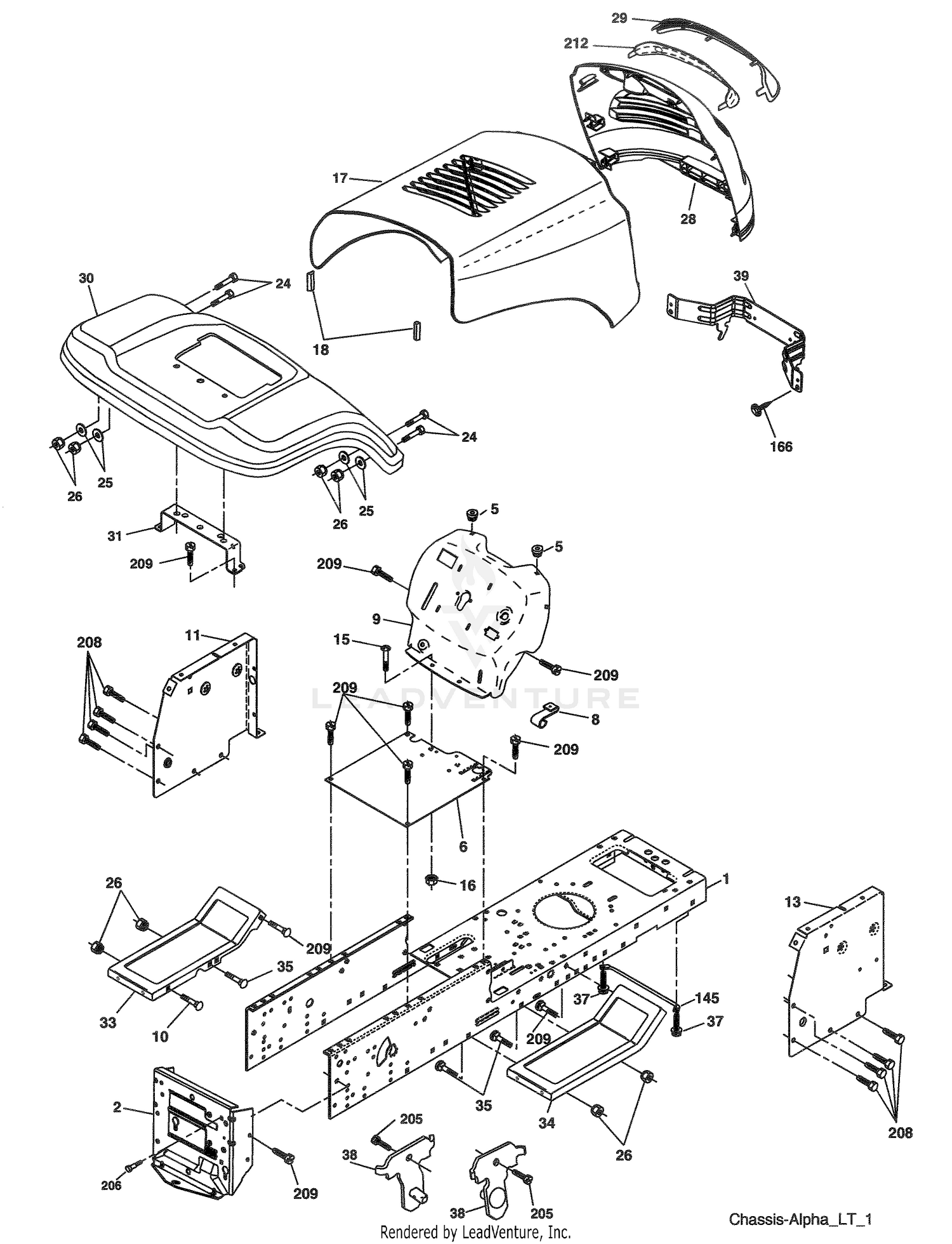

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 1 |
92-5671 |
STRIP-SEALING Price: $20.41 |
| 2 |
109-0308 |
HOSE-FUEL This part replaces 47-7450. Price: $10.99 |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 4 |
92-9266 |
STANDPIPE Price: $26.91 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
92-5670 |
STRIP-SEALING Price: $7.03 |
| 6 |
184419 |
Saddle Price: Call Us |
| 6 |
46-6560 |
BUSHING Price: $2.94 |
| 7 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 9 |
193518X013 |
Dash Price: Call Us |
| 9 |
92-9267 |
SENDER-FUEL Price: $118.15 |
| 10 |
62-7650 |
GASKET Price: $4.28 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 11 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 12 |
92-5674 |
NECK-FILL, FUEL Price: $188.78 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 13 |
92-5675 |
GROMMET Price: $21.90 |
| 14 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18 unc x 3/4 Price: Call Us |
| 15 |
92-9272 |
HOSE-FILL, FUEL Price: $52.93 |
| 16 |
73510500 |
Nut Keps 5/16-18 unc Price: Call Us |
| 16 |
93-1402 |
TANK-FUEL Price: $602.12 |
| 17 |
104-5266-03 |
BODY-LOWER Price: $2,297.30 |
| 17 |
187559X550 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 19 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 20 |
63-8410 |
WASHER Price: $1.76 |
| 21 |
323-5 |
SCREW-HH Price: $0.41 |
| 22 |
52-9590 |
LATCH-SCREEN Price: $6.57 |
| 23 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 24 |
92-5654-03 |
PANEL-OUT, CLEAN Price: $113.82 |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/lns 3/8-16 unc Price: Call Us |
| 29 |
187567X599 |
Lens Grille Bar Price: Call Us |
| 29 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 30 |
192525X550 |
Fender Price: Call Us |
| 30 |
321-2 |
SCREW-HH Price: $2.79 |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 31 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
92-5653-03 |
RING-CLAMP Price: $16.40 |
| 33 |
179716X550 |
Footrest Pnt LH Price: Call Us |
| 33 |
92-5269 |
BELLOWS Price: $193.76 |
| 34 |
179717X550 |
Footrest Pnt RH Price: Call Us |
| 34 |
66-6140 |
DECAL Price: $25.48 |
| 35 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 36 |
240-9 |
GROMMET Price: $3.25 |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 37 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 38 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 39 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 40 |
110-4112 |
HOSE-FUEL This part replaces 92-9283. Price: $12.60 |
| 41 |
92-6064 |
CLAMP-R Price: $2.04 |
| 42 |
322-3 |
SCREW-HH Price: $0.79 |
| 43 |
92-6069-03 |
SHIELD-EXHAUST Price: $27.08 |
| 44 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
32128-33 |
NUT-HF Price: $0.25 |
| 47 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 51 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 52 |
94-8270 |
BOLT-SHOULDER Price: $17.58 |
| 53 |
63-4220 |
SPRING-COMPRESSION Price: $16.11 |
| 54 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 55 |
94-8258 |
STRIP-SEAL Price: $3.70 |
| 57 |
110-5688 |
HOSE-FUEL This part replaces 100-6588. Price: $34.27 |
| 58 |
60-4350 |
GROMMET Price: $4.46 |
| 60 |
99-8351 |
FILTER-FUEL, INLINE Price: $63.90 |
| 61 |
321-11 |
SCREW-HH Price: $0.36 |
| 62 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 63 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 64 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
183823 |
Insert Lens Reflect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
