Home / OPE / Zero-Turn Lawn Mowers / Zenith E / 997303 (000101 - 000999) Zenith E 48 CE SD / Frame - 48" and 52" - SD

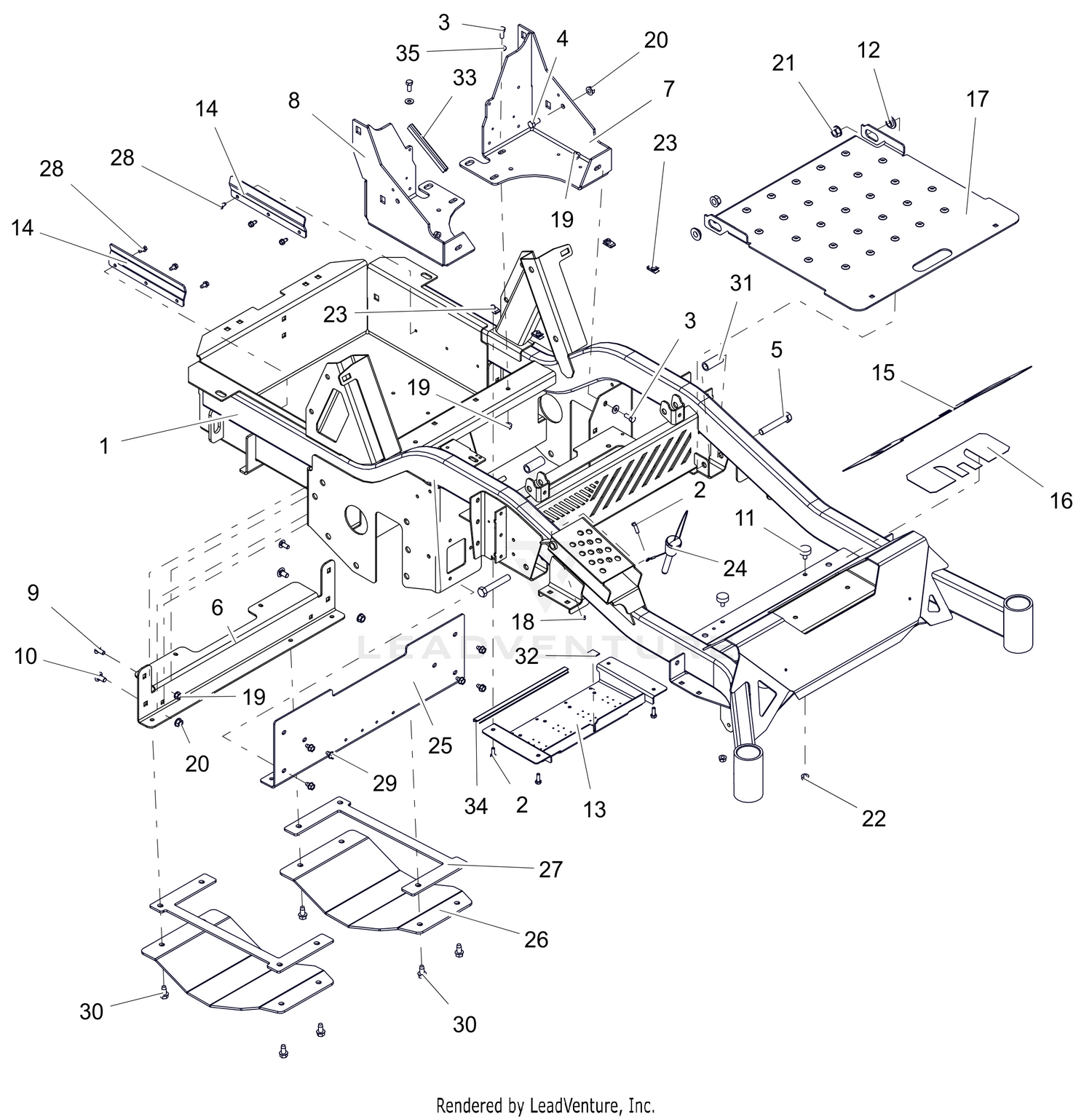

Frame - 48" and 52" - SD

Frame - 48" and 52" - SD

Parts (34)

RefPart NumberDescription
1 59701300 KIT,EV FRAME(SM)W/DECALS-A Price: $1,399.95
2 05901716 BLT, HEX .25-20X.75 G5 ZCC Price: $0.95
3 05901704 BLT,HEX .31-18X.75 G5 ZCC Price: $1.45
4 05901702 BLT,HEX .38-16X.75 G5 ZCC Price: $1.45
5 05901737 BLT, HEX .50-13X3.00 G5 ZCC Price: $4.45
6 09192659 BRKT, SKID PLATE MTG. (ORANGE) Price: Call Us
7 09179159 BRKT, SUPPORT ROPS -LH (ORANGE) Price: Call Us
8 09179059 BRKT, SUPPORT ROPS-RH (ORANGE) Price: Call Us
9 06200309 BLT, RHSSN.31-18X.750 G5 ZCC Price: $2.45
10 06200336 BLT, RHSSN .38-16X.75 G5 ZCC Price: $2.45
11 07533600 BUMPER, RUBBER Price: $10.95
12 03989100 BSHG-FLG .515X.750X.395X1.120 Price: $3.45
13 09192559 COVER, BOTTOM ACCESS -OPEN (ORANGE) Price: Call Us
14 09439659 DEFLECTOR, BATTERY -EV (ORANGE) Price: Call Us
15 05104800 GRIP, FRONT Price: $16.45
16 07801139 GRIP, TAPE FRONT Price: $8.95
17 59113600 PANEL, ACCESS Price: $107.45
18 06500821 NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45
19 06500840 NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95
20 06500901 NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95
21 06500902 NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95
22 06500815 NUT,SPNLK-FLG .31-18 G5 ZCC Price: $1.45
23 07009000 NUT-RTNR .25-20X.56 Price: $0.95
24 06800218 PIN- MAGNETIC .50X2.70 This part replaces 06800203. Price: $21.95
25 09192459 PLATE, FRONT FRAME (ORANGE) Price: Call Us
26 09180051 PLATE, SKID (BLACK) Price: $44.95
27 09180151 PLATE, SKID TENSION (BLACK) Price: $14.50
28 07400122 SCR-TAP .25-20X.50 HWH ZCC Price: $0.45
29 07400124 SCR,TAP .312-18X.50 HWH TR ZCC Price: $1.45
30 07400129 SCR,TAP .375-16X.75 HWH TR ZCC Price: $1.45
31 05501319 SPACER, .515X.75X1.83 Price: $4.45
32 07525100 STOP Price: $1.95
33 00918200 STRIP, COWL Price: $5.45
34 00918200 STRIP, COWL Price: $5.45
