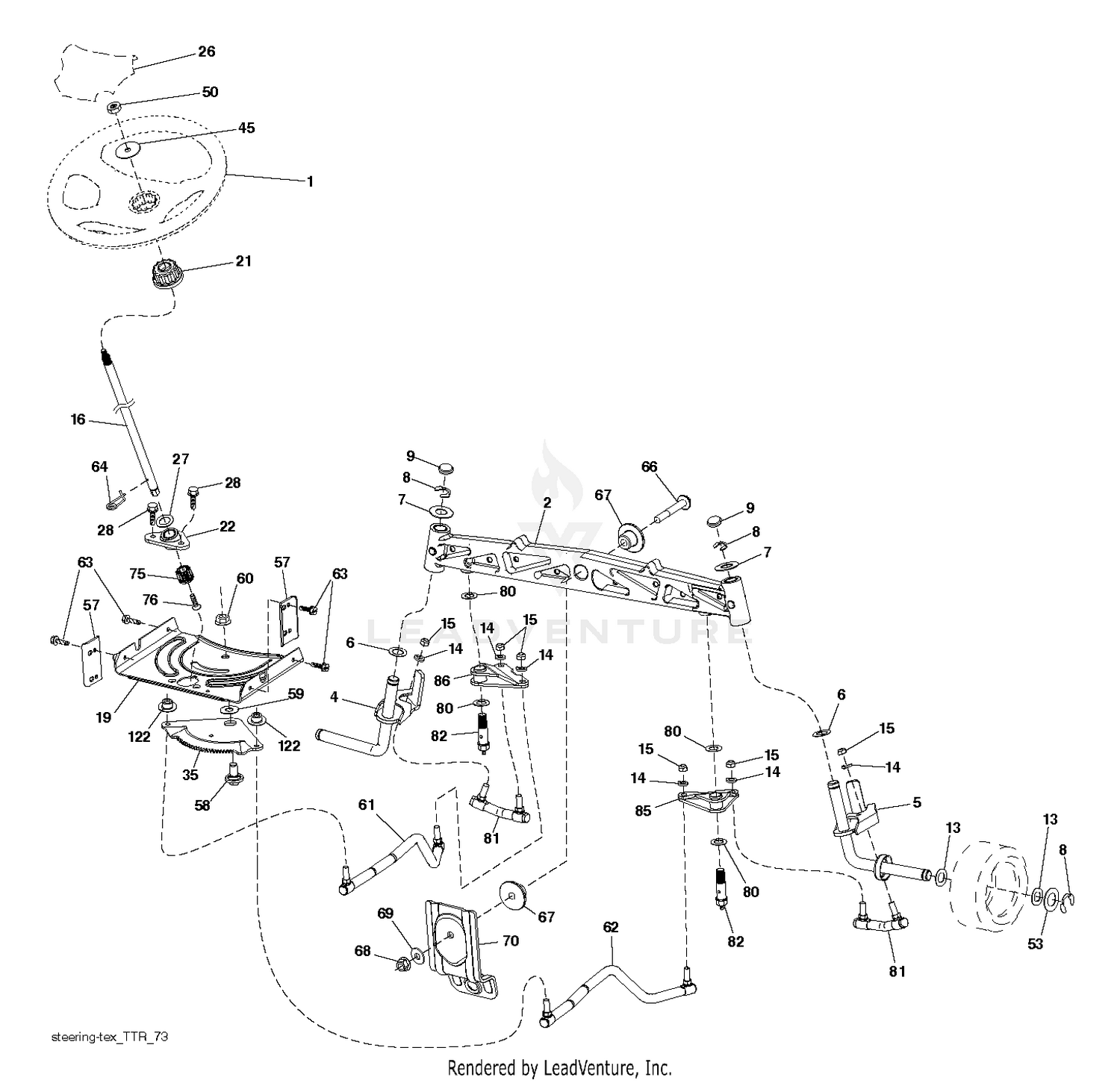

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
105-2919 |
HOOD ASM This part replaces 105-0067. Price: $791.02 |
| 2 |
583512701 |
SUBASM.AXLE.CAST.NZTR. This part replaces 532436870. Price: $169.99 |
| 5 |
340-70 |
NUT-LOCK Price: $2.10 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
323-14 |
SCREW-HH Price: $1.34 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
104-3432 |
HOSE-RADIATOR, BOTTOM Price: $126.04 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
104-3433 |
HOSE-RADIATOR, TOP Price: $146.62 |
| 11 |
32128-21 |
NUT-HF Price: $0.39 |
| 12 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 13 |
2412-39 |
CLAMP-R Price: $1.70 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
67-9030-03 |
GRILLE ASM This part replaces 105-2584-03. Price: $254.81 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
32103-2 |
NUT-WING Price: $0.68 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 17 |
5-0838 |
WASHER Price: $1.09 |
| 18 |
283-76 |
PIN-LYNCH Price: $6.67 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
84-5330 |
BRACKET-PROP, HOOD Price: $14.29 |
| 20 |
84-5380 |
STRAP-PROP, HOOD Price: $46.67 |
| 21 |
321-6 |
SCREW-HH Price: $0.25 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 24 |
105-2542-01 |
BRACKET-SUPPORT, SEAT Price: $93.70 |
| 25 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 27 |
68-9160 |
BRACKET Price: $16.82 |
| 28 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 30 |
86-7040 |
ROD-PROP, SEAT Price: $29.51 |
| 31 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 32 |
62-3010-01 |
BRACKET-RH Price: $11.57 |
| 33 |
62-3020-01 |
BRACKET-LH Price: $12.72 |
| 34 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 35 |
110-9662 |
HOSE-FUEL This part replaces 68-5470. Price: $31.52 |
| 35 |
583551401 |
GEAR.SECTOR.TEX.NZTR This part replaces 532440770. Price: $39.99 |
| 36 |
3290-55 |
RIVET-POP Price: $0.25 |
| 37 |
105-2549-01 |
GUARD-FLYWHEEL Price: $52.94 |
| 38 |
105-4265 |
TUBE-VENT Price: $25.94 |
| 39 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 40 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 80 |
532001370 |
THRUST WASHER Price: $4.99 |
| 81 |
597069702 |
Links This part replaces 532436887. Price: $9.99 |
| 82 |
532442147 |
SUBASM;PIVOT;BOLT;NZTR Price: $6.99 |
| 85 |
529846901 |
SERVICE KIT SUBASM.PIVOT.RH.NZ This part replaces 532441873. Price: $17.99 |
| 86 |
583561001 |
SUBASM.PIVOT.LH.NZTR This part replaces 532441872. Price: $27.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
