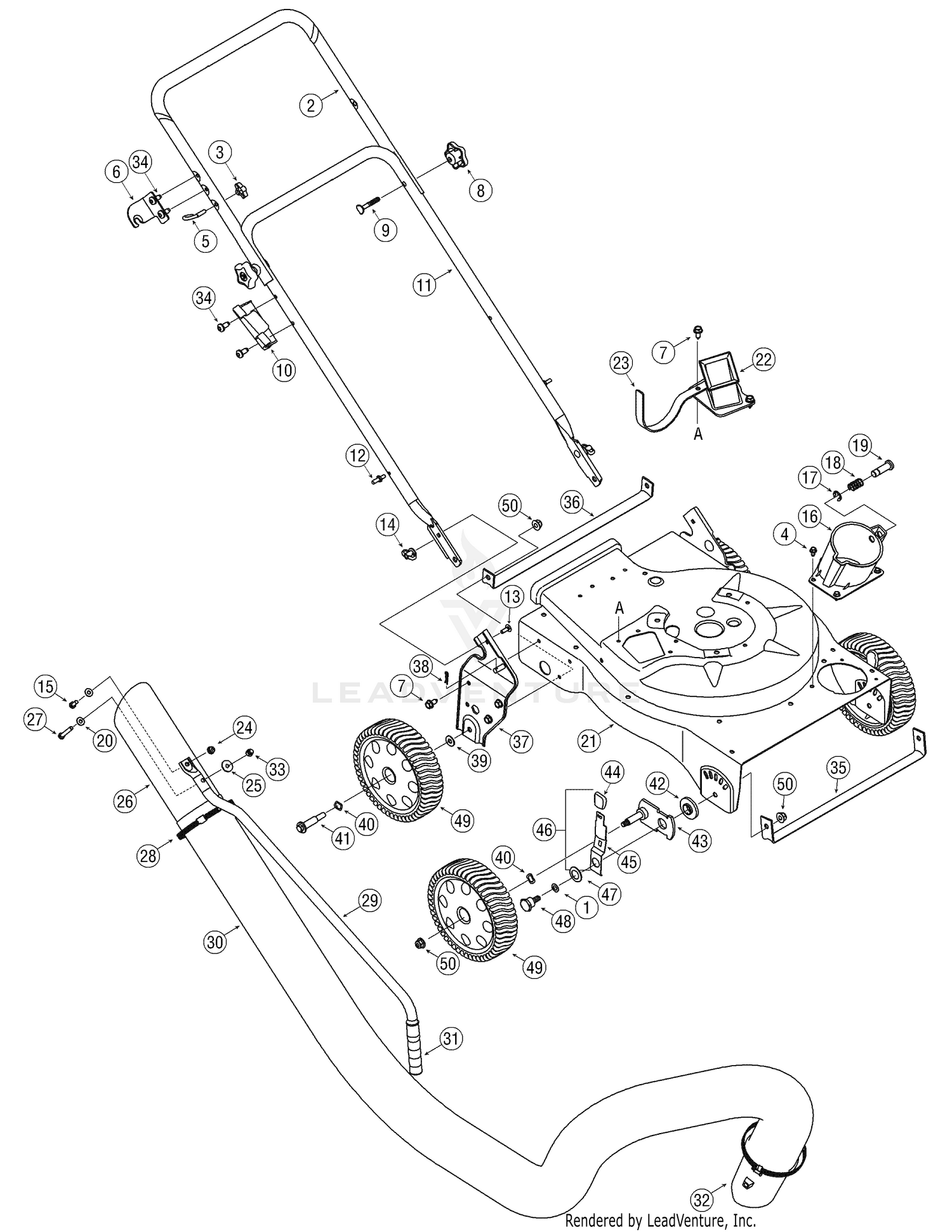

| Ref | Part Number | Description |
|---|
| 1 |
736-0314 |
Thrust Washer.375 ID x.70 OD Price: $6.01 |
| 2 |
749-04172-0637 |
Upper Handle This part replaces 749-04172. Price: $34.43 |
| 3 |
720-0279 |
Knob Price: $3.93 |
| 4 |
710-0599 |
Screw, 1/4-20 x.500 Price: $3.86 |
| 5 |
710-1205 |
Eye Bolt Price: $3.53 |
| 6 |
781-1056-0637 |
UPPER HANDLE BRACKET This part replaces 781-1056. Price: $21.30 |
| 7 |
710-0726 |
Hex Cap Screw 5/16-12 x.750 Price: $3.82 |
| 8 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 9 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 10 |
731-04911 |
Nozzle Handle Clip Price: $10.05 |
| 11 |
749-04165-0637 |
LOWER HANDLE This part replaces 749-04165. Price: $38.11 |
| 12 |
711-1293 |
Studs Price: $4.21 |
| 13 |
710-0703 |
Carriage Screw 1/4-20 x.75 Price: $3.66 |
| 14 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 15 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 16 |
681-0195 |
Hose Base Adapter Assembly (Incl. Ref. 17-19) Price: $35.89 |
| 17 |
916-0104 |
E-Ring This part replaces 716-0104. Price: $3.37 |
| 18 |
932-3035 |
Compression Spring This part replaces 732-3035. Price: $9.73 |
| 19 |
711-1571 |
Clevis Pin Price: $7.58 |
| 20 |
736-3020 |
Flat Washer.271 ID x.630 OD Price: $5.94 |
| 21 |
781-04071 |
UPPER FLAIL HOUSING Not Available Price: |
| 22 |
681-0122 |
Chipper Chute Assembly Price: $70.49 |
| 23 |
781-1058-0637 |
HANGAR BRACKET Not Available This part replaces 781-1058. Price: |
| 24 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 25 |
748-0457 |
Spacer Price: $4.74 |
| 26 |
731-2478A |
HOSE NOZZLE 3.875 This part replaces 731-2478. Price: $68.17 |
| 27 |
710-3288 |
Hex Cap Screw 1/4-20 x 2.625 Price: $5.94 |
| 28 |
723-0295 |
Adjustment Clamp Price: $9.43 |
| 29 |
749-1270A |
NOZZLE HANDLE This part replaces 749-1270. Price: $61.84 |
| 30 |
764-0648A |
VACUUM HOSE 4.0 x 75.0 This part replaces 764-0648. Price: $144.99 |
| 31 |
07071 |
Handle Grip Price: $10.82 |
| 32 |
731-2292 |
Hose Adapter Price: $35.59 |
| 33 |
712-0442 |
Cap Lock Nut, 1/4-20 Price: $6.01 |
| 34 |
710-1611B |
TT Screw, 5/16-18 x .750 Price: $5.94 |
| 35 |
781-04082-0637 |
Front Wheel Support Brace This part replaces 781-04082. Price: $25.01 |
| 36 |
781-04081-0637 |
Rear Wheel Support Brace This part replaces 781-04081. Price: $24.01 |
| 37 |
981-0155A |
Handle Brkt Ass’y LH Not Available This part replaces 681-0155A. Price: |
| 37 |
981-0156A |
Handle Bracket Ass’y RH This part replaces 681-0156A. Price: $32.19 |
| 38 |
714-0104 |
Cotter Pin Price: $3.90 |
| 39 |
736-0105 |
Bell Washer.401 ID x.870 OD Price: $3.96 |
| 40 |
736-0232 |
Wave Washer.531 ID x.781 OD Price: $4.02 |
| 41 |
738-1015 |
Shoulder Screw 3/8-16 Price: $9.41 |
| 42 |
741-0751 |
Height Adjustment Bearing Price: $7.50 |
| 43 |
987-02094 |
Pivot Arm This part replaces 687-02094. Price: $25.54 |
| 44 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 45 |
732-1026 |
Spring Lever Price: $5.77 |
| 46 |
687-02051 |
Height Lever Assembly (Incl. Ref. 44-45) Price: $8.27 |
| 47 |
736-0741 |
Bell Washer.760 ID x.25 OD Price: $3.99 |
| 48 |
738-1172 |
Shoulder Screw,.750 x.500 Price: $5.01 |
| 49 |
753-08091 |
WHEEL KIT IDLE 8 x 2 This part replaces 734-04033. Price: $40.81 |
