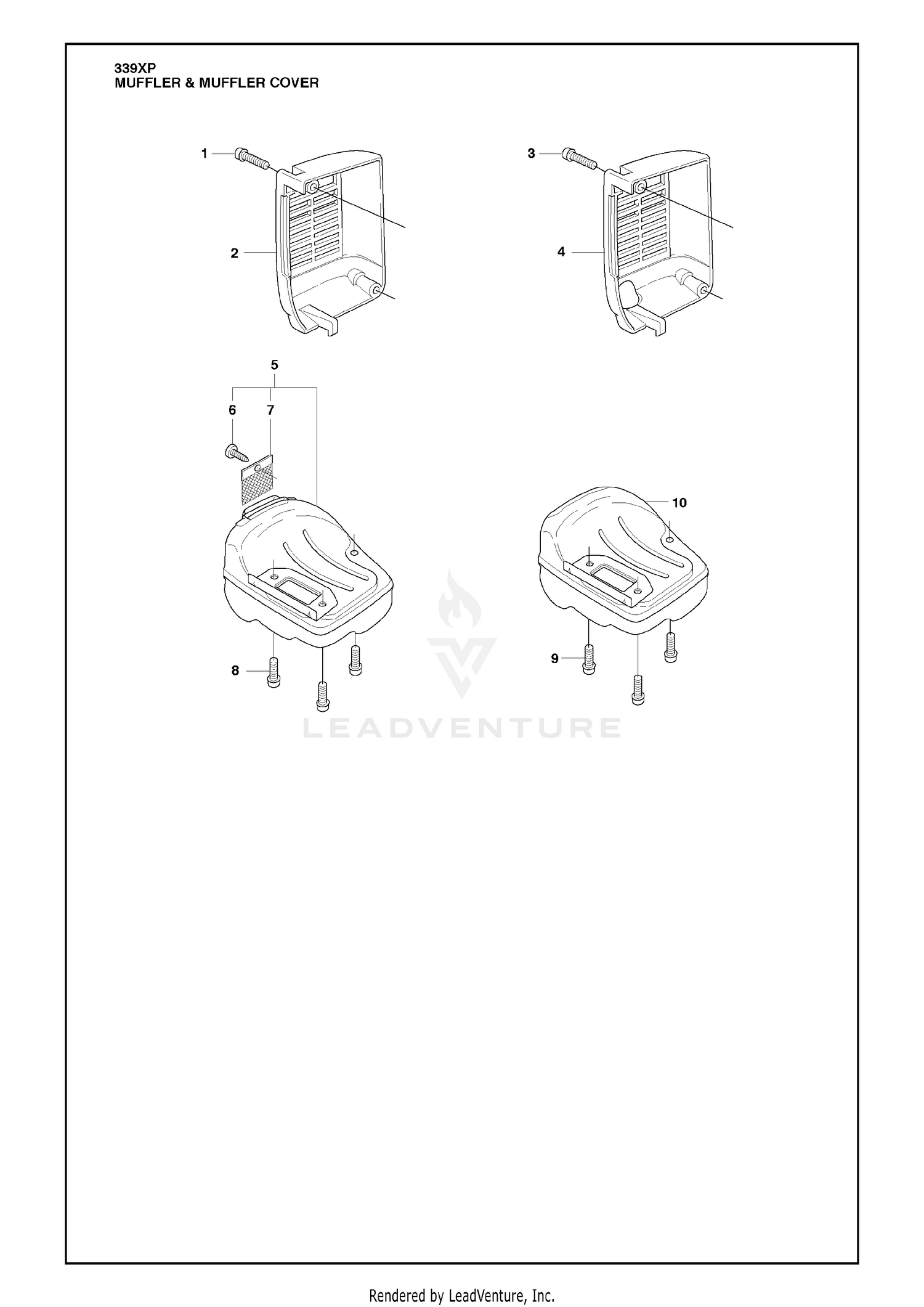

Muffler & Muffler Cover
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503215825 | SCREW Price: $2.99 |
| 1 | 99-7575 | BOLT Price: $4.00 |
| 2 | 537055401 | MUFFLER COVER Price: $24.99 |
| 2 | 99-7570 | BEARING-ROLLER, TAPER Price: $61.91 |
| 3 | 503215825 | SCREW Price: $2.99 |
| 3 | 95-7535 | CASE-BEARING Price: $104.73 |
| 4 | 106-1065 | O-RING This part replaces 99-7571. Price: $9.02 |
| 4 | 537190701 | COVER Price: $24.99 |
| 5 | 503930303 | MUFFLER Price: $44.99 |
| 5 | 99-7572 | COLLAR-SEAL, OIL Price: $21.01 |
| 6 | 106-1066 | O-RING This part replaces 99-7573. Price: $5.71 |
| 6 | 724128759 | SCREW Price: $2.99 |
| 7 | 503821701 | SCREEN Price: $5.99 |
| 7 | 99-7574 | SEAL-OIL Price: $4.42 |
| 8 | 503200216 | SCREW Price: $3.99 |
| 8 | 99-7559 | WASHER-LOCK Price: $9.82 |
| 9 | 503200216 | SCREW Price: $3.99 |
| 9 | 99-7560 | NUT-LOCK Price: $27.76 |
| 10 | 99-7550 | SHIM 0.1 Price: $4.34 |
