Home / OPE / *Legacy / Sickle Bar Mowers / 34064 5 HP-42" Elec (S/N 340640500101-340641599999) / General Assembly

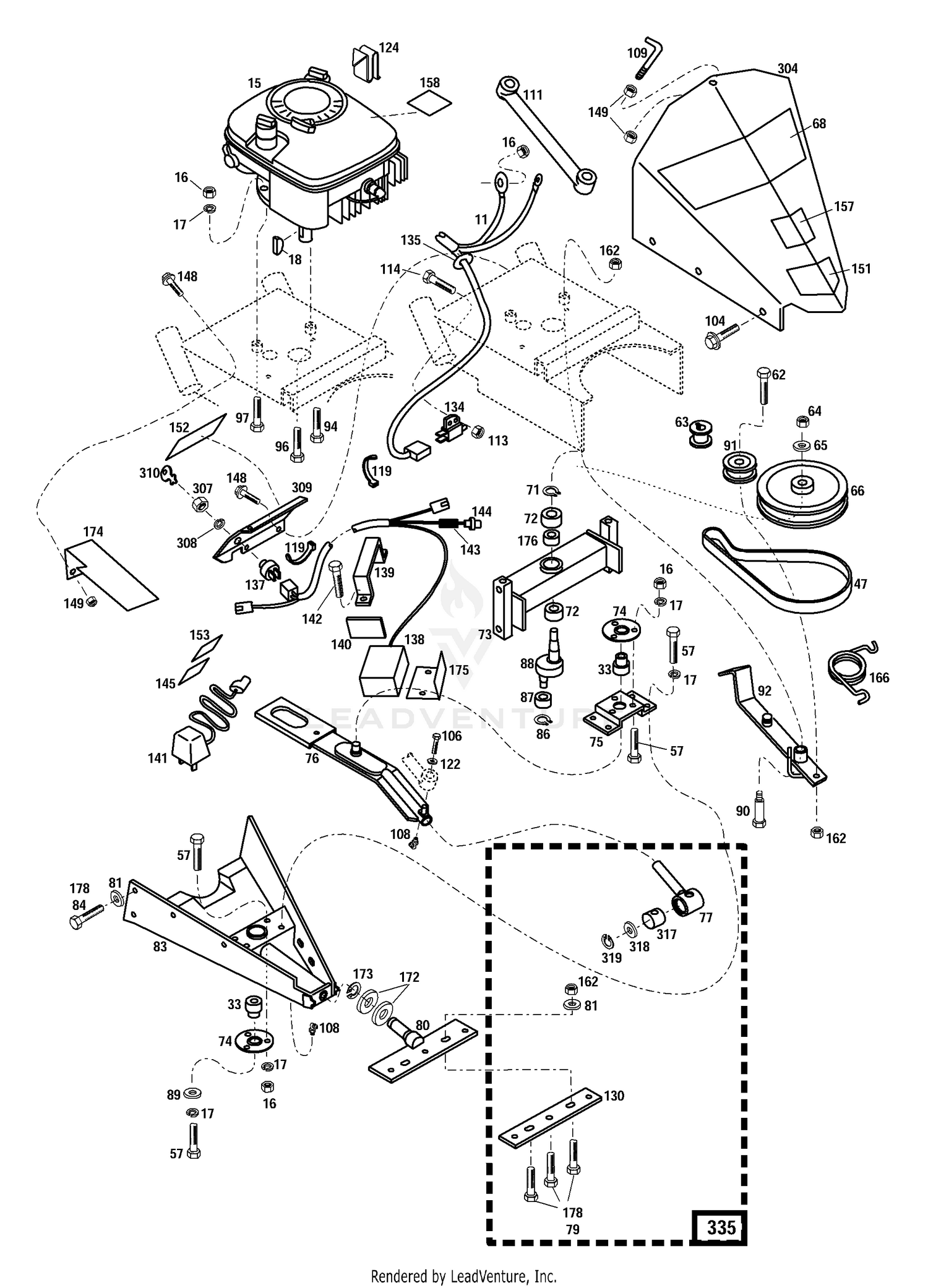

General Assembly

General Assembly

Parts (62)

RefPart NumberDescription
16 712-3010 HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89
17 936-0104 Hairpin Clip This part replaces 1110645. Price: $4.20
18 1100275 KEY-WOODRU Not Available Price:
33 1766626 INSERT-BEARING Not Available Price:
47 1767142 V-Belt Price: $31.78
57 1100044 Hex Hd. Capscrew, 5/16-18 x 3/4 Price: $3.76
62 710-0520 SCREW 3/8-16 x 1.50 This part replaces 1100047. Price: $3.93
63 1766650 ENGINE PULLEY Not Available Price:
64 1186216 HEX NUT 5/ Not Available Price:
65 736-0237 Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90
66 1766651 SHEAVE-ECC Not Available Price:
68 1766926 DECAL, TROY-BILT Not Available Price:
71 716-0197 RETAINING RING Not Available This part replaces 1185102. Price:
72 1766657 BALL BEARING Not Available Price:
73 1773137001 Housing Assembly Price: Call Us
74 1766664 RETAINER-B Not Available Price:
75 1766665 SUPT-BEARING UPPER Not Available Price:
76 1773565 ASSM-ECCENTRIC ARM E-COAT Not Available Price:
79 00011444 SCREW 3/8-16 x 1.25 GR8 Not Available This part replaces 1773452. Price:
80 1772711001 Assm-blade Not Available Price:
81 1773272 WASHER .905X.390X. Not Available Price:
83 1773218010 Front Housing Assembly Price: Call Us
84 1773423 SCR-HH 3/8 Not Available Price:
86 1118809 RING-RETAIN EXT .6 Not Available Price:
87 1766795 BEAE-RINGCCENTRIC Not Available Price:
88 1766895 SHAFT-ECCENTRIC Not Available Price:
89 1729245 WASHER-.31 Not Available Price:
90 1736221 Shoulder Screw Price: Call Us
91 956-3054 FLAT IDLER WITH FLANGES 2.75 This part replaces 1713803. Price: $45.71
92 1767715001 LEVER-BLAD Not Available Price:
94 710-0189 Hex Screw, 5/16-18:3.00 This part replaces 1111610. Price: $5.30
96 1111613 SCR-HH 5/1 Not Available Price:
97 710-1266 Screw, 5/16-18, 3.50, Gr5 This part replaces 1111611. Price: $8.66
104 710-1260A SCREW 5/16-18 x .750 This part replaces 1740496. Price: $3.34
106 710-0106 HEX SCREW 1/4-20 x 1.25 This part replaces 1100806. Price: $3.66
108 737-3004 Fitting, Lube, 90ø 1/4-28 Tapper Thd This part replaces 1767609. Price: $10.22
109 1766704 HOOK-UPPER .25 Not Available Price:
111 1766805 DIVERTER-WEED BUNG Not Available Price:
113 712-0272 Hex Sems Nut 010-24 Thd. This part replaces 1185985. Price: $3.58
114 710-0425 Screw, Machine, #10-24, 0.625 This part replaces 1758070. Price: $4.21
122 736-0159 Washer This part replaces 1100254. Price: $3.71
124 1766558 CLIP-CABLE Not Available Price:
130 1767687001 BRACKET-DO Not Available Price:
134 1751340 SWITCH Not Available Price:
135 1766947 GROMMET Not Available Price:
148 1724492 SCREW Not Available Price:
149 1186389 Hex Flange Lock Nut, 1/4-20 Price: $3.05
151 1739687 Decal, OPEI Danger Price: $6.36
152 1767077 DECAL-WARNING Not Available Price:
153 1901899 DECAL-AMERICAN LEG Not Available Price:
157 1767141 DECAL-DNG SHARP CU Not Available Price:
158 1983202 DECAL-HOT SURFACE Not Available Price:
162 712-0375 Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02
166 1705792 TORSION SPRING Not Available Price:
172 1773451 FLAT WASHER .059 T Not Available Price:
173 1118813 Retaining Ring Price: Call Us
174 1773528001 COVER-INTE Not Available Price:
176 1773530 Spacer Price: Call Us
178 GW-97092 Loctite 242, 0.02 oz. Tube Not Available This part replaces 1757032. Price:
317 1772940 Pitman Bearing Price: $21.59
318 1715301 Thrust Washer Price: $8.45
319 1767593 Retaining Ring Price: $3.92
