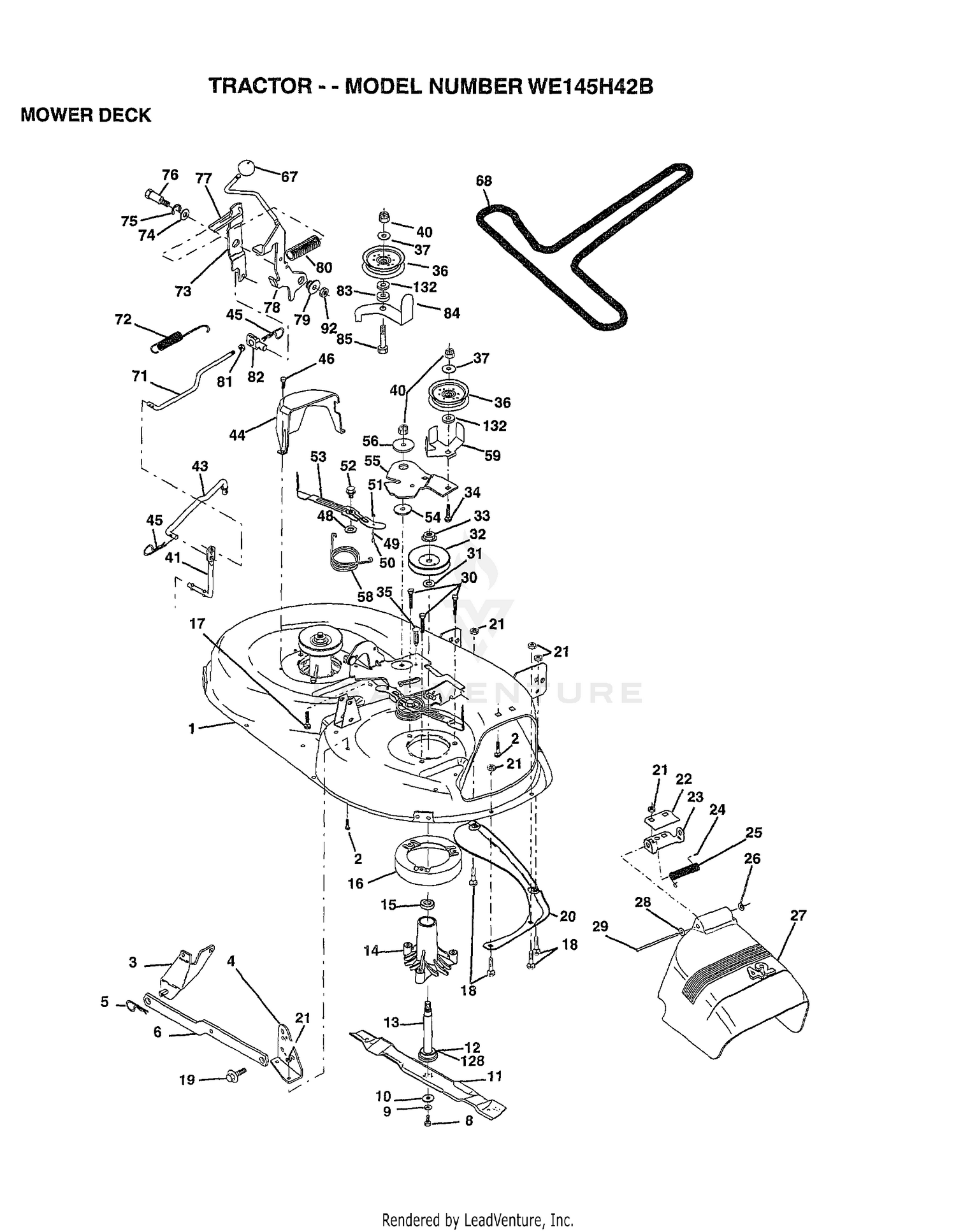

MOWER DECK

MOWER DECK

Parts (94)

RefPart NumberDescription
1 110-6188 HOSE-FUEL This part replaces 71-2680. Price: $51.72
1 144393 DECK.WELD.42. Price: Call Us
2 2412-108 CLAMP-WORM Price: $1.29
2 72140506 BOLT Price: Call Us
3 138017 BRKT ASM SWAY BAR Price: Call Us
3 69-4280 TUBE-HYD Price: $65.47
4 138440 BRKT DECK SW BAR Price: Call Us
4 321-2 SCREW-HH Price: $2.79
5 4939M SUB= 85902 Price: Call Us
5 61-2790 FILTER-SCREEN Price: $49.91
6 130832 SUB= 130833 Price: Call Us
6 93-7160 CAP-OIL, HYD This part replaces 93-3103. Price: $42.72
7 69-1170 GLASS-SIGHT Price: $31.63
8 85-6260 SWITCH ASM Price: $343.85
8 850857 BLADE BOLT Price: Call Us
9 10030600 SUB= 10040600 Price: Call Us
9 5-3177 WASHER Price: $1.97
10 140296 WASHER.HARD.BLADE Price: Call Us
10 3253-21 WASHER-LOCK Price: $0.28
11 323-10 SCREW-HH Price: $0.89
12 129895 BEARING.BALL Price: Call Us
12 3253-3 WASHER-LOCK Price: $0.31
13 137645 SUB= 137646 Price: Call Us
13 321-5 SCREW-HH Price: $0.22
14 128774 HSG ASM MANDREL Price: Call Us
14 2412-34 CLAMP-HOSE Price: $2.14
15 110485X BEARING Price: Call Us
15 2412-42 CLAMP-HOSE Price: $2.65
16 140329 STRIPPER RND MWR Price: Call Us
16 69-5640 HOSE-RETURN Price: $36.06
17 72110610 BOLT RDHD 3/8-16 Price: Call Us
17 94-1892 HOSE ASM Price: $48.02
18 2412-3 CLAMP-HOSE Price: $3.49
18 72140505 BOLT Price: Call Us
19 132827 BOLT SHD 5/16-18 Price: Call Us
19 69-1610 ADAPTER-HOSE, SUCTION Price: $436.35
20 136888 SUB= 918136888 Price: Call Us
20 237-157 O-RING Price: $25.08
21 69-1650 DISCONTINUED Price: Call Us
21 73680500 SUB= 73690500 Price: Call Us
22 134753 STIFFENER BRKT Price: Call Us
22 94-1893 TANK-HYD Price: $3,708.40
23 131267 DEFLECTOR BRKT Price: Call Us
23 340-22 FITTING-TEE Price: $90.38
24 340-150 CAP Price: $35.80
25 123713X SPRING TORSION Price: Call Us
25 98-7067 FITTING-HYD Price: $31.89
26 340-3 FITTING-STRAIGHT Price: $10.42
27 130968 DEFLECTOR.SHIELD Price: Call Us
28 19111016 WASHER Price: Call Us
29 131491 HINGE ROD Price: Call Us
31 129963 WASHER Price: Call Us
32 153535 PULLEY.MANDREL.42 Price: Call Us
33 137266 SUB= 139729 Price: Call Us
34 72110614 BOLT Price: Call Us
35 133835 XMAS TREE FASTNER Price: Call Us
36 131494 FLAT IDLER PULLEY Price: Call Us
37 19131316 WASHER Price: Call Us
40 73680600 SUB= 73690600 Price: Call Us
41 133551 PIVOT ROD Price: Call Us
43 140083 ROD CLUTCH W/NIBS Price: Call Us
44 140088 GUARD MAND LH BLK Price: Call Us
46 137729 SCREW.1/4-20X5/8 Price: Call Us
48 133944 HARD SMALL WASHER Price: Call Us
49 155066 ROLLER ASM-CAM Price: Call Us
50 131340 SHOULDER BOLT Price: Call Us
51 69180 LOCKNUT Price: Call Us
52 139888 BOLT.SHLD.5/16-18 Price: Call Us
53 131845X900 SUB= 131845 Price: Call Us
54 133943 HARDENED WASHER Price: Call Us
55 155046 ARM-IDLER Price: Call Us
56 122052X SPACER RETAINER Price: Call Us
58 140086 SPRING TORSN BRAK Price: Call Us
59 141043 GUARD IDLER TUV Price: Call Us
67 106932X KNOB T(3/8 HOLE) Price: Call Us
68 144200 BELT.V.T-PATH Price: Call Us
71 142427 ROD CLUTCH 38/42 Price: Call Us
72 131870 RETURN SPRING Price: Call Us
73 127847 CLUTCH ARM SECOND Price: Call Us
74 121748X WASHER Price: Call Us
75 12000029 RING Price: Call Us
76 128903 SHOULDER BOLT Price: Call Us
77 127845 SPRING KEEPER Price: Call Us
78 154809 LEVER ASM-CLUTCH Price: Call Us
79 127498 BUSHING Price: Call Us
80 153701 SPRING.CLUTCH.MWR Price: Call Us
81 73350600 NUT Price: Call Us
82 142028 TRUNION ADJ Price: Call Us
83 120958X WASHER Price: Call Us
85 72140618 BOLT RDHD 3/8-16 Price: Call Us
92 73800600 NUT Price: Call Us
128 153390 WASHER.FELT. Price: Call Us
132 19132203 WASHER GT Price: Call Us
130794 MANDREL ASM Price: Call Us 130794
