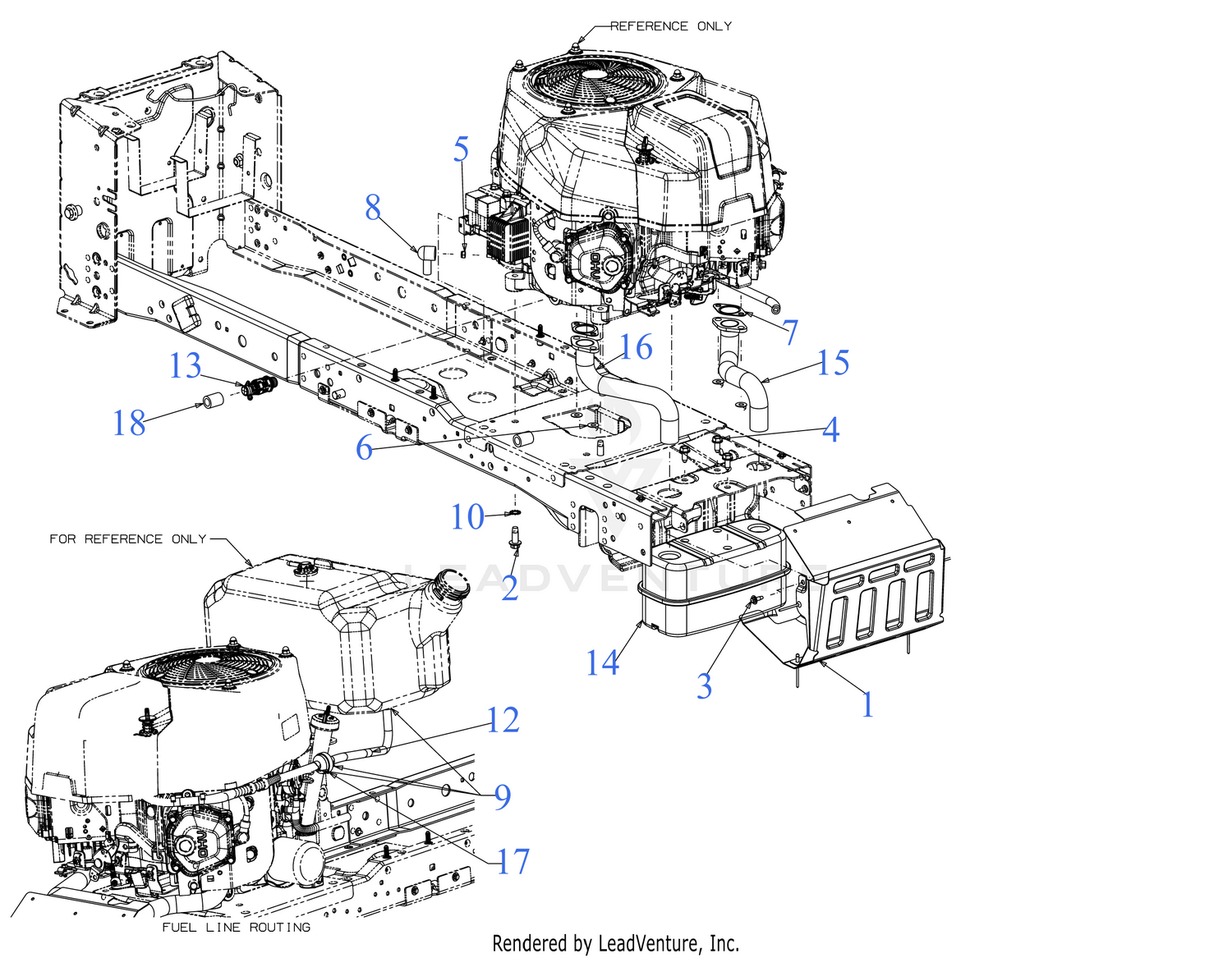

| Ref | Part Number | Description |
|---|
| 1 |
983-05142C |
MUFFLER SHIELD ASSEMBLY This part replaces 983-05142A. Price: $71.68 |
| 2 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 3 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 4 |
710-06256 |
SCREW M8-1.25 x .750 Price: $2.72 |
| 5 |
712-0691 |
HEX NUT This part replaces 912-0691. Price: $6.13 |
| 6 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 7 |
921-04936 |
EXHAUST GASKET Price: $7.02 |
| 8 |
725-3237 |
TERMINAL COVER RED Price: $9.09 |
| 9 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 10 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 13 |
951-10517A |
OIL DRAIN VALVE Price: $22.67 |
| 14 |
951-14503D |
EXHAUST MUFFLER (TWIN) This part replaces 951-14503A. Price: $65.12 |
| 15 |
751-15507 |
EXHAUST PIPE (LH) Price: $41.27 |
| 16 |
751-15860 |
EXHAUST PIPE (RH) Price: $40.48 |
| 17 |
951-3013 |
FUEL FILTER Price: $7.96 |
| 18 |
751-3141-14 |
DRAIN HOSE 14'' Price: $10.40 |
