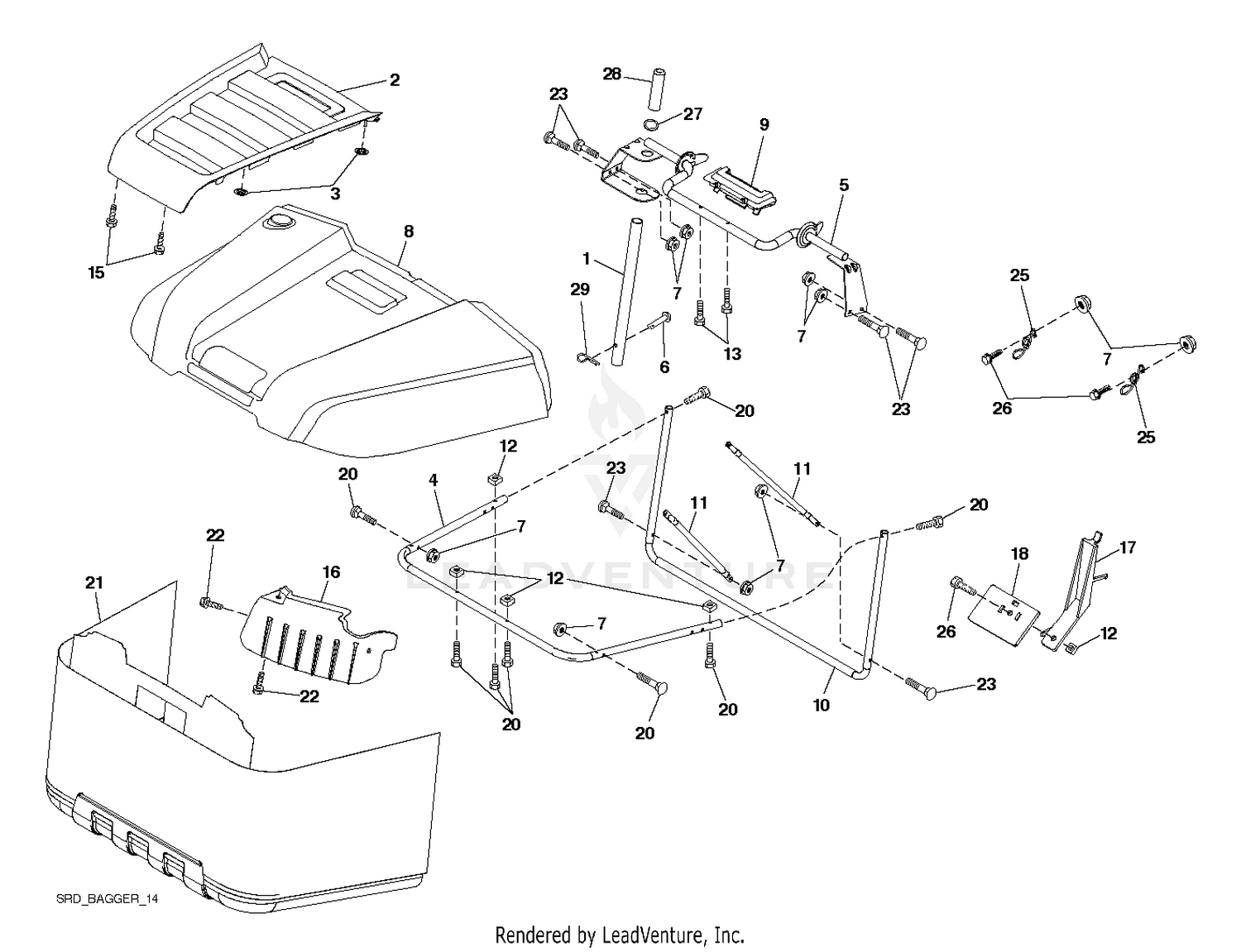

| Ref | Part Number | Description |
|---|
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 1 |
95-0564 |
TUBE-RH, FRONT Price: $46.46 |
| 2 |
532441358 |
APPLIQUE.TOP.BAG.SRD.ORANGE Price: $34.99 |
| 2 |
95-0559 |
TUBE-RH, REAR Price: $46.46 |
| 3 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 3 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 4 |
22-4670 |
HOSE-VALVE/CYLINDER Price: $128.58 |
| 5 |
354-132 |
FITTING Price: $15.08 |
| 5 |
583365901 |
FRAME.ASM.TOP.BAGGER.SRD This part replaces 532417632. Price: $89.99 |
| 6 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 7 |
83-7000 |
HYD CYLINDER ASM Price: $363.59 |
| 8 |
18-7310 |
PIN-CYLINDER Price: $32.29 |
| 8 |
583503801 |
SRD.BAGGER.TOP.SUB.ASM This part replaces 532441261. Price: $119.99 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 9 |
95-0560 |
TUBE-LH, FRONT Price: $109.53 |
| 10 |
532417190 |
FRAME.FRONT.SRD.BAGGER Price: $54.99 |
| 10 |
95-0567 |
TUBE-LH, REAR Price: $109.53 |
| 11 |
353-426 |
FITTING-90 DEG Price: $29.88 |
| 11 |
532417188 |
TUBING.BRACE.BAGGER.SRD.BLACK Price: $19.99 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 12 |
75-9831 |
HYD MOTOR ASM Price: $1,646.04 |
| 13 |
18-7160 |
PIN-CYLINDER Price: $52.01 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 14 |
353-431 |
FITTING-45 DEG Price: $74.99 |
| 15 |
353-212 |
FITTING-ELBOW, 45 DEG Price: $22.12 |
| 15 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 16 |
532421566 |
DEFLECTOR.BAGGER.SRD Price: $12.99 |
| 16 |
75-9840 |
HYD MOTOR ASM Price: $2,000.57 |
| 17 |
532421749 |
LEVER.BAGGER.FULL.SRD.BLACK Price: $9.99 |
| 17 |
95-0575 |
TUBE-VALVE, SHUTTLE Price: $45.57 |
| 18 |
583391001 |
PADDLE.BAGGER.FULL.SRD.BLACK This part replaces 532421750. Price: $9.99 |
| 19 |
325-5 |
SCREW-HH Price: $1.20 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
585368801 |
SCREW.HEXCAP.1/4-20X1.375(2 2) Price: $2.99 |
| 21 |
583825601 |
BAG.ASM.BAGGER.SRD.HUSQVA.GREY This part replaces 532429981. Price: $129.99 |
| 21 |
69-8930 |
WASHER Price: $0.81 |
| 22 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 22 |
69-8960 |
SPACER Price: $5.29 |
| 23 |
240-5 |
GROMMET Price: $13.66 |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 24 |
116-4367 |
NUT-HEX This part replaces 95-0642. Price: $6.51 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 25 |
95-0577 |
FITTING-BULKHEAD Price: $53.24 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 26 |
95-0568-01 |
BRACKET-BULKHEAD This part replaces 95-0568. Price: $16.21 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 27 |
95-0562 |
DISCONTINUED Price: Call Us |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 28 |
95-0563 |
TUBE-LH Price: $68.75 |
| 29 |
321-18 |
SCREW-HH Price: $1.89 |
| 29 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 30 |
51-0600 |
HOSE ASM Price: $68.83 |
| 31 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 32 |
69-9760 |
COVERPLATE Price: $5.38 |
| 33 |
3296-8 |
NUT-HEX Price: $1.29 |
| 34 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 35 |
95-0595 |
HOSE-HYD Price: $104.29 |
| 36 |
237-78 |
O-RING Price: $3.85 |
| 37 |
237-79 |
O-RING Price: $5.46 |
| 38 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 39 |
237-42 |
O-RING Price: $2.78 |
| 40 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
