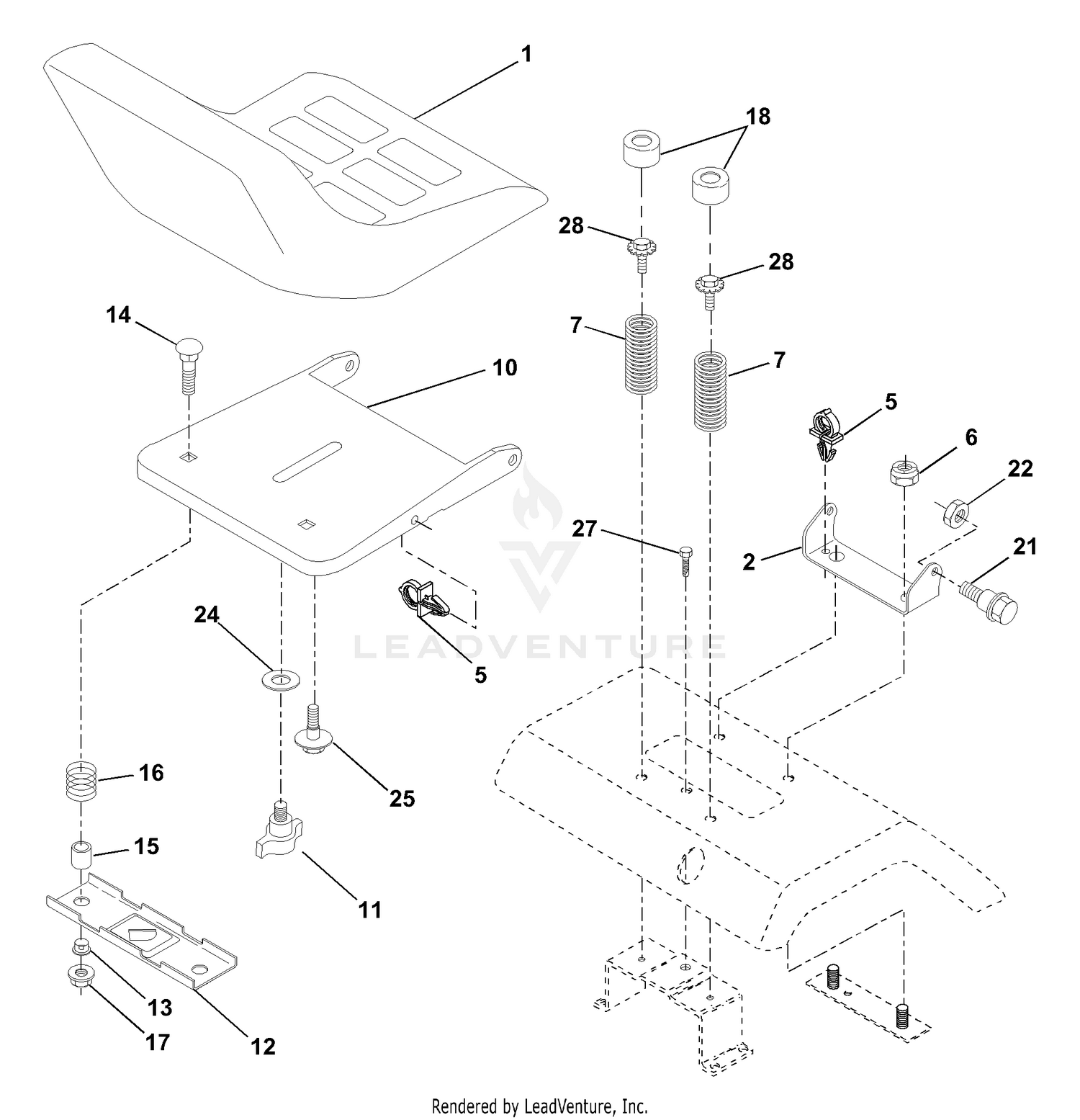

| Ref | Part Number | Description |
|---|
| 1 |
140118 |
Seat Price: Call Us |
| 2 |
140551 |
Pivot Bracket, Seat Price: Call Us |
| 5 |
145006 |
Clip, Push-in Hinged Price: Call Us |
| 6 |
73800600 |
Nut, Lock Hex w/Ins 3/8-16 UNC Price: Call Us |
| 7 |
124181X |
Spring, Seat Price: Call Us |
| 10 |
108-6571 |
CRANKCASE ASM Price: $1,485.35 |
| 10 |
174894 |
Pan, Seat Price: Call Us |
| 11 |
166369 |
Knob, Seat, Black Price: Call Us |
| 12 |
121246X |
Bracket, Switch Mounting Price: Call Us |
| 13 |
121248X |
Bushing, Snap, Black, Nylon Price: Call Us |
| 14 |
72050412 |
Bolt, Carriage 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
121249X |
Spacer, Split Price: Call Us |
| 16 |
123740X |
Spring Price: Call Us |
| 17 |
123976X |
Locknut, Flange 1/4 Grade 5 Price: Call Us |
| 18 |
124238X |
Cap Spring Seat Blk 1.75 x 1.0 Price: Call Us |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Unc -2A Price: Call Us |
| 22 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 Unc Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Gauge Price: Call Us |
| 25 |
127018X |
Bolt, Shoulder 5/16-18 x .62 Price: Call Us |
| 27 |
17490608 |
Screw Thdrol 3/8-16 x 3/4 Price: Call Us |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 40 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 80 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
105-3795 |
PIN-STRAIGHT Price: $0.99 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 220 |
99-3447 |
PLUG Price: $3.11 |
| 230 |
106-7056 |
GASKET Price: $1.48 |
