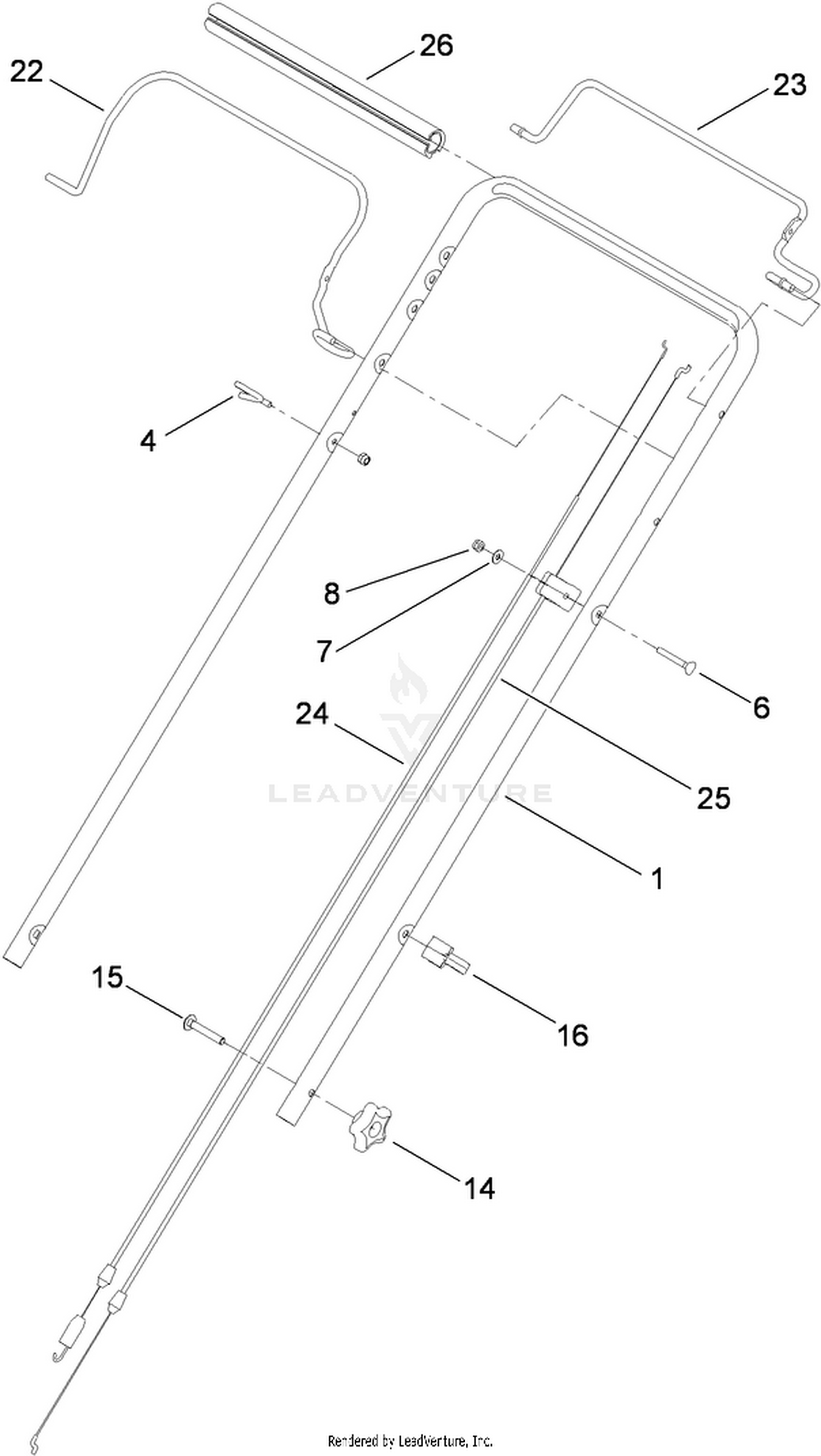

Handle Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-3810-05 | HANDLE Price: $39.88 |
| 4 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 6 | 92-2270 | SCREW-HANDLE Price: $5.42 |
| 7 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 8 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 14 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 15 | 3230-6 | BOLT-CARR Price: $0.59 |
| 16 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 22 | 117-5965-03 | BAIL-BRAKE Price: $24.42 |
| 23 | 119-2378-03 | BAIL-TRACTION Price: $17.21 |
| 24 | 119-7010 | CABLE-TRACTION Price: $21.81 |
| 25 | 112-8818 | CABLE-BRAKE Price: $22.47 |
