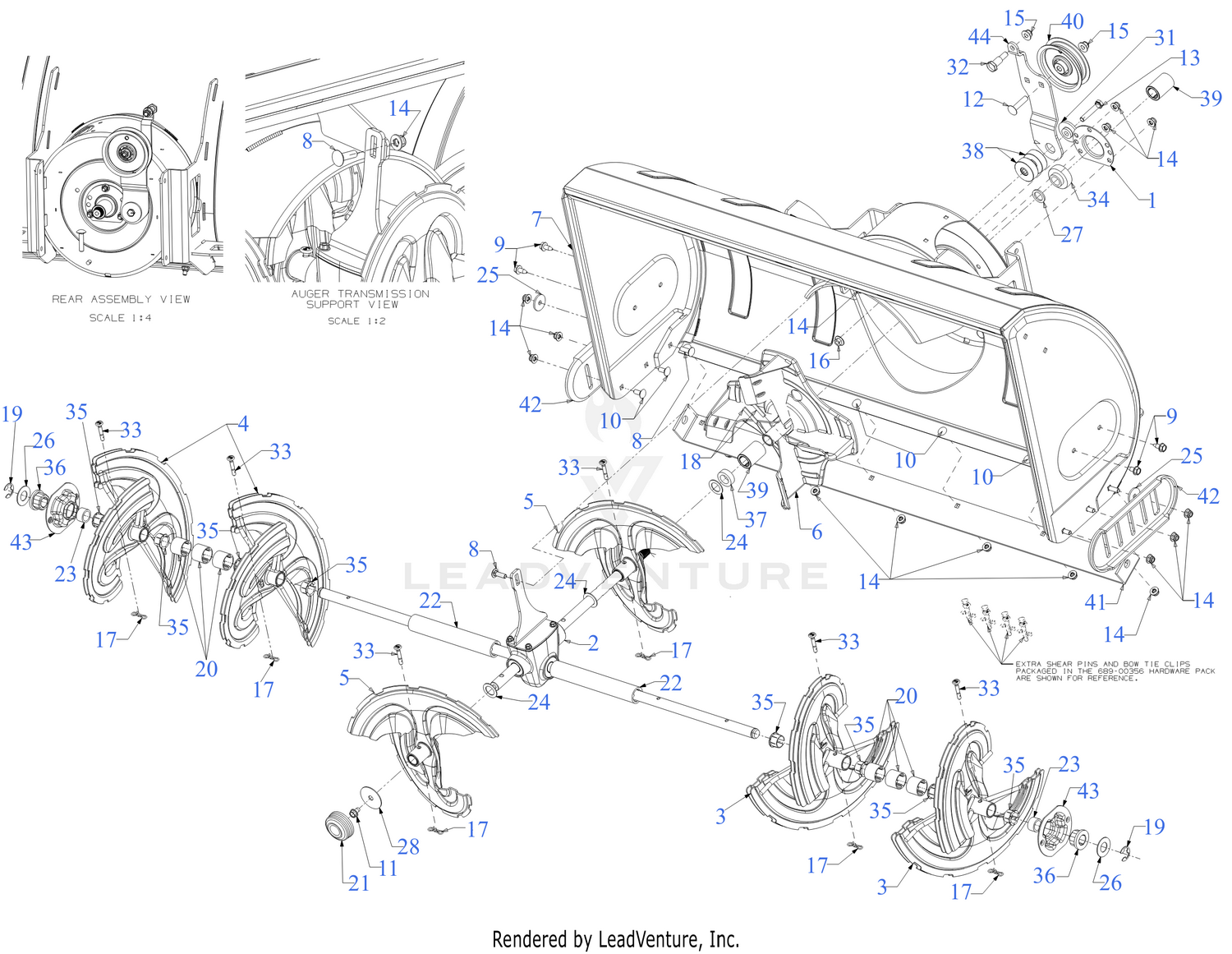

| Ref | Part Number | Description |
|---|
| 1 |
05931A |
HOUSING-BEARING Price: $9.73 |
| 6 |
684-05075-0637 |
IMPELLER ASSEMBLY (POWDER BLACK) Price: $116.36 |
| 8 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 9 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 10 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 11 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 12 |
710-06234 |
BOLT 3/8-16 x 1.69 GR5 Price: $5.59 |
| 13 |
710-3096 |
SCREW 3/8-16 x 2.0 GR 8 Price: $7.03 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 17 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 18 |
715-0114 |
ROLL PIN Price: $8.68 |
| 19 |
716-0231 |
E-RING Price: $3.50 |
| 20 |
731-04870 |
SPACER 1.25OD x .75ID X1.00 LG Price: $4.06 |
| 21 |
731-08637A |
CAP Price: $4.69 |
| 22 |
731-09558 |
SPACER Price: $9.29 |
| 23 |
731-10404 |
SPACER Price: $3.66 |
| 24 |
736-0287 |
FLAT WASHER .793ID x 1.24OD x .060 Price: $3.93 |
| 25 |
736-0343 |
WASHER-5/16 x 1.25X 1.27 Price: $3.90 |
| 26 |
736-0445 |
FLAT WASHER Price: $3.95 |
| 27 |
736-04624 |
FLAT WASHER .75 x 1.13 x .10 Price: $3.66 |
| 28 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 31 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 32 |
738-04518 |
SHOULDER BOLT .50X.892X3/8 Price: $4.64 |
| 33 |
490-241-C062 |
Cub Cadet SHEAR PINS (3X SNOW) Not Available Price: |
| 33 |
490-241-Y062 |
Troy-Bilt SHEAR PINS (3X SNOW) Not Available Price: |
| 33 |
738-05273 |
SHEAR PIN (.25 x 1.50) Price: $2.11 |
| 33 |
753-10904 |
KIT-SHEAR PIN 3 STAGE (05273/06654) Price: $18.26 |
| 34 |
941-0309 |
BEARING W/OUT COLLAR Price: $69.59 |
| 35 |
741-0493C |
FLANGE BUSHING Price: $3.86 |
| 36 |
741-05041 |
FLANGE BEARING Price: $8.37 |
| 37 |
750-05218 |
SPACER Price: $6.28 |
| 38 |
750-06184 |
SPACER .385ID x 1.75OD x .585THK Price: $10.02 |
| 39 |
750-06261 |
SPACER Price: $11.07 |
| 40 |
756-0627D |
FLAT PULLEY Price: $28.58 |
| 41 |
784-0396C-0637 |
SHAVE PLATE 42" Price: $59.90 |
| 42 |
784-5038B-0637 |
SLIDE SHOE (POWDER BLACK) Price: $24.49 |
| 44 |
790-00636-0637 |
IDLER PIVOT BRACKET (POWDER BLACK) Price: $46.09 |
