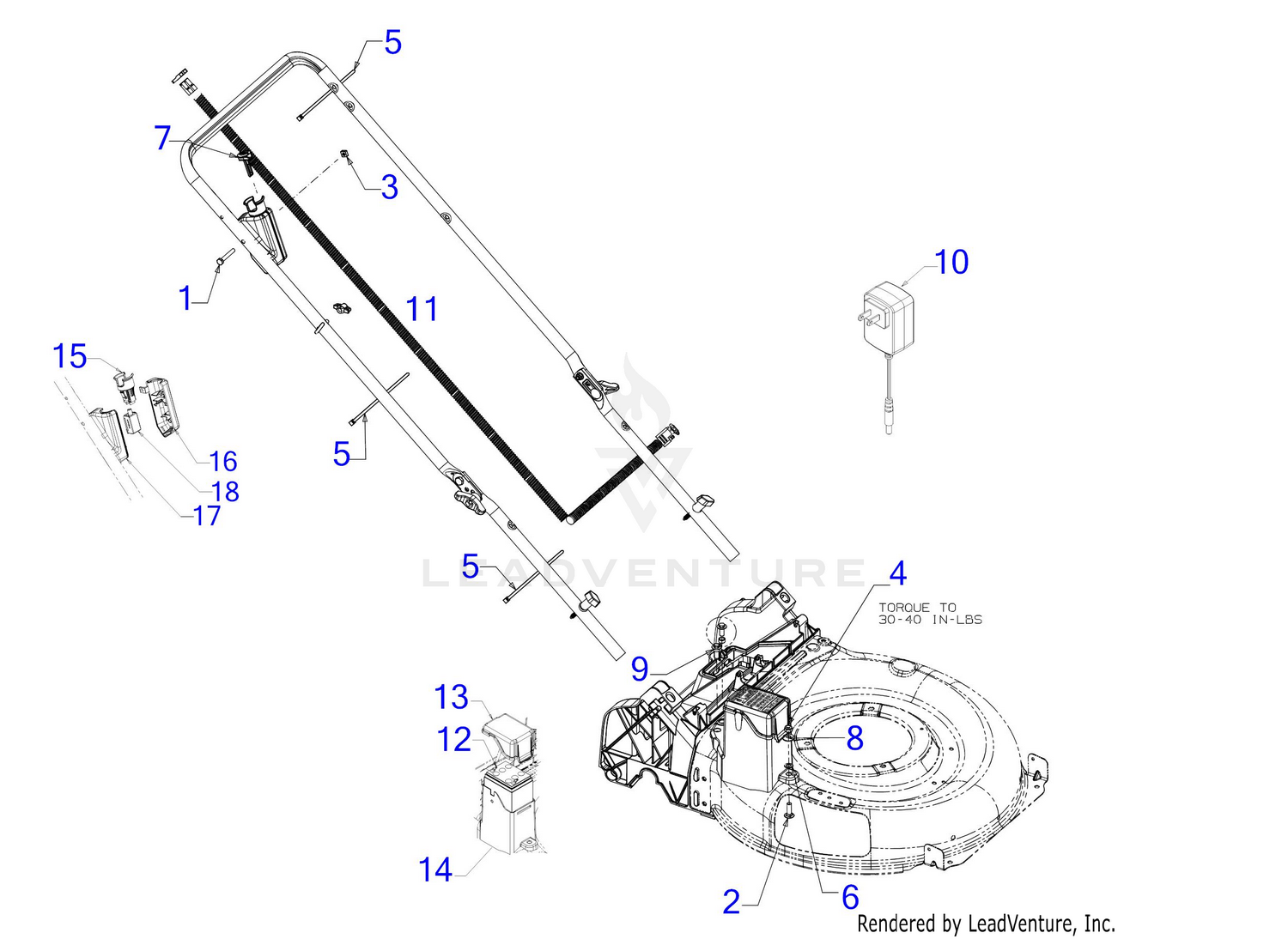

| Ref | Part Number | Description |
|---|
| 1 |
710-0136 |
HEX SCREW 1/4-20 x 1.75 Price: $3.66 |
| 2 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 3 |
712-04222 |
SQUARE NUT 1/4-20 Price: $4.77 |
| 4 |
712-0429 |
Lock Nut, 5/16-18 This part replaces 912-0429. Price: $3.56 |
| 6 |
726-0201 |
PUSH NUT Price: $6.01 |
| 7 |
731-09728 |
PUSH KEY Price: $4.19 |
| 8 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 9 |
738-04431A |
SHOULDER SCREW 5/16-14 x .972 Price: $3.36 |
| 10 |
725-06121C |
BATTERY CHARGER This part replaces 725-06121A. Price: $41.56 |
| 11 |
925-06140B |
HARNESS Price: $52.46 |
| 12 |
725P04903 |
BATTERY 12V This part replaces 725-04903. Price: $99.17 |
| 13 |
731-07154A |
TOP BATTERY HOUSING Price: $7.49 |
| 14 |
731-07135 |
BATTERY HOUSING Price: $12.52 |
| 15 |
931-05131A |
KEY SWITCH ASSEMBLY Price: $11.54 |
| 16 |
731-09755 |
PUSH START HOUSING (LH) Price: $4.64 |
| 17 |
731-09753B |
PUSH START HOUSING (RH) Price: $5.59 |
