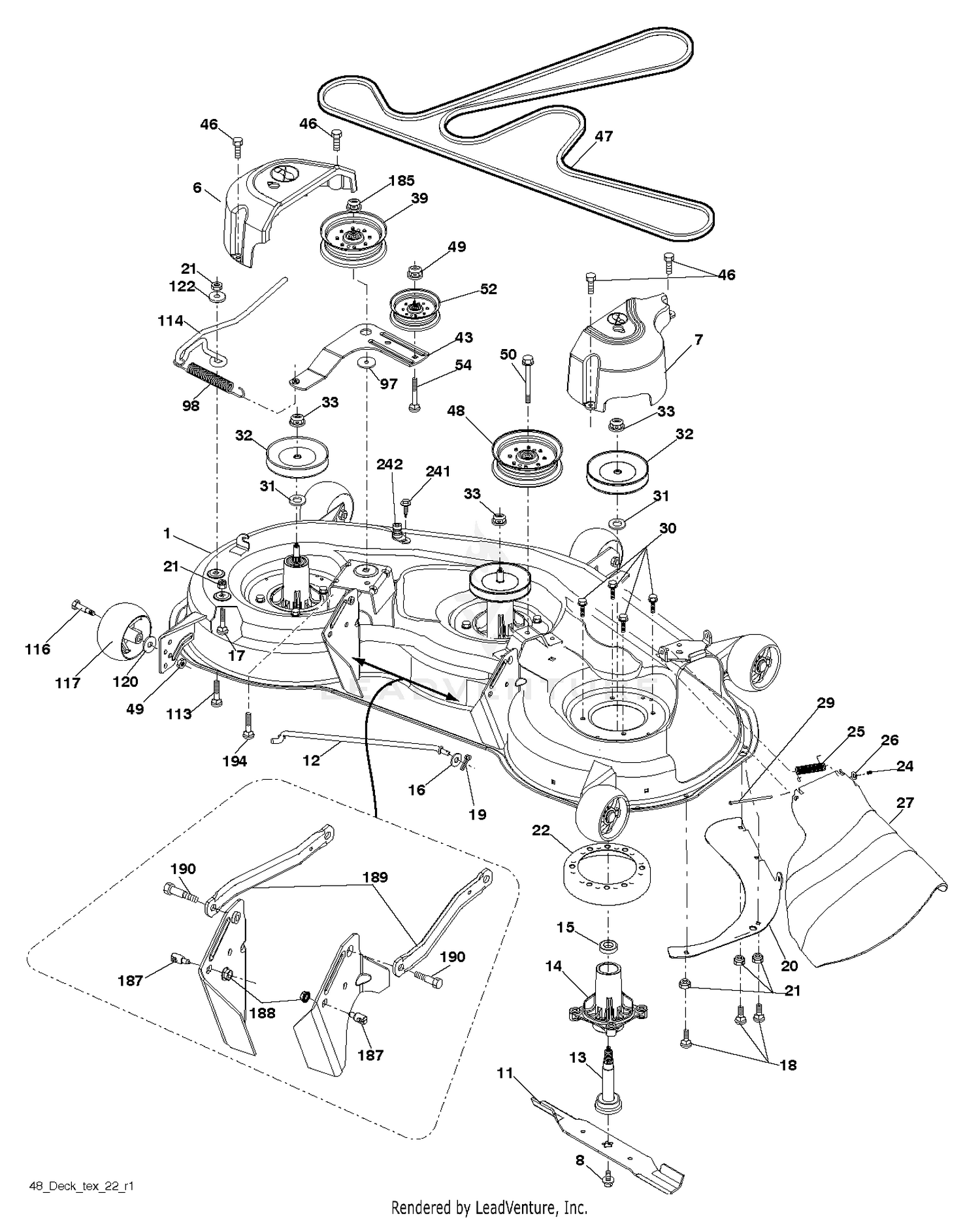

| Ref | Part Number | Description |
|---|
| 1 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 1 |
532401239 |
DECK.WLDMNT.48".4GWB.GREY This part replaces 532197216. Price: $399.99 |
| 2 |
5-3433 |
DISCONTINUED Price: Call Us |
| 3 |
5-1686 |
ADJ ROD Price: $41.75 |
| 4 |
5-4553 |
DISCONTINUED Price: Call Us |
| 5 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 6 |
282-1 |
DISCONTINUED Price: Call Us |
| 6 |
532197248 |
COVER.MANDREL.LH.48" Price: $12.99 |
| 7 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
587452401 |
COVER.RH.MANDREL This part replaces 532199102. Price: $5.99 |
| 8 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 10 |
5-2896 |
PIVOT *R Price: $2.44 |
| 11 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 12 |
5-2845 |
ROLLER HANGER WA *RO Price: $188.44 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $17.99 |
| 13 |
237-69 |
O-RING Price: $5.72 |
| 13 |
532187291 |
SHAFT ASM MANDREL Price: $17.99 |
| 14 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
11-3050 |
SLEEVE Price: $53.95 |
| 16 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 17 |
253-118 |
SEAL-OIL Price: $18.29 |
| 17 |
872110505 |
BOLT Price: $3.99 |
| 18 |
5-1384 |
HOUSING-BEARING Price: $84.20 |
| 18 |
872140505 |
BOLT Price: $2.99 |
| 19 |
285-17 |
PLUG-PIPE This part replaces 285-10. Price: $2.59 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 20 |
237-68 |
O-RING Price: $3.22 |
| 20 |
532174378 |
BAFFLE, VORTEX MWR Price: $8.99 |
| 21 |
251-205 |
BEARING-BALL Price: $40.83 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 22 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK Price: $3.99 |
| 23 |
5-4531 |
ROLLER ASM Price: $704.12 |
| 24 |
5-2808 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
5-2846 |
DISCONTINUED Price: Call Us |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $1.99 |
| 26 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
322-4 |
SCREW-HH Price: $0.35 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $29.99 |
| 29 |
5-4796 |
DISCONTINUED Price: Call Us |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YEL DICHROMA This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATIONARY.LH This part replaces 532197380. Price: $22.99 |
| 43 |
532196065 |
ARM.IDLER Price: $11.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
532197242 |
BELT.DRIVE.DECK Price: $44.99 |
| 48 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 49 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 50 |
817490636 |
SCREW TT 3/8-16X2-1/4 UNC Price: $3.99 |
| 52 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 54 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 97 |
532178515 |
WASHER Price: $2.99 |
| 98 |
532196105 |
SPRING, DECK DRIVE Price: $4.99 |
| 113 |
872110508 |
BOLT CRT Price: $2.99 |
| 114 |
532197451 |
ROD.TENSION.RELIEF.TEX (2 2) Price: $11.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 120 |
819132012 |
WASHER Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 188 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 189 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $8.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 532173921 |
BLADE.MULCH.48" |
Price: $12.99 532173921 |
| 583368701 |
DECK.SVC.48"E.HDHP.WP.W5GW.431 |
This part replaces 532418070. Price: $799.99 583368701 |
| 587125401 |
MANDREL.W/SPCR.BRG.TALL.NONREV |
This part replaces 532187292. Price: $32.99 587125401 |
