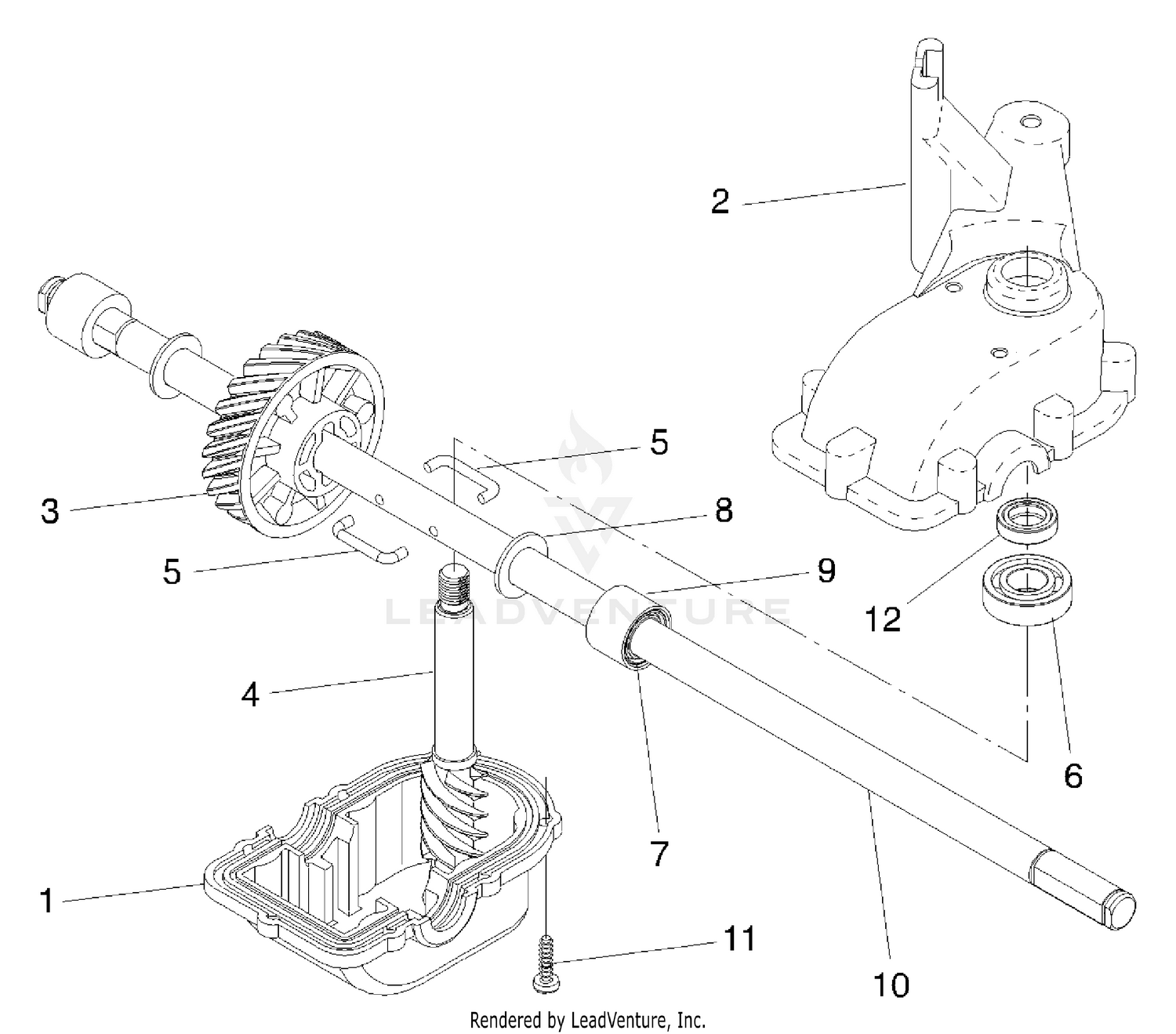

| Ref | Part Number | Description |
|---|
| 1 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 1 |
532187530 |
CASE, LOWER Price: $10.99 |
| 2 |
29-9790 |
DISCONTINUED Price: Call Us |
| 2 |
532187531 |
CASE, UPPER Price: $22.99 |
| 3 |
321-9 |
SCREW-HH Price: $0.27 |
| 3 |
532187532 |
GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 4 |
3210-7 |
SCREW-HH Price: $0.61 |
| 4 |
532187533 |
SHAFT INPUT Price: $24.99 |
| 5 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 5 |
532191249 |
RP.SHAFT.OUTPUT.RGD.VS/EZ Price: $54.99 |
| 6 |
3219-2 |
NUT-HEX Price: $0.37 |
| 6 |
532183506 |
BEARING Price: $5.99 |
| 7 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 7 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 8 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 8 |
532183509 |
WASHER Price: $3.99 |
| 9 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 9 |
532183511 |
BUSHING Price: $4.99 |
| 10 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 10 |
532190948 |
SHAFT OUTPUT (12215) Price: $49.99 |
| 11 |
3217-16 |
NUT-HEX Price: $0.25 |
| 11 |
532183513 |
SCREW Price: $3.99 |
| 12 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 12 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 13 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 14 |
323-39 |
SCREW-HH Price: $1.60 |
| 16 |
52-8890-03 |
DISCONTINUED This part replaces 52-8890. Price: Call Us |
| 17 |
52-9070 |
PLATE-PUMP Price: $101.93 |
| 18 |
322-17 |
SCREW-HH Price: $2.62 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 23 |
251-259 |
BEARING-BALL Price: $13.67 |
