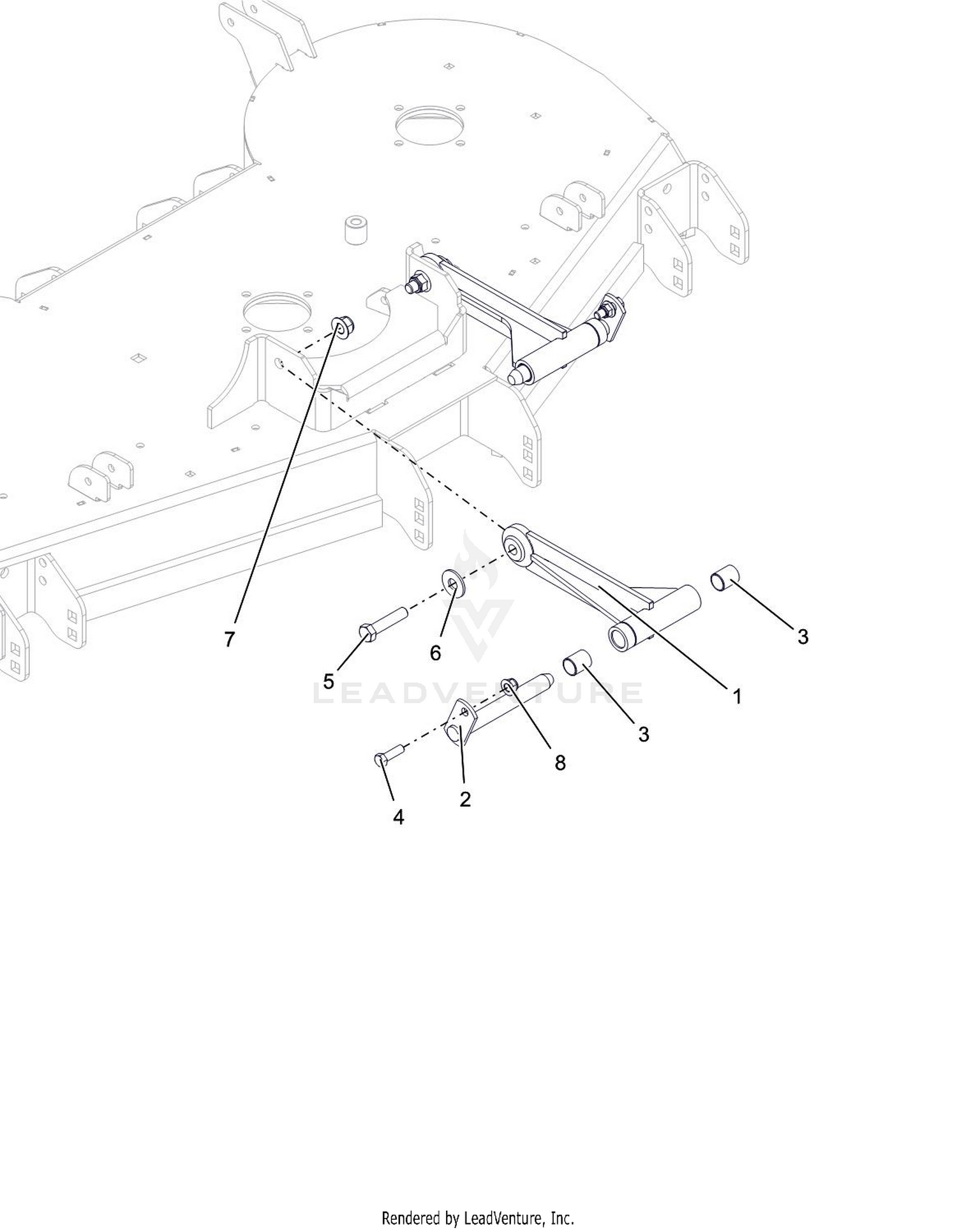

Deck Mount
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 04570651 | WMT, DRAG LINK Price: $133.45 |
| 2 | 09238900 | WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 3 | 05435900 | BRG, .750 X .875 X 1.000 Price: $5.95 |
| 4 | 05901724 | BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
| 5 | 05901835 | BLT, HEX .50-13X2.25 G5 ZCC This part replaces 05961000. Price: $3.45 |
| 6 | 06401012 | WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 7 | 06500810 | NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
