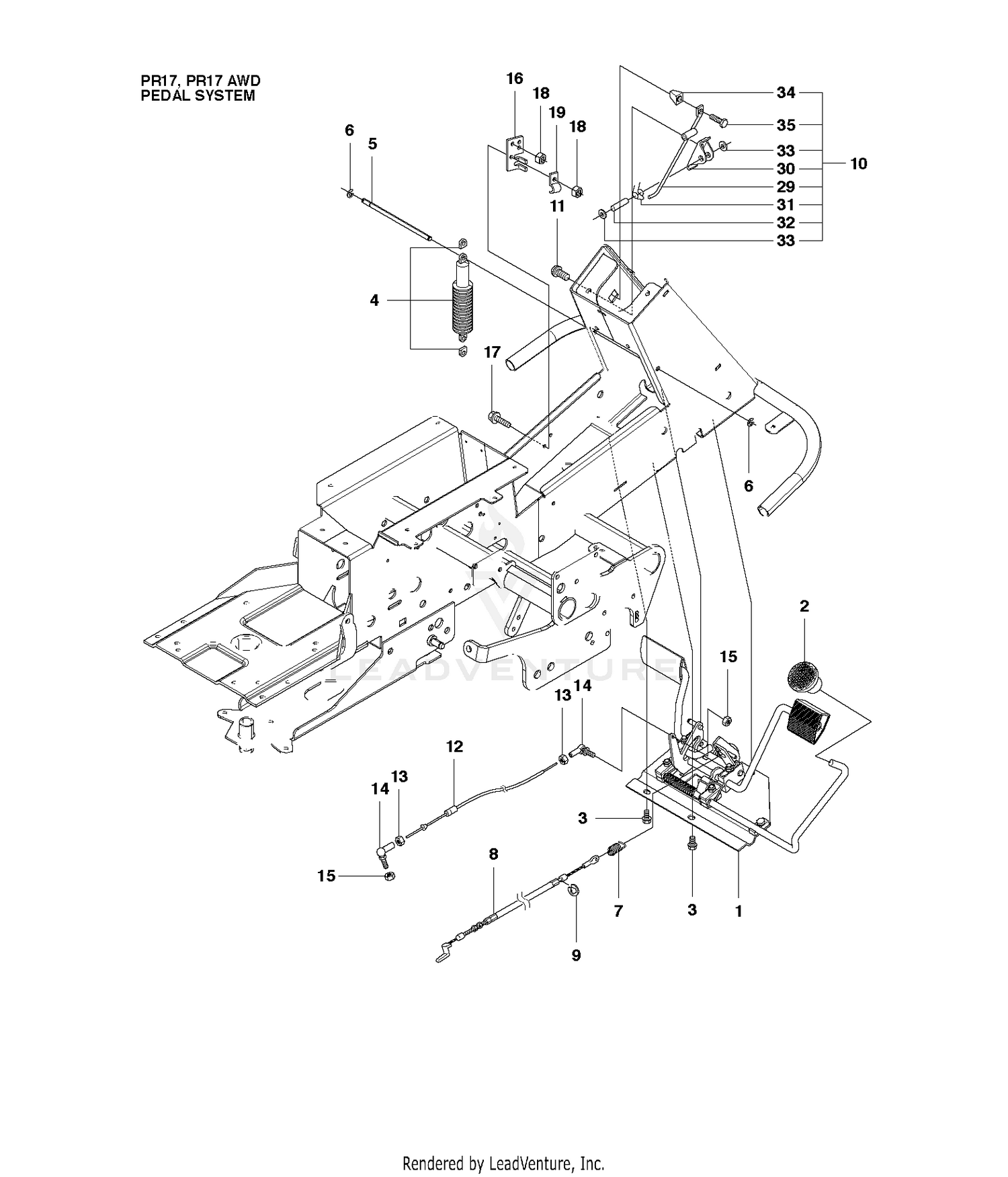

PEDALS
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-1734 | ROLLER-SHOULDER, PLASTIC Price: $525.86 |
| 1 | 583951401 | PEDAL PLATE ASSY HYDROSTATIC K This part replaces 544126001. Price: $139.99 |
| 2 | 112-1707 | SHAFT-ROLLER, WIEHLE Price: $73.35 |
| 2 | 586727401 | KNOB, THREADED This part replaces 535473701. Price: $9.99 |
| 3 | 114-3717 | SEAL-OIL Price: $2.77 |
| 3 | 506570104 | BOLT Price: $4.99 |
| 4 | 112-5290 | BEARING-STEEL, STAINLESS Price: $12.64 |
| 5 | 112-7494 | SEAL Price: $6.37 |
| 5 | 506938402 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 114-5411 | NUT-LOCK, BEARING Price: $24.46 |
| 6 | 735310920 | E-RING 5 Price: $3.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 506946301 | SPRING Price: $7.99 |
| 9 | 735310920 | E-RING 5 Price: $3.99 |
| 10 | 506538404 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 725236461 | SCREW Price: $2.99 |
| 12 | 582152001 | CONTROL CABLE TRANSMISSION This part replaces 574411201. Price: $69.99 |
| 13 | 731231401 | NUT Price: $1.99 |
| 14 | 578776801 | CONNECTOR, BALL JOINT This part replaces 506557301. Price: $9.99 |
| 15 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 16 | 506800001 | Bracket Price: $21.19 |
| 17 | 535475316 | SCREW Price: $2.99 |
| 18 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 19 | 506566501 | CLAMP Price: $2.99 |
| 29 | 506538501 | Arm Price: $22.27 |
| 30 | 506538601 | Bracket Price: $18.98 |
| 31 | 506538901 | Spring Price: $3.61 |
| 32 | 506538801 | Pin Price: $7.33 |
| 33 | 735583501 | CLIP Price: $12.99 |
| 34 | 506538704 | KNOB, RED Price: $2.99 |
| 35 | 729532971 | Screw Price: $1.80 |
