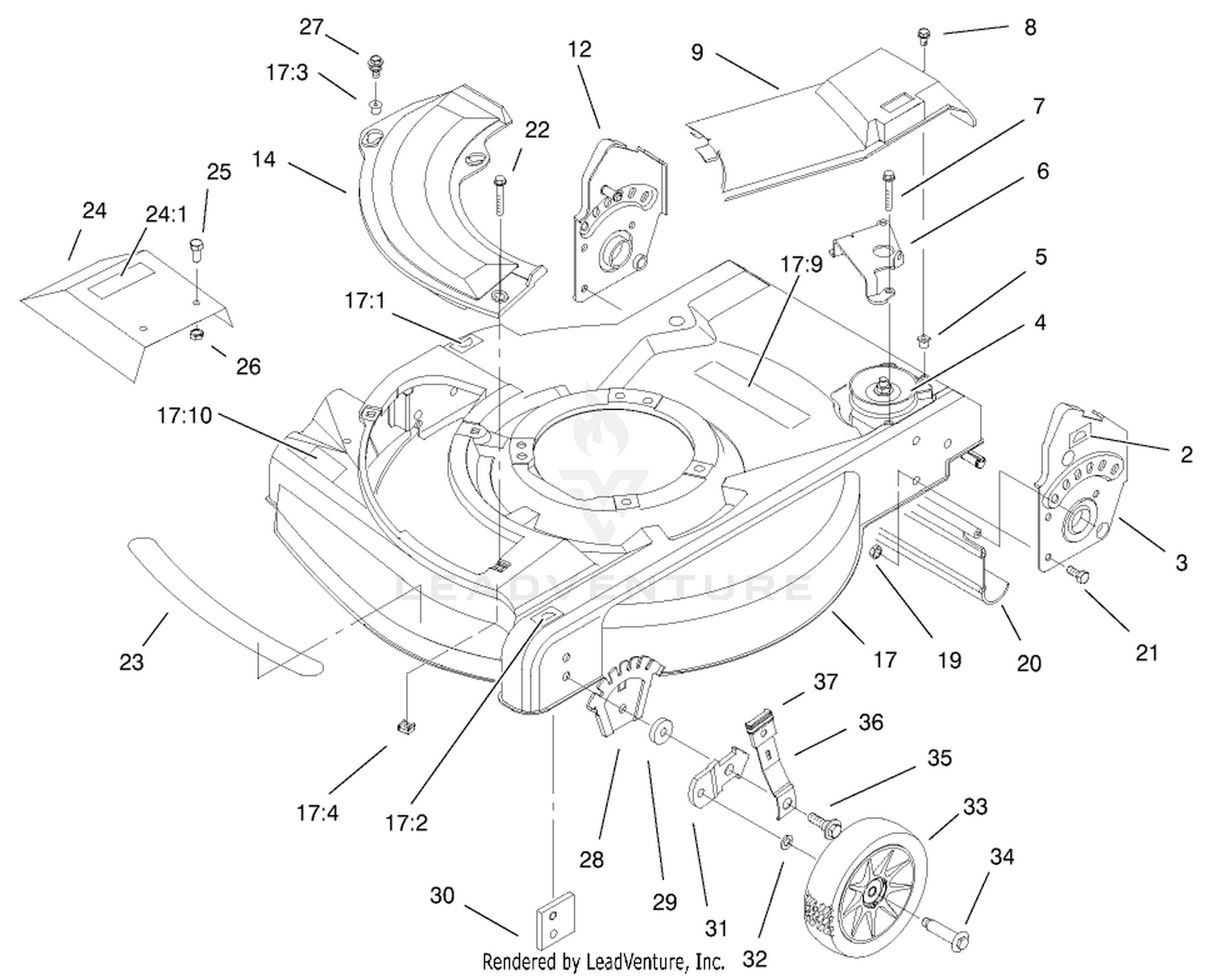

| Ref | Part Number | Description |
|---|
| 2 |
93-6670 |
DISCONTINUED Price: Call Us |
| 3 |
105-8604 |
LH BRACKET ASM This part replaces 92-7724. Price: $31.84 |
| 4 |
104-7671 |
GEAR CASE ASM This part replaces 92-7735. Price: $236.14 |
| 5 |
605120 |
NUT-CLIP Price: $2.36 |
| 6 |
92-7728-03 |
GUIDE-TRANSMISSION Price: $5.28 |
| 7 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 8 |
92-9665 |
SCREW-TAP Price: $1.11 |
| 9 |
95-7068 |
COVER-DRIVE Price: $17.78 |
| 12 |
105-8602 |
RH BRACKET ASM This part replaces 92-7723. Price: $31.84 |
| 14 |
95-7052 |
PLATE-OPENING, CHUTE Price: $20.50 |
| 17 |
95-7088 |
HOUSING Price: $246.87 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
92-8647 |
SHIELD-TRAILING Price: $23.82 |
| 21 |
322-3 |
SCREW-HH Price: $0.79 |
| 22 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 23 |
95-7055 |
DISCONTINUED Price: Call Us |
| 24 |
94-1697 |
GUARD PLATE ASM Price: $155.10 |
| 25 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 26 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 27 |
614677 |
SCREW-SEMS Price: $2.48 |
| 28 |
92-4881-03 |
PLATE-HEIGHT, ADJUSTMENT Price: $16.85 |
| 29 |
92-4890 |
WASHER Price: $5.67 |
| 30 |
92-7731 |
PLATE-BAFFLE Price: $5.79 |
| 31 |
95-7403-03 |
DISCONTINUED Price: Call Us |
| 32 |
40-1940 |
WASHER Price: $1.59 |
| 33 |
684776 |
WHEEL AND TIRE ASM Price: $21.88 |
| 34 |
92-1099 |
BOLT-SHOULDER Price: $4.81 |
| 35 |
614672 |
SCREW-SHOULDER, HWH Price: $2.59 |
| 36 |
614687 |
ARM-FRONT SPRING Price: $12.32 |
