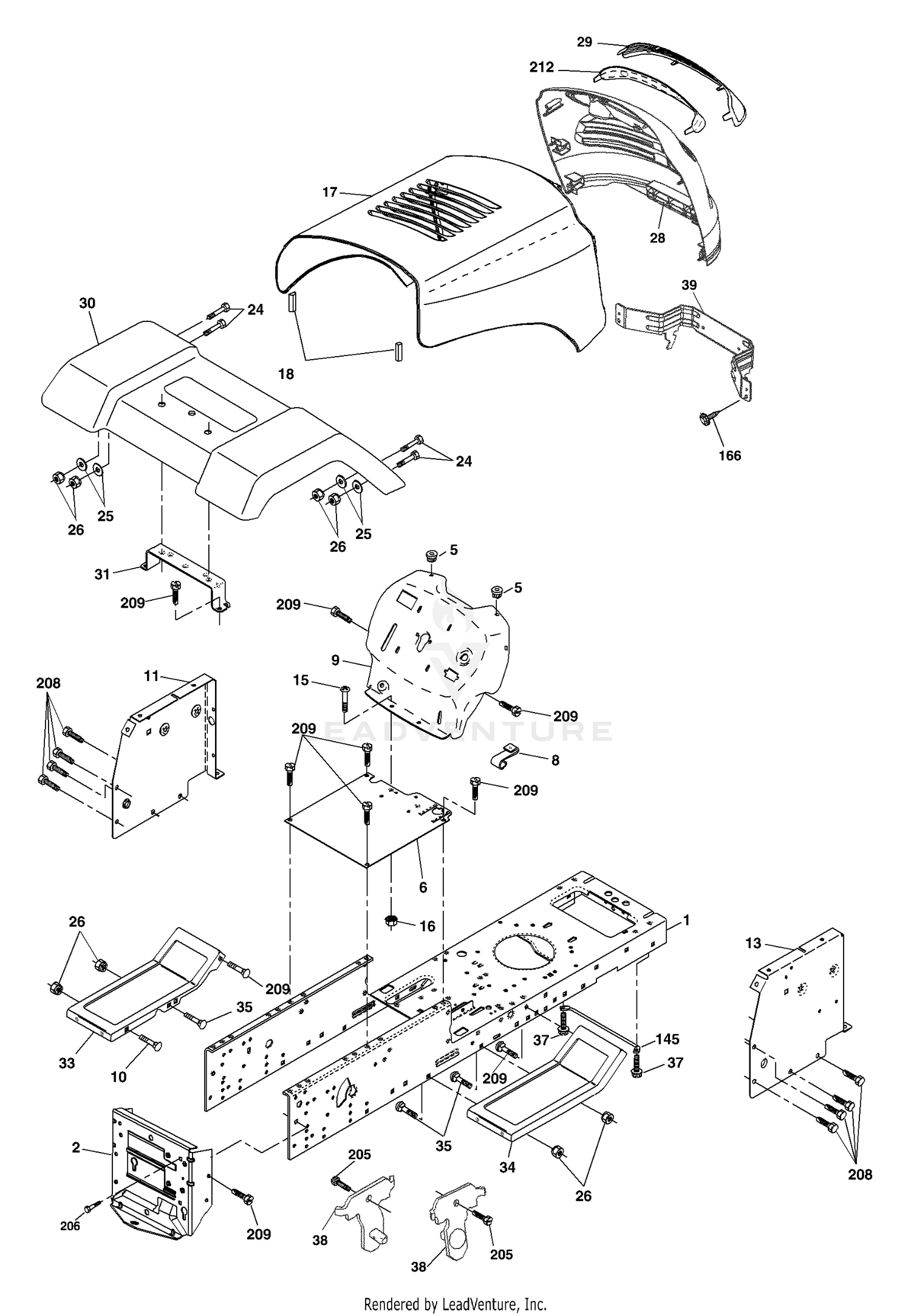

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 1 |
98-9321 |
RING-KEY Price: $1.80 |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
98-9315 |
LATCH-LOCKING Price: $117.46 |
| 3 |
98-9316 |
LATCH-HOOD Price: $61.25 |
| 4 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 6 |
174643X013 |
Saddle Silkscreen Price: Call Us |
| 6 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 7 |
104-1412 |
BUMPER-RUBBER Price: $16.98 |
| 8 |
104-9320 |
HOOD ASM Price: $1,966.33 |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 9 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 9 |
168347X011 |
Dash Price: Call Us |
| 10 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 11 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 12 |
104-1419 |
STRIP-BULB Price: $47.45 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18 unc x 3/4 Price: Call Us |
| 15 |
75-0570 |
CABLE-HOOD Price: $16.66 |
| 16 |
104-0010 |
LATCH-DRAW, FLEXIBLE Price: $41.16 |
| 16 |
73510500 |
Nut Keps 5/16-18 unc Price: Call Us |
| 17 |
106-7063 |
DECAL Price: $46.94 |
| 17 |
187559X505 |
Hood Price: Call Us |
| 18 |
104-9328-03 |
FRAME-HOOD Price: $54.02 |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 19 |
104-1417 |
RIVET-PLASTIC Price: $0.76 |
| 20 |
66-6140 |
DECAL Price: $25.48 |
| 21 |
104-1453 |
GROMMET Price: $6.57 |
| 22 |
104-0042-03 |
STRAP-HINGE Price: $26.35 |
| 23 |
104-0043-03 |
SCREEN-REAR Price: $62.15 |
| 24 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 25 |
32128-33 |
NUT-HF Price: $0.25 |
| 26 |
104-1429 |
SPACER-PLAIN Price: $5.05 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 27 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 28 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 29 |
104-1452 |
SCREW-PPH Price: $1.76 |
| 29 |
187567X599 |
Lens Grille Price: Call Us |
| 30 |
104-1451 |
SCREW-TAP, PPH Price: $1.29 |
| 30 |
169465X505 |
Fender Price: Call Us |
| 31 |
72-3560 |
DECAL Price: $12.52 |
| 32 |
321-15 |
SCREW-HH Price: $0.61 |
| 33 |
179716X505 |
Footrest Pnt LH Price: Call Us |
| 33 |
3218-1 |
NUT-JAM Price: $1.29 |
| 34 |
179717X505 |
Footrest Pnt RH Price: Call Us |
| 34 |
3256-16 |
WASHER-FLAT Price: $0.39 |
| 35 |
104-1439 |
PLATE-LATCH Price: $28.95 |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 36 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 37 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 166 |
171875 |
Screw HWHD Hi-Lo #13-16 x 5/8 Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
187569 |
Insert Lens Reflect Price: Call Us |
