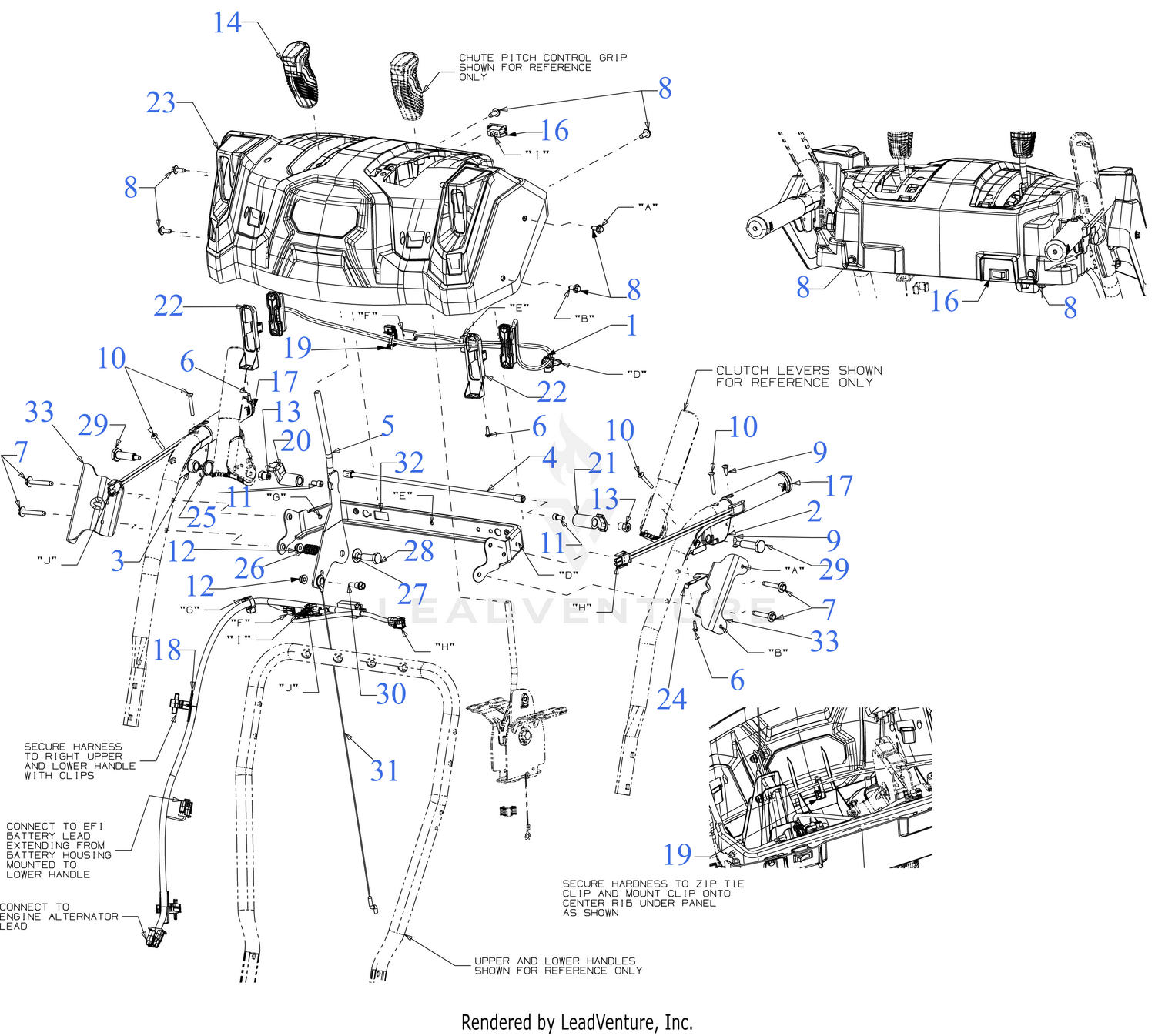

Panel
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 625P08430A | HEADLIGHT HARNESS (W/LED) Price: $41.05 |
| 2 | 631-04133A | CLUTCH LOCK HANDLE ASSEMBLY (LH) Price: $13.42 |
| 2 | 712-0161 | HEX NUT Price: $4.02 |
| 3 | 631-04134B | CLUTCH LOCK HANDLE ASSEMBLY (RH) Price: $13.42 |
| 3 | 712-0161 | HEX NUT Price: $4.02 |
| 4 | 684-04250 | PIVOT ROD Price: $11.00 |
| 6 | 710-04326 | SCREW #8-16 x .50 Price: $3.37 |
| 7 | 710-04586 | SCREW 1/4-20 x 1.625 Price: $6.07 |
| 8 | 710-06133 | SCREW M6-1 x .625 Price: $3.08 |
| 9 | 710-08934 | SCREW-AB #12-24 x .625 Price: $2.01 |
| 10 | 710-1233 | SCREW #10-24 x 1.375 Price: $3.95 |
| 11 | 710-3069 | SCREW 1/4-20 x .50 Price: $4.08 |
| 12 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 13 | 712-04081A | HEX NUT W/PATCH Price: $6.49 |
| 14 | 720-05970 | GRIP Price: $5.12 |
| 16 | 725-04393 | HEATED GRIP SWITCH Price: $14.90 |
| 17 | 725P12285 | HEATED GRIP Price: $51.76 |
| 18 | 725P18257 | HARNESS (2S-2HDLT/HG/EFI/EGOV) Price: $45.00 |
| 19 | 729-08608 | EDGE MOUNT ZIP TIE CLIP Price: $8.42 |
| 20 | 731-04894D | LOCK PLATE Price: $4.61 |
| 21 | 731-04896C | CLUTCH LOCK CAM Price: $3.56 |
| 22 | 731-26415 | LENS BEZEL Price: $2.27 |
| 23 | 731P26417 | HEADLIGHT PANEL Price: $54.69 |
| 24 | 732-04219C | CLUTCH SPRING Price: $3.70 |
| 25 | 732-04238B | TORSION SPRING Price: $4.66 |
| 26 | 732-04756 | COMPRESSION SPRING Price: $2.92 |
| 28 | 738-04125 | SHOULDER SCREW Price: $4.08 |
| 29 | 738-04348 | SHOULDER SCREW .437 x 1.345 1/4-20 Price: $3.14 |
| 30 | 738-05149A | SHOULDER SCREW .342X.335X1/4-20 Price: $5.48 |
| 31 | 746P06984 | SELECTION CABLE Price: $4.55 |
